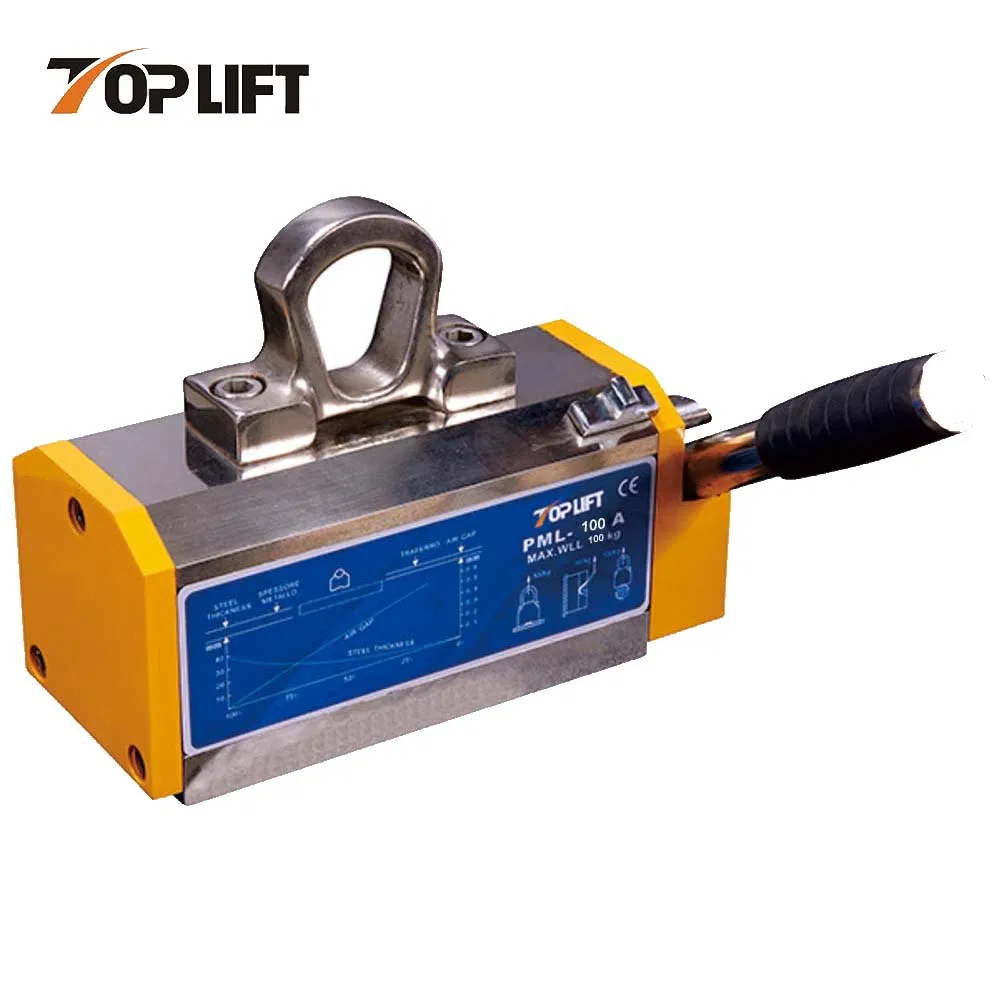

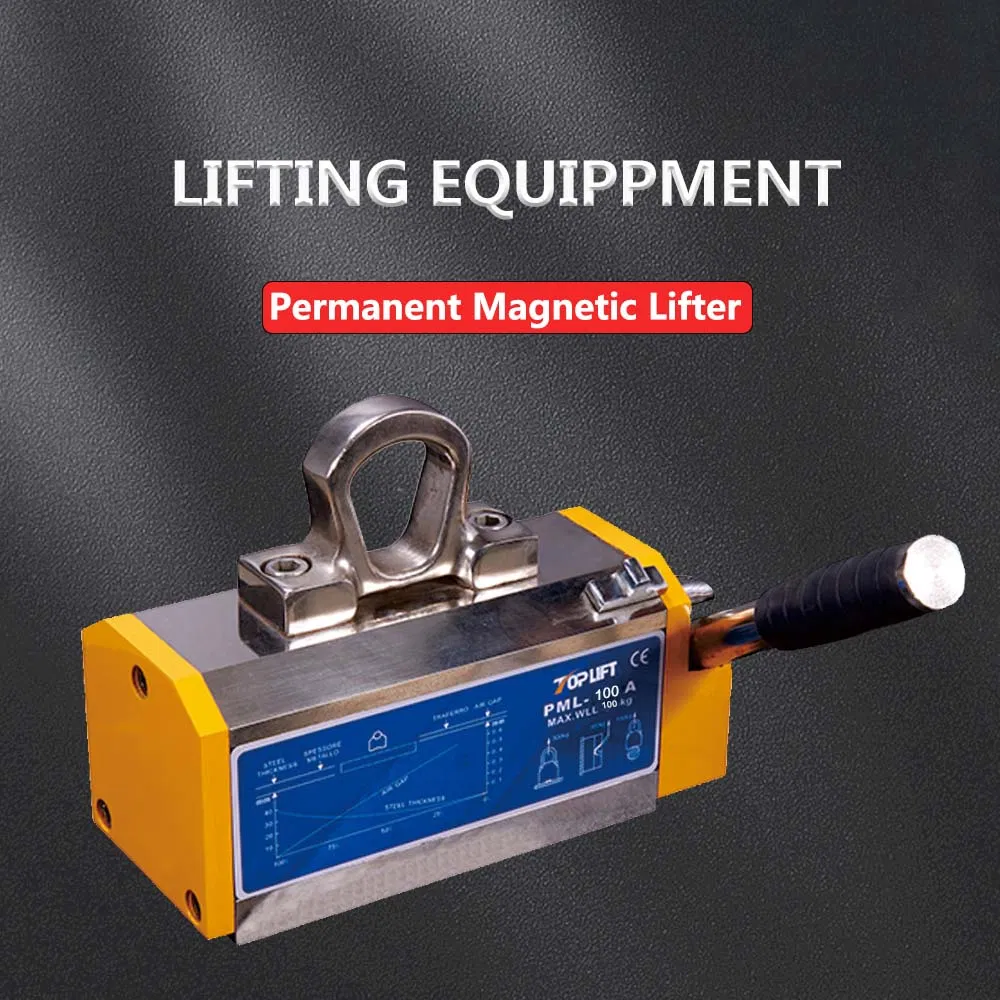

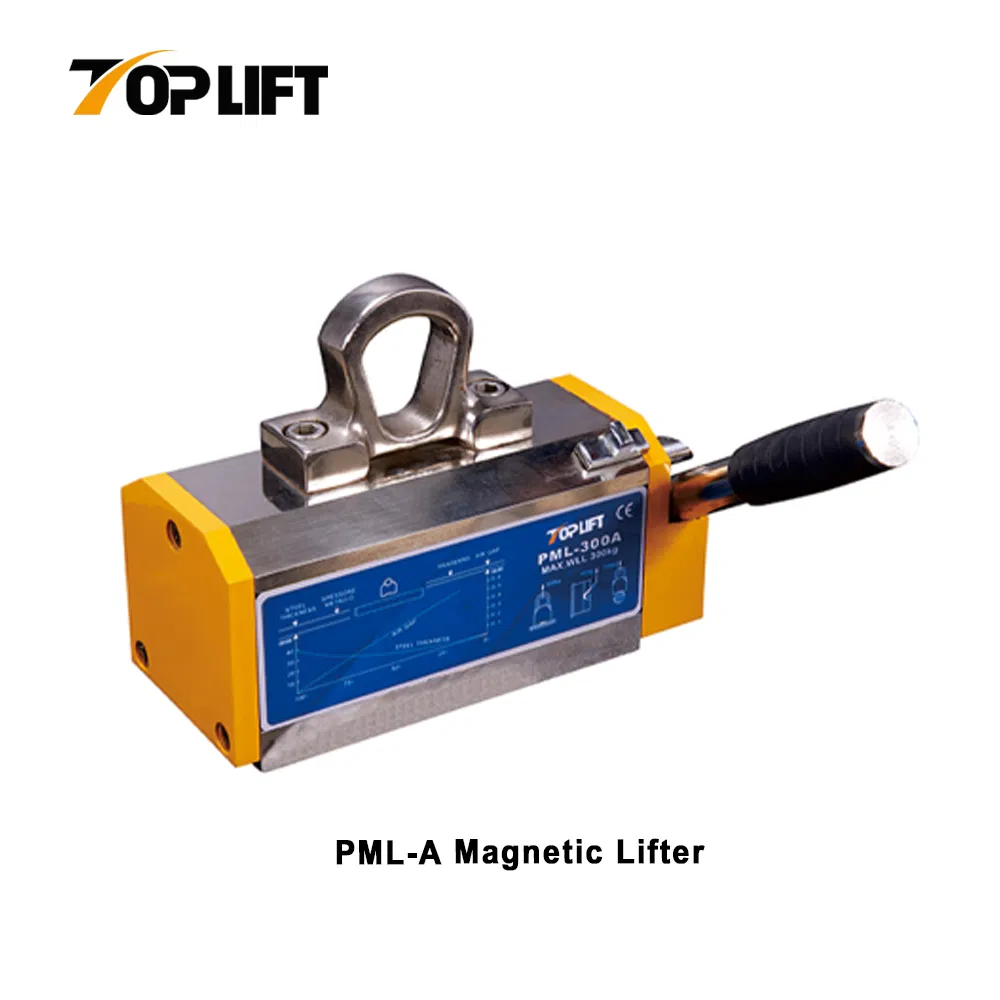

100kg CE Certiified Pml-a Hand Controlled Strong Permanent Magnetic Lifter

Customization:	Available
Warranty:	1 Year
Shape:	Square

100Kg PML-a Strong Permanent Magnetic Lifter

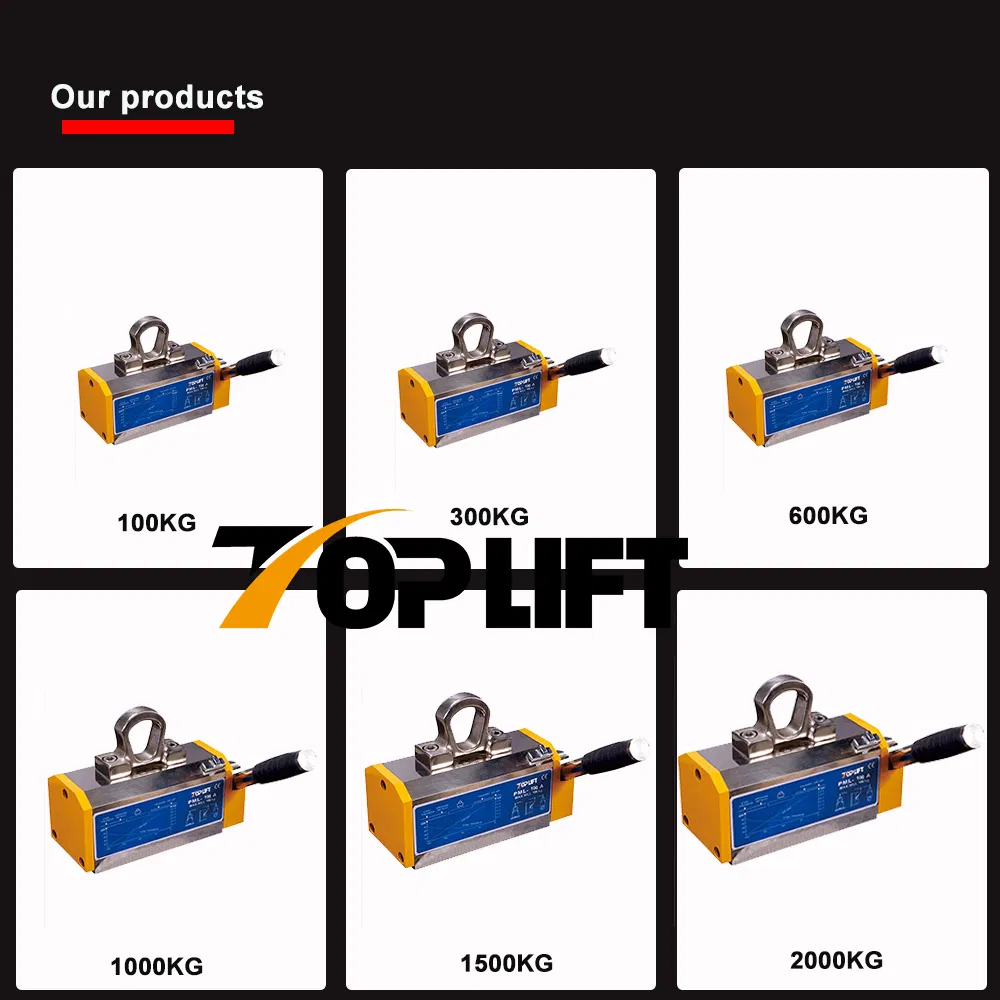

WLL: 100-2000 KGS

Top handling: compact dimensions and low weight
Only small sheet thicknesses required
Safe 2-hand operation required to release the magnet
Guaranteed compliance with a safety factor of 3.5 (3:1 available)
High quality certified devices
Suitable for both flat and round material
Operating temperature range: -10 to +60 ºC

Basic Specifications

Model NO.

PML-100A

Color

Yellow

Rated Lifting Capacity

30kg (Cylindrical)

Standard Capacity

100kg

Operation Temperature

Less Than 80ºC

Transport Package

In Pallet

HS Code

85051110

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

3.500kg

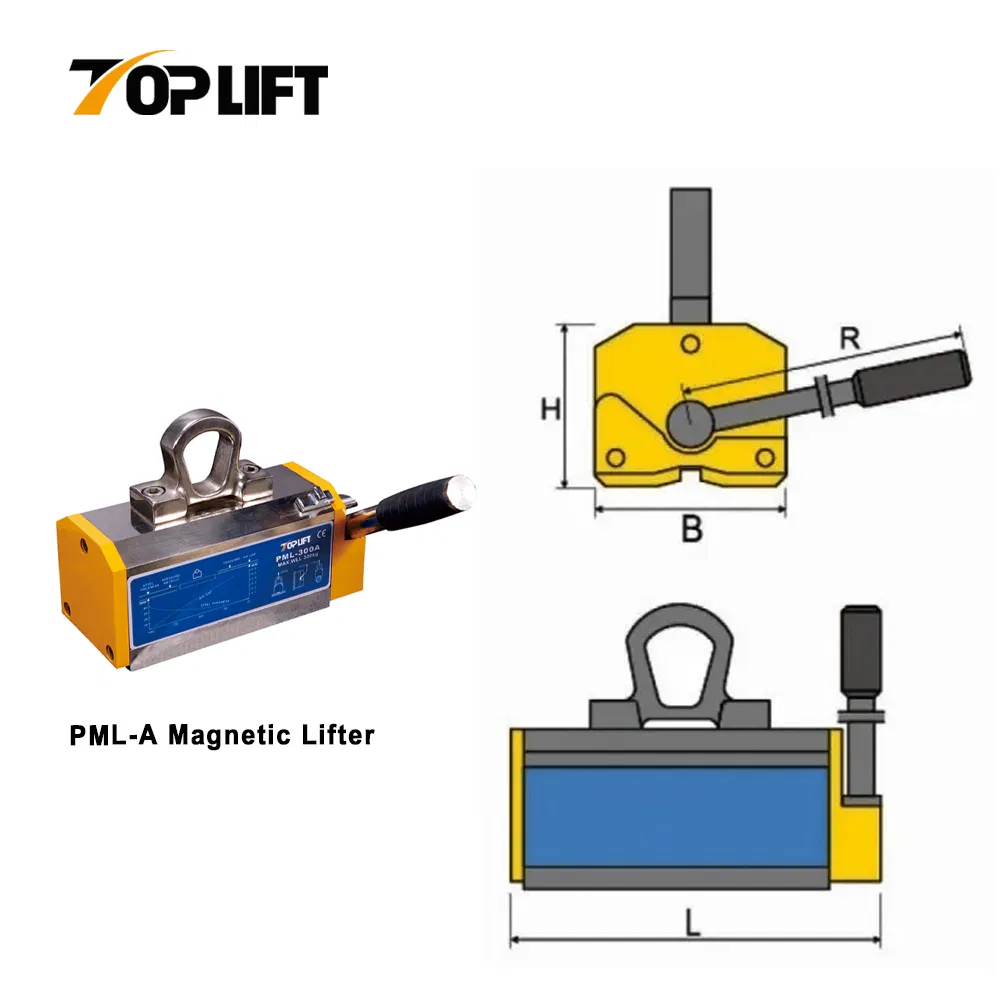

Technical Parameters

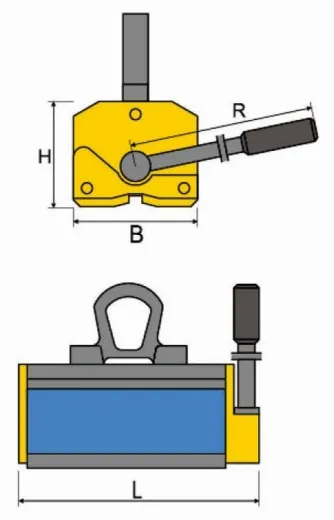

Model	Rated Lifting Capacity (kg)	Max Breakaway Force (kg)	Cylindrical Lifting Capacity (kg)	L (mm)	B (mm)	H (mm)	R (mm)	Op Temperature (ºC)	Weight (kg)
PML-100A	100	300	30	134	60	65	130	<80	3.5

Frequently Asked Questions

What materials is the PML-100A magnetic lifter suitable for?

It is designed for both flat and round steel materials, requiring only small sheet thicknesses for effective operation.

What safety features does this magnetic lifter include?

The device requires a safe 2-hand operation to release the magnet, preventing accidental drops. It also maintains a safety factor of 3.5.

What is the operating temperature range?

The standard operating temperature range is between -10 to +60 ºC, with a maximum limit of less than 80ºC.

How do you ensure the quality of the lifting equipment?

We use high-quality steel, follow standardized production processes, and perform 100% finished product testing. Third-party inspections are also acceptable.

What is the breakaway force of the PML-100A?

The PML-100A has a maximum breakaway force of 300kg, ensuring a high safety margin for its 100kg rated capacity.

What makes this product better than others in the market?

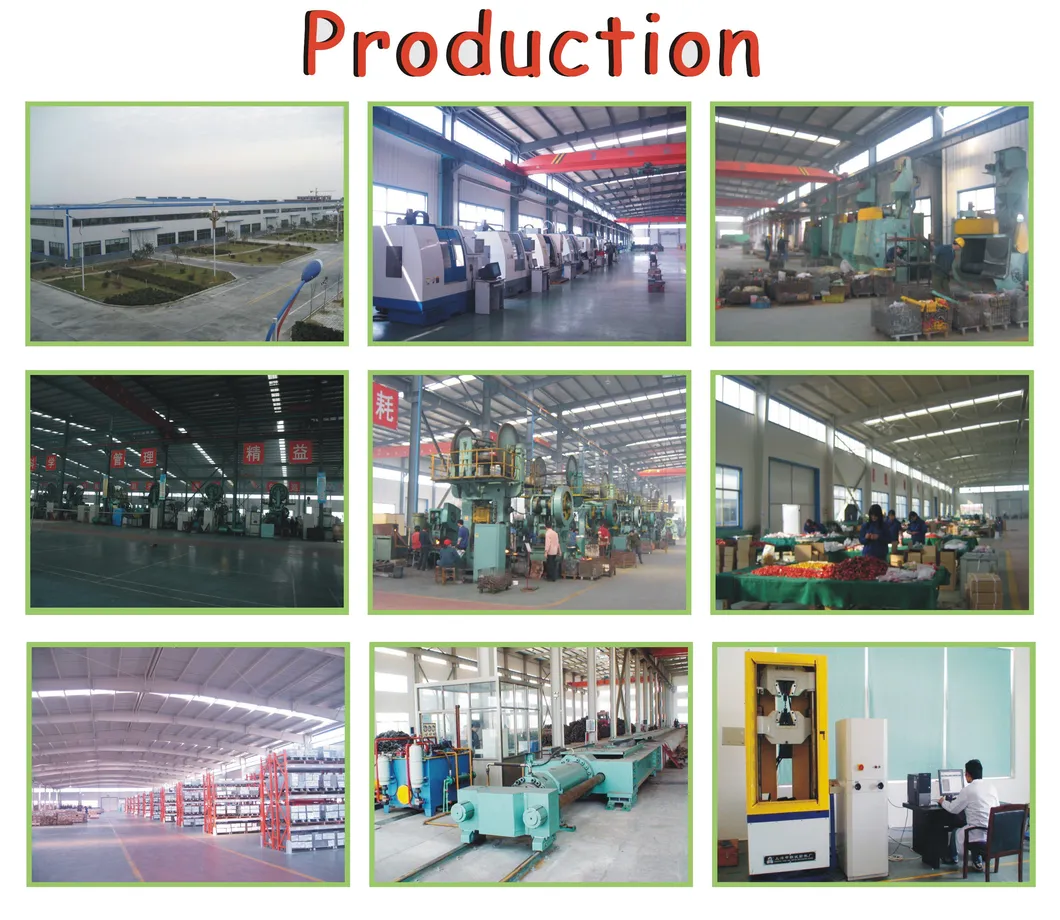

With around 10 years of experience, our products offer high-quality European device standards, numerous patents in rigging hardware, and timely delivery supported by a 3000 sqm workshop.
