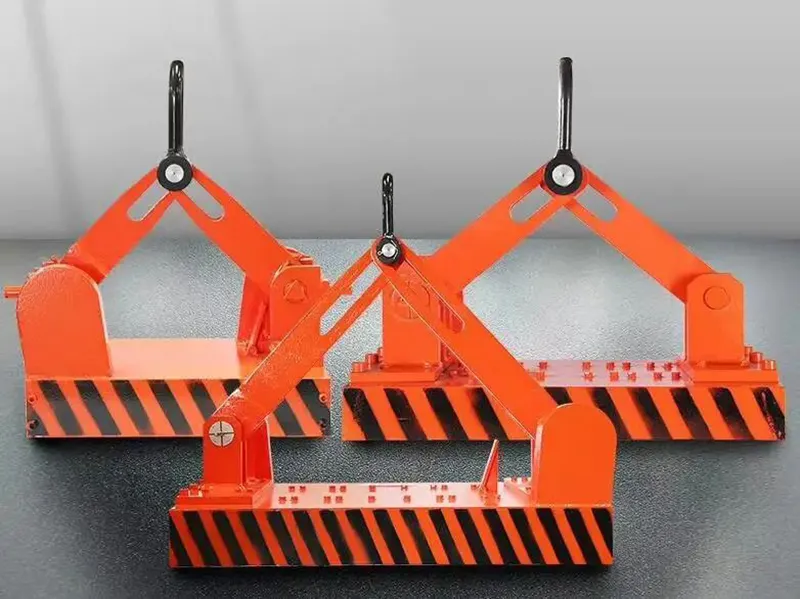

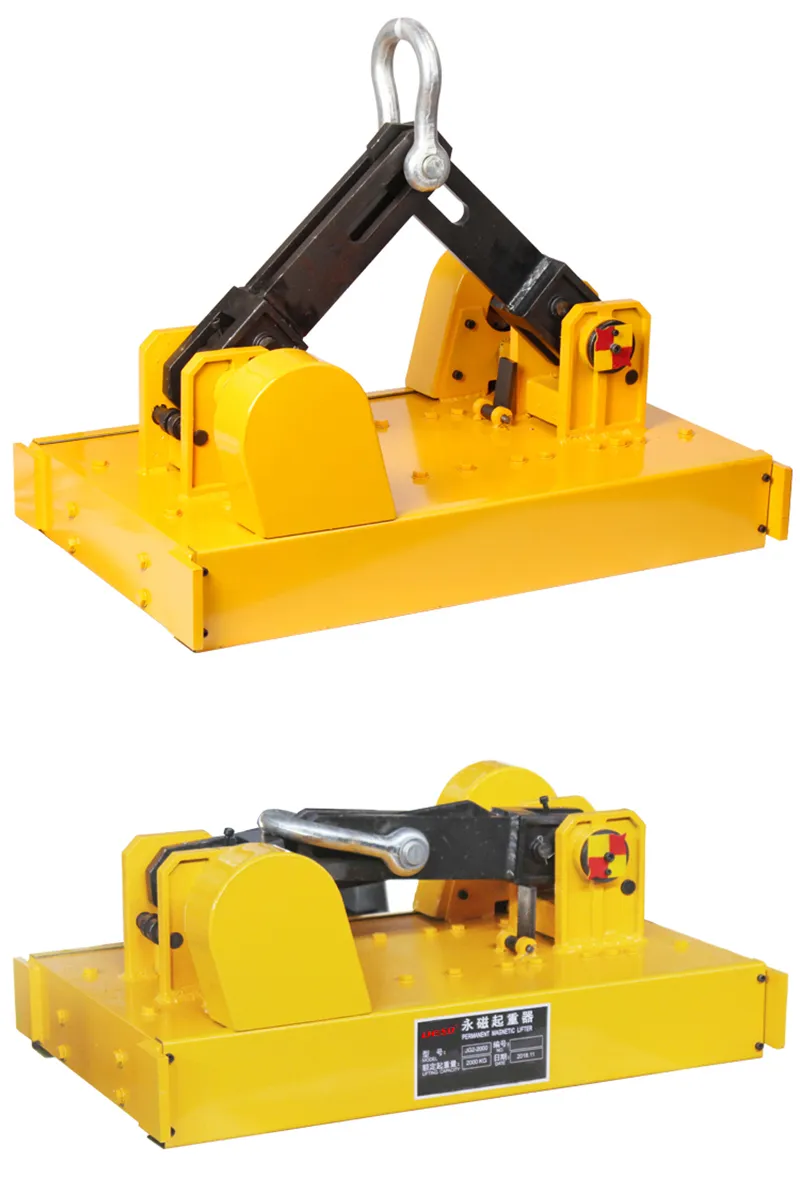

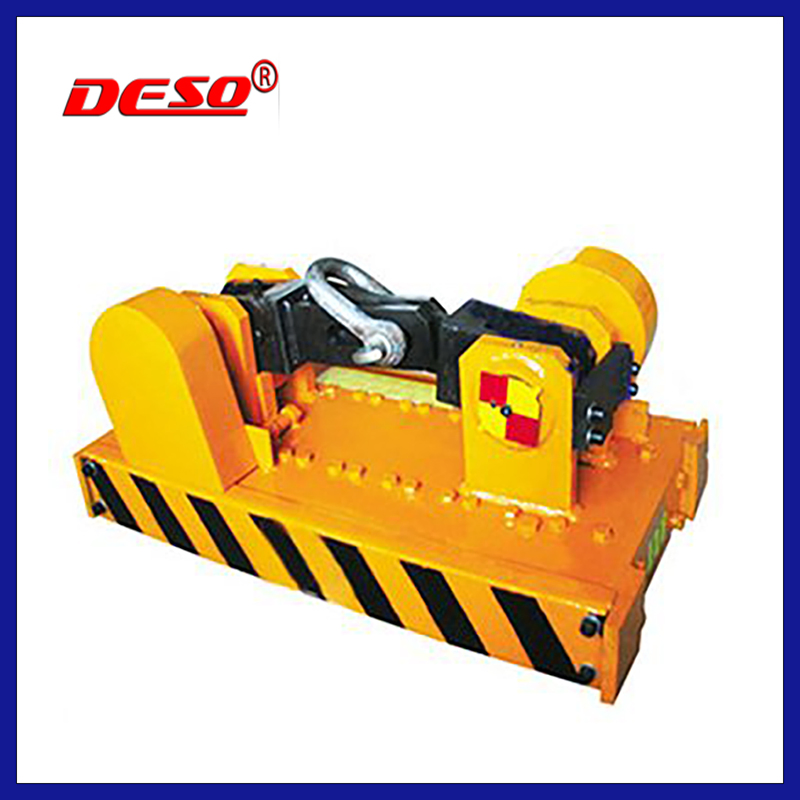

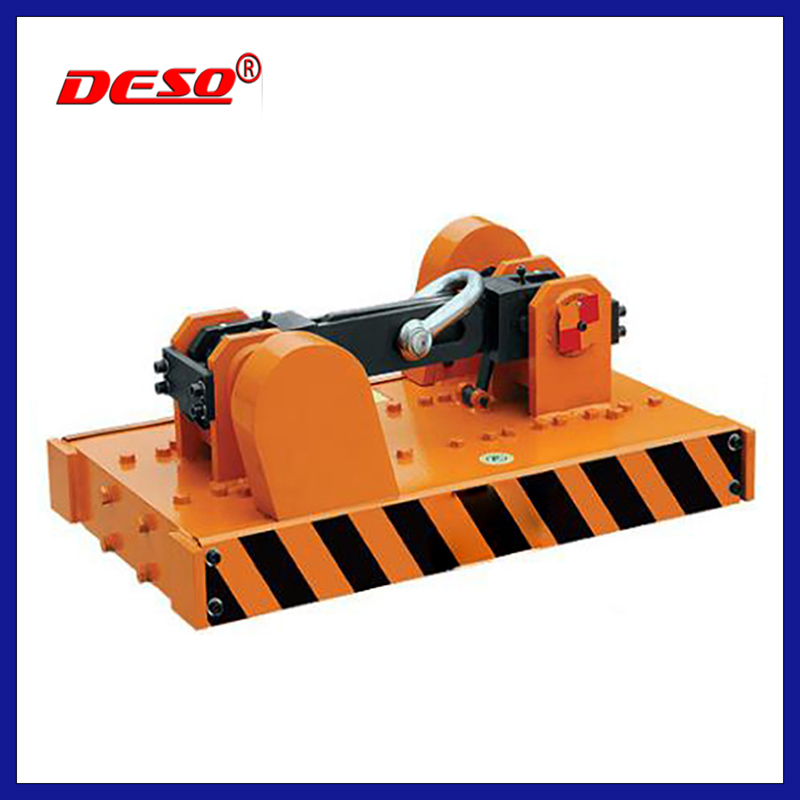

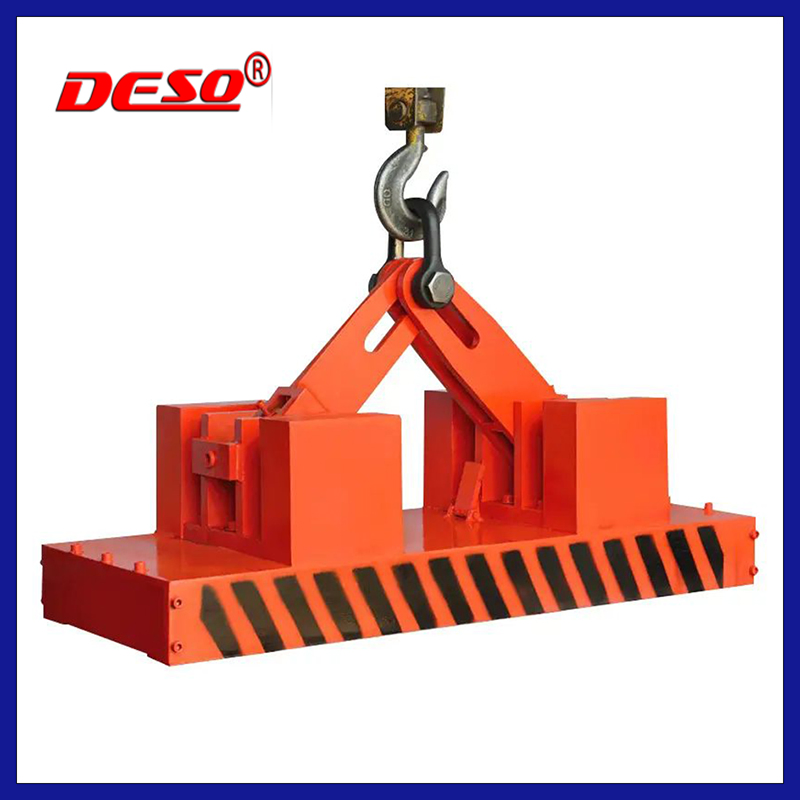

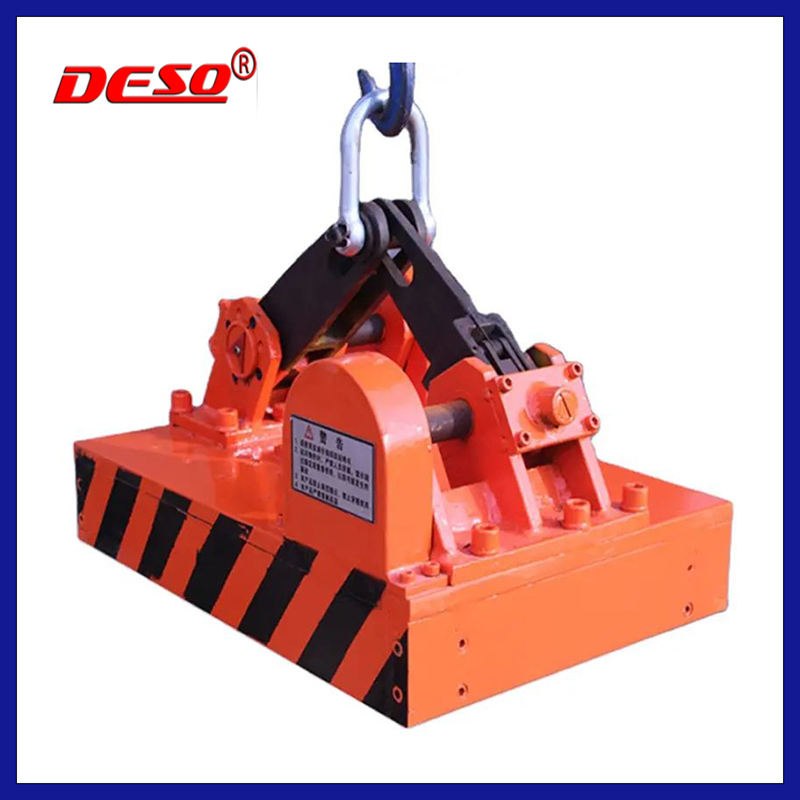

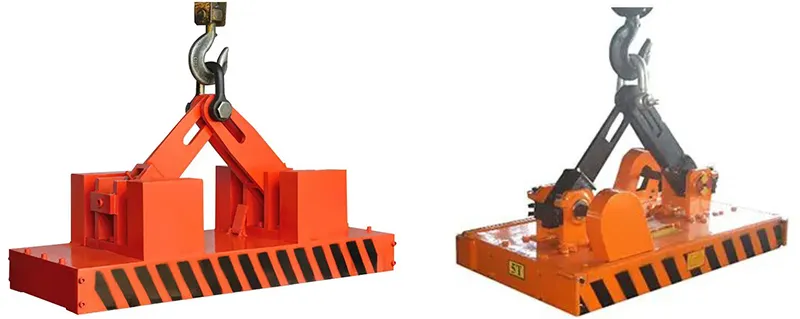

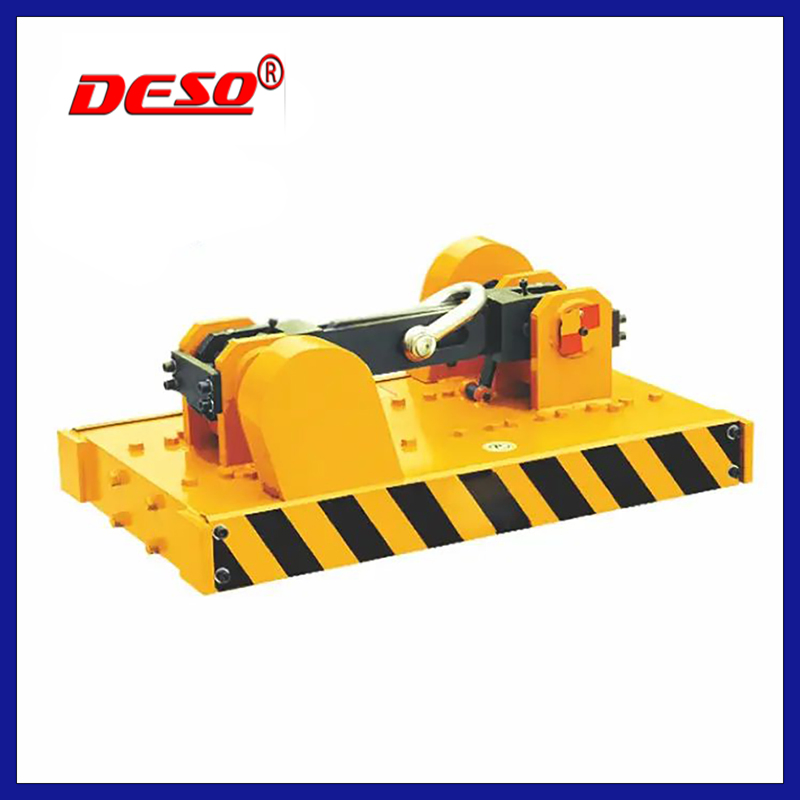

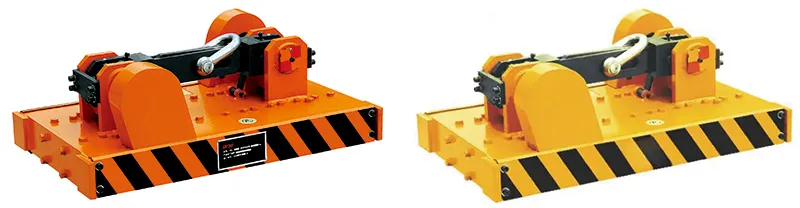

Automatic Permanent Magnetic Lifter
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel. Because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
It is made of high-energy magnetic materials and scientific magnetic circuit principles. It has the characteristics of large suction, compact structure, light weight, easy operation, and safety. It is an ideal energy-saving and more convenient lift than electromagnetic lifts that must be equipped with complex connection devices and backup power supplies.
| Product Details | Specifications |
|---|---|
| Product | Automatic Permanent Magnetic Lifter |
| Lifting capacity | 600kg - 5t |
| Work Model | Pull push |
| Material | Permanent neodymium magnets |
| Safety factor | 3 : 1 |
| Application | Shipbuilding, engineering machinery, mould producing industry |

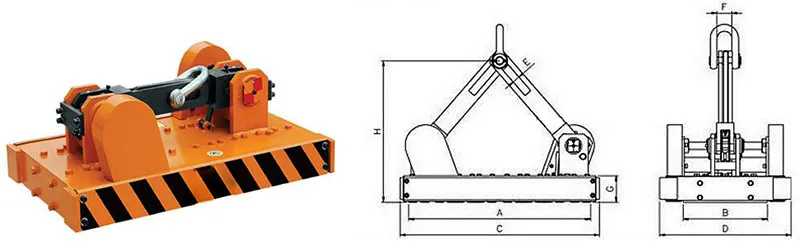

| Model | Rated Capacity (kg) | Max Pull Force (kg) | Weight (kg) |
|---|---|---|---|
| QZ2-0.6 | 600 | 2100 | 145 |
| QZ2-1 | 1000 | 4000 | 195.8 |
| QZ2-1.5 | 1500 | 5500 | 240.4 |
| QZ2-2 | 2000 | 7000 | 270 |
| QZ2-3 | 3000 | 10500 | 430 |
| QZ2-5 | 5000 | 15000 | 490 |

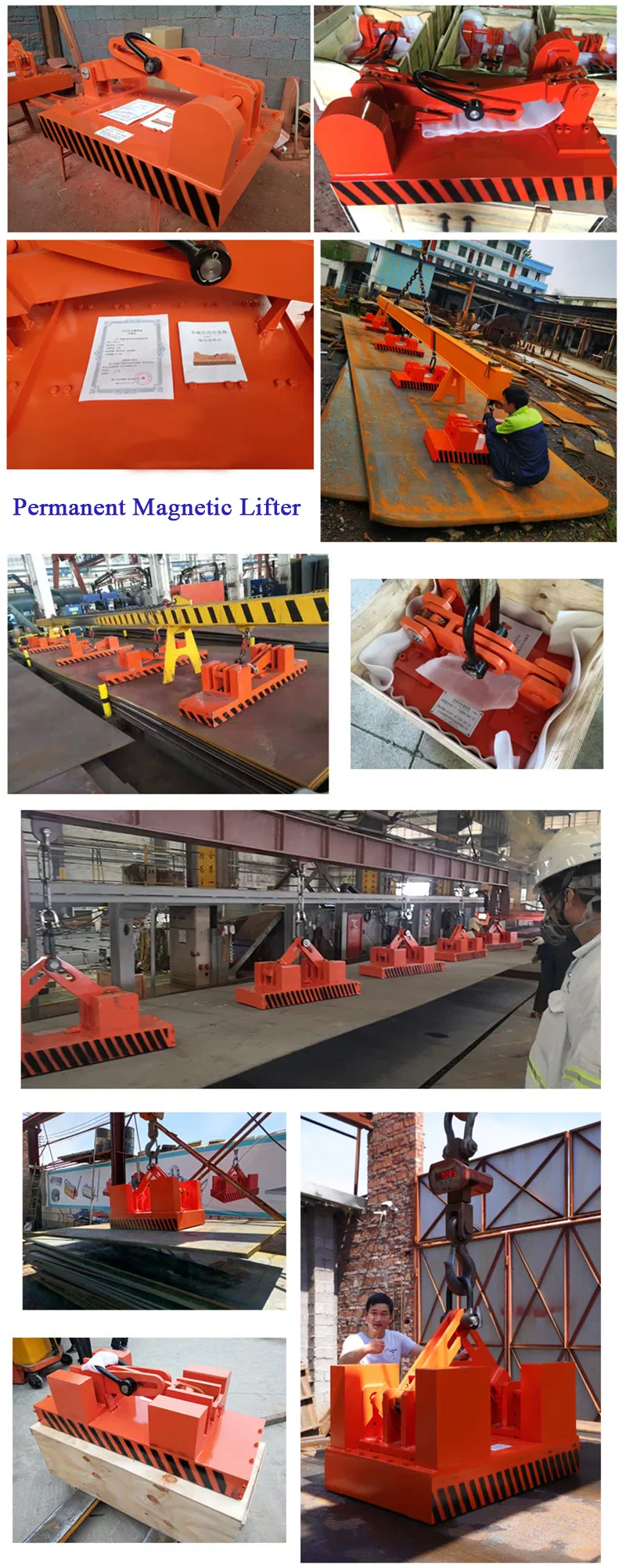

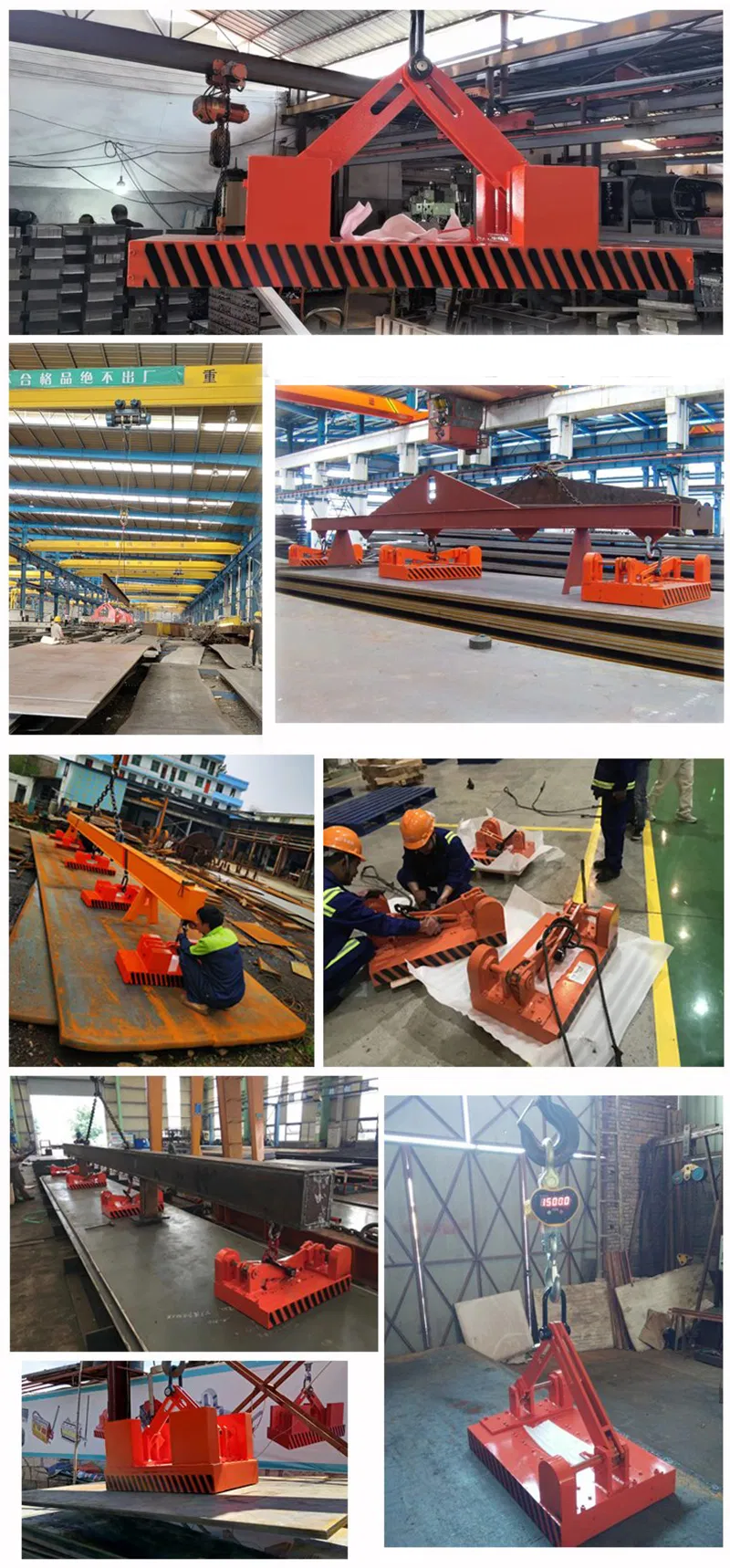

Widely used for lifting flat mechanical parts, steel and other permeability magnetic material in mechanical manufacturing, molding industries, and warehouses.
