Safety Factor
2:1, 2.5:1, 3:1
Material
NdFeB Magnet + Steel Body
Temperature
Lower Than 80°C
Package Size
30.00cm * 50.00cm * 20.00cm
Packing Type
Wooden Packing

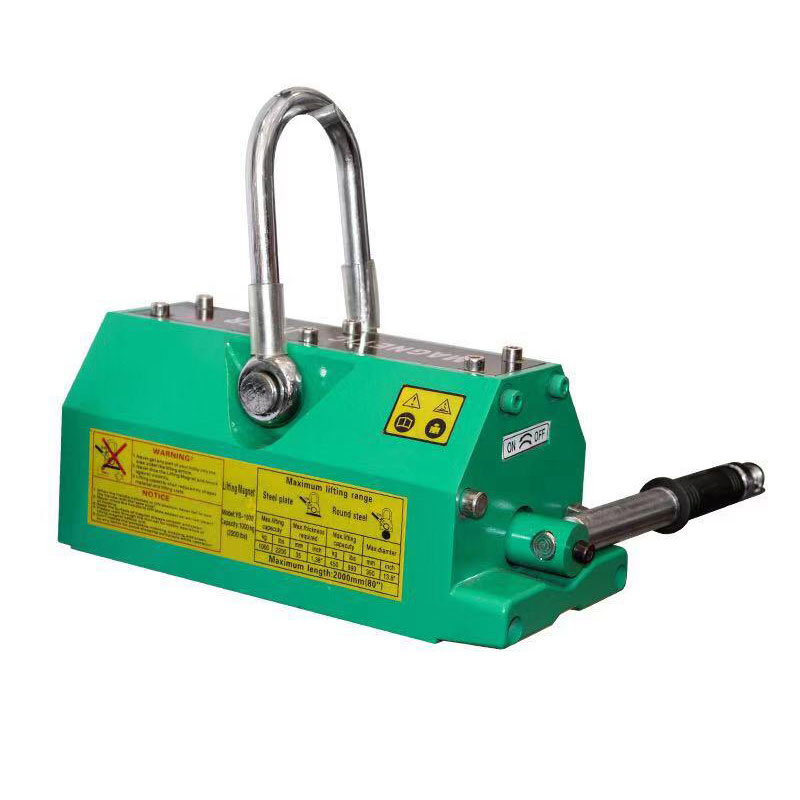

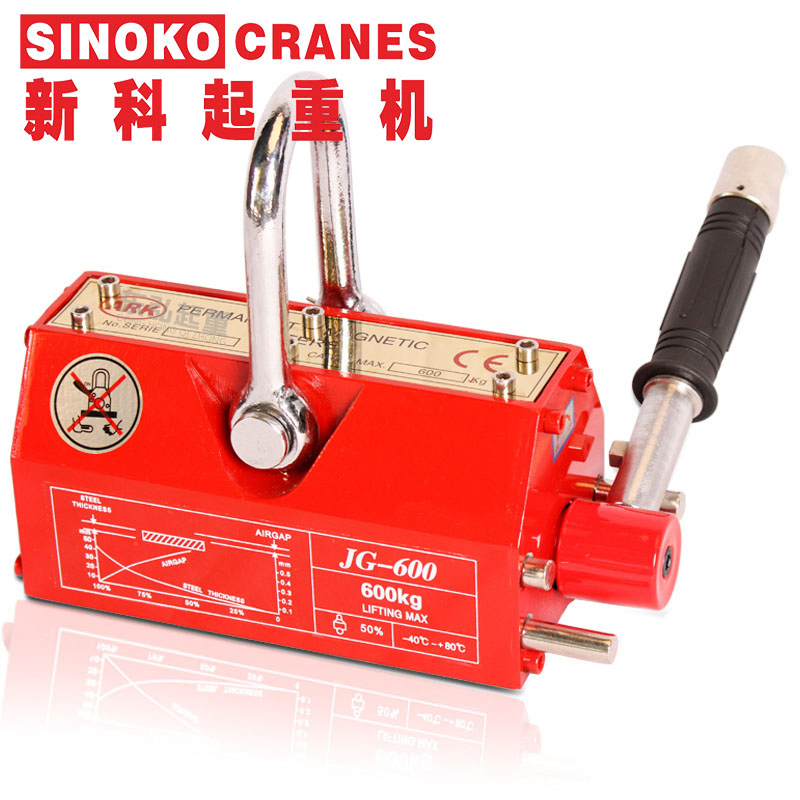

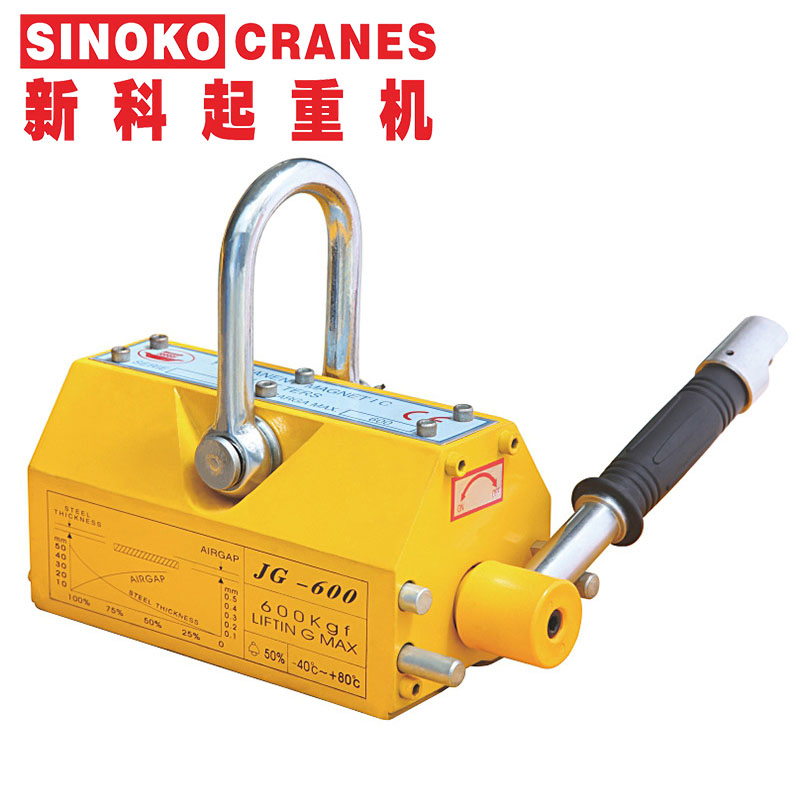

Permanent manual magnetic lifters have strong magnetic path produced by NdFeB magnet. It has the features of strong attraction, smaller volume, lighter weight, easy and safe to operate, long-period effort and without power supply. It is widely used for lifting ferrous materials such as steel plates, heavy block and castings.
The lifting capacity of permanent magnetic lifter is also determined by material, thickness, and surface quality of load.
- Widely used as lifting tools in factory terminals and warehouses.
- Safe and reliable, easy to operate, can be used single or combined.
- High-performance permanent magnet ensures power and high safety.
- "V" style bottom design allows for lifting both round steel and steel plates.
- Maintains constant magnetism without electricity; residual magnetism is negligible.
- Maximum pull-off force is 3.5 times the rated lifting force.
- High resistance to demagnetization for stable performance.

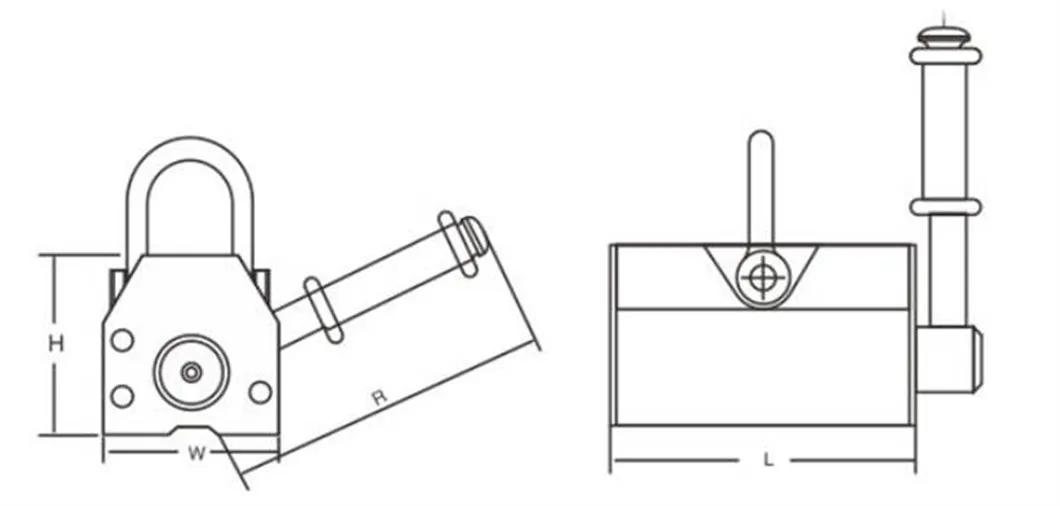

| Model |
Lifting Capacity (kg) |
Dimension (mm) |
Net Weight (kg) |
| Steel Plate |
Cylindrical |
Length |
Width |
Height |
Handle |
| PML-100 | 100 | 50 | 92 | 62 | 69 | 155 | 3.2 |
| PML-200 | 200 | 100 | 130 | 65 | 69 | 155 | 5.4 |
| PML-400 | 400 | 200 | 160 | 95 | 95 | 200 | 11 |
| PML-600 | 600 | 300 | 210 | 120 | 120 | 230 | 20 |
| PML-1000 | 1000 | 500 | 260 | 150 | 140 | 255 | 40 |
| PML-2000 | 2000 | 1000 | 400 | 170 | 170 | 320 | 74 |
| PML-3000 | 3000 | 1500 | 440 | 170 | 170 | 380 | 105 |
| PML-5000 | 5000 | 2500 | 600 | 230 | 215 | 600 | 248 |
♦
Product Advantages & Scenarios
The products are widely used in mold, shipbuilding, bridge construction, railway, production line, logistics, machinery manufacturing, wind power, and other special purposes. With certifications such as ISO and CE, these lifters meet high international standards.
Used for lifting steel plates and round steel. Due to their light weight and powerful suction, these magnetic lifters are widely applied in ship engineering, warehouses, transportation, and machinery manufacturing.
?
Frequently Asked Questions
Q1: Does the magnetic lifter require an external power supply?
A: No, it is a permanent magnetic lifter that utilizes high-performance NdFeB magnets, meaning it works without electricity.
Q2: Can this device lift cylindrical or round steel objects?
A: Yes, the bottom of the lifter features a "V" style design, making it suitable for both flat steel plates and round steel.
Q3: What is the safety factor of these lifters?
A: We offer safety factors of 2:1, 2.5:1, and 3:1 depending on the specific model and requirements.
Q4: What is the maximum operating temperature?
A: The lifter is designed to operate efficiently at temperatures lower than 80°C.
Q5: How strong is the pull-off force?
A: The maximum pull-off force can reach up to 3.5 times the rated lifting capacity, ensuring high operational safety.
Q6: What capacities are available?
A: Our standard models range from 100kg (PML-100) up to 5000kg (PML-5000) lifting capacity.
