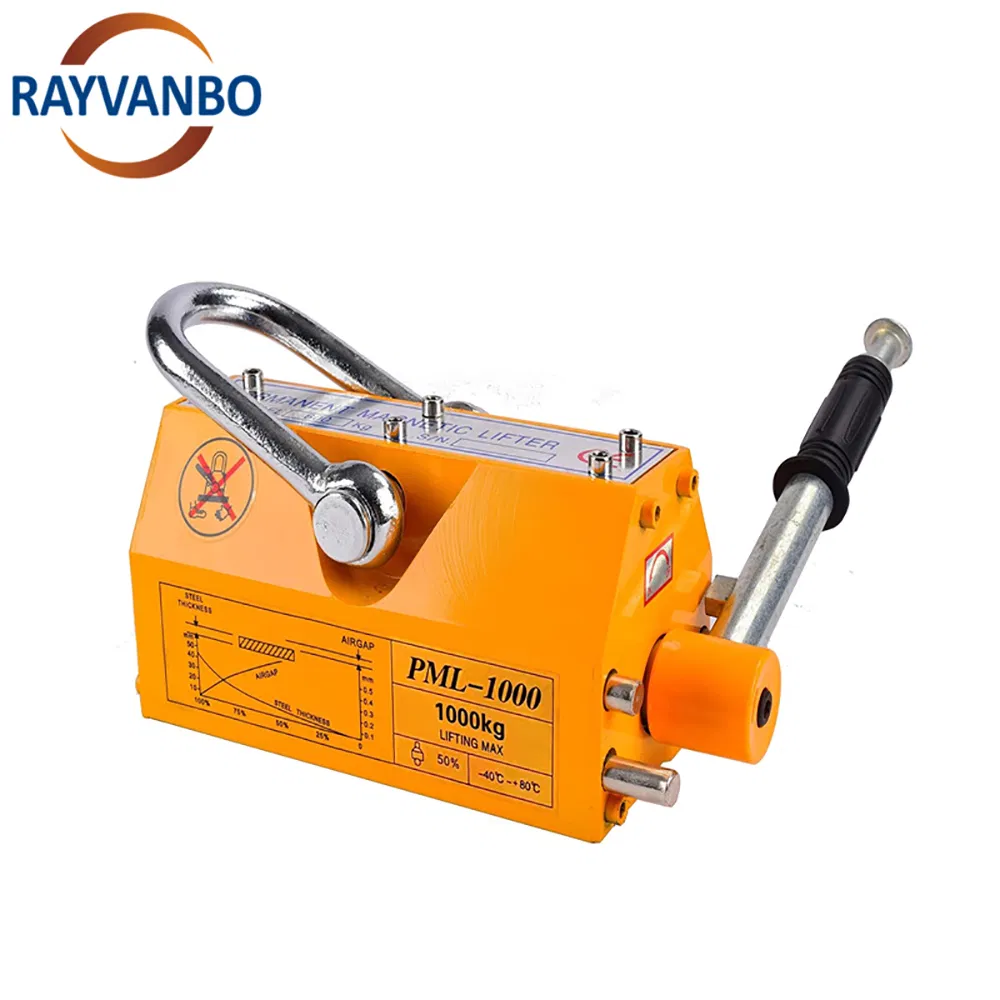

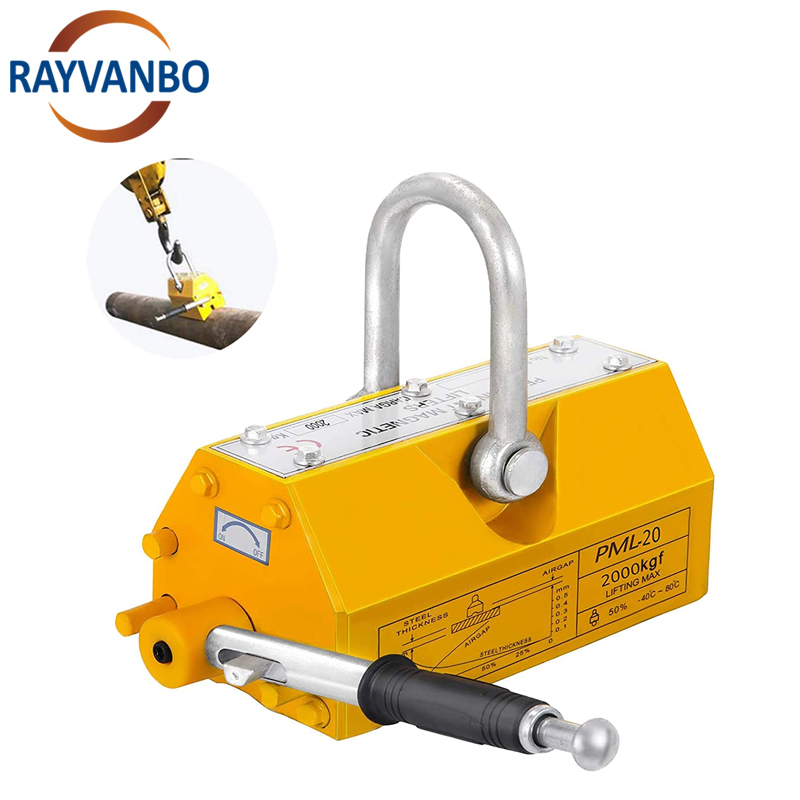

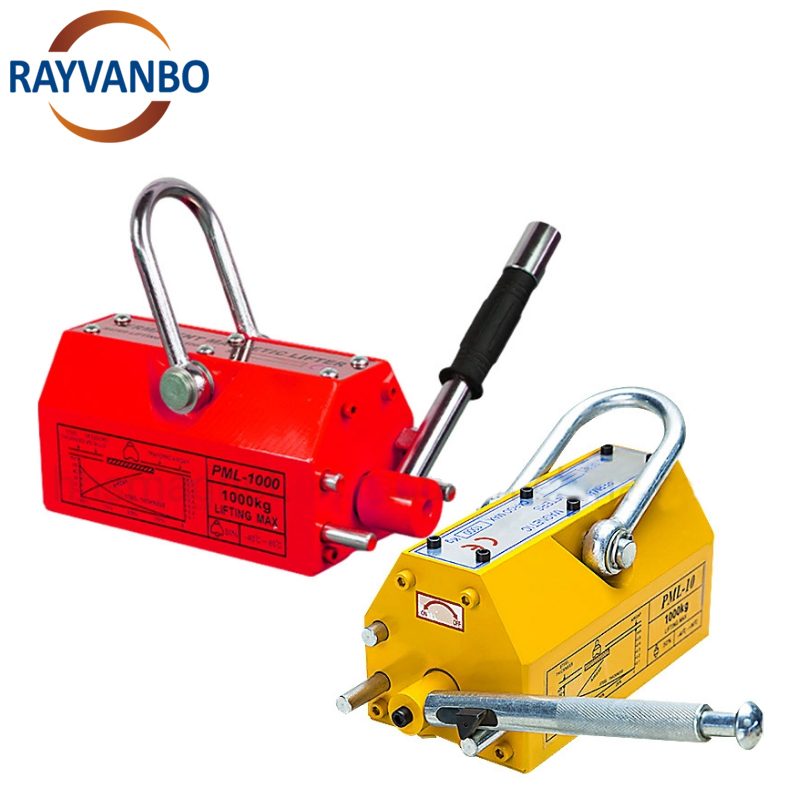

Brief Introduction for PML:

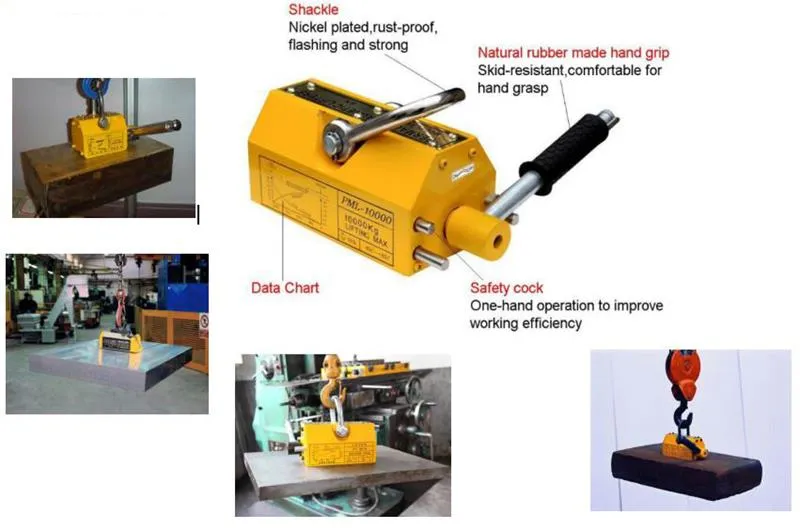

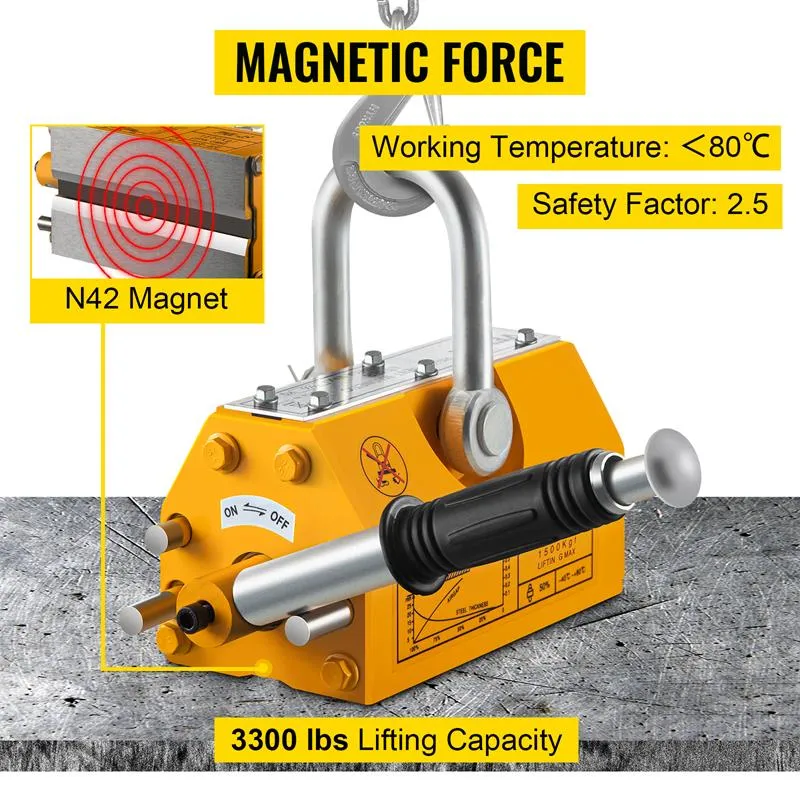

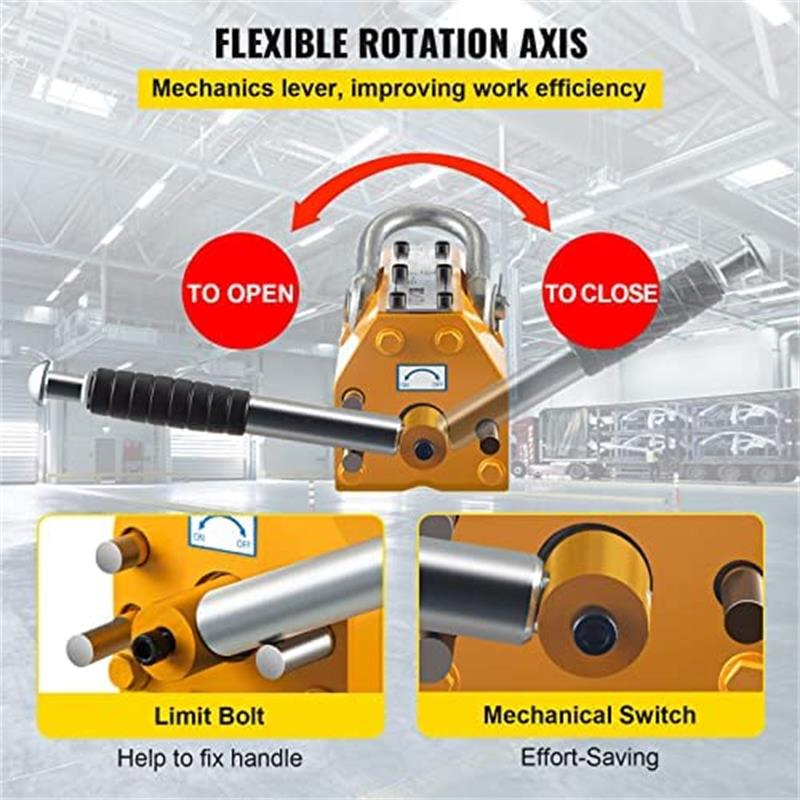

The Permanent Magnetic Lifter significantly improves magnetic steel material clamping efficiency. Using high-performance rare earth NdFeB as the core, the suction or release of the workpiece is controlled by rotating the manual handle. This equipment is widely utilized in machinery factories, mold factories, and other machining fields as a reliable magnetic fixture.
Magnetic Lifters feature a strong magnetic path that provides permanent power without the need for an external electricity supply. They are characterized by strong attraction, compact volume, lightweight design, and high safety standards.
| Model | Lifting Capacity (kg) | Dimension (mm) | Net Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| Steel Plate | Cylindrical | Length | Width | Height | Handle | ||
| PML-100 | 100 | 50 | 92 | 62 | 69 | 155 | 3.2 |
| PML-200 | 200 | 100 | 130 | 65 | 69 | 155 | 5.4 |
| PML-400 | 400 | 200 | 160 | 95 | 95 | 200 | 11 |
| PML-600 | 600 | 300 | 210 | 120 | 120 | 230 | 20 |
| PML-1000 | 1000 | 500 | 260 | 150 | 140 | 255 | 40 |
| PML-1500 | 1500 | 750 | 340 | 150 | 140 | 255 | 48 |
| PML-2000 | 2000 | 1000 | 400 | 170 | 170 | 320 | 74 |
| PML-3000 | 3000 | 1500 | 440 | 170 | 170 | 380 | 105 |
| PML-5000 | 5000 | 2500 | 600 | 230 | 215 | 600 | 248 |
