Basic Information
Model NO.:MH5t-16+4.5+4.5m
Certification:CE
Condition:New
Max Lifting Weight:<20t
Max Lifting Height:15-20m
Type:Common Gantry Crane
Main Girder:Single Girder
Capacity:5t
Work Duty:M5
Lifting Speed:4m/Min
Traveling Speed:60m/Min
Temperature:-40 to +40
Product Description

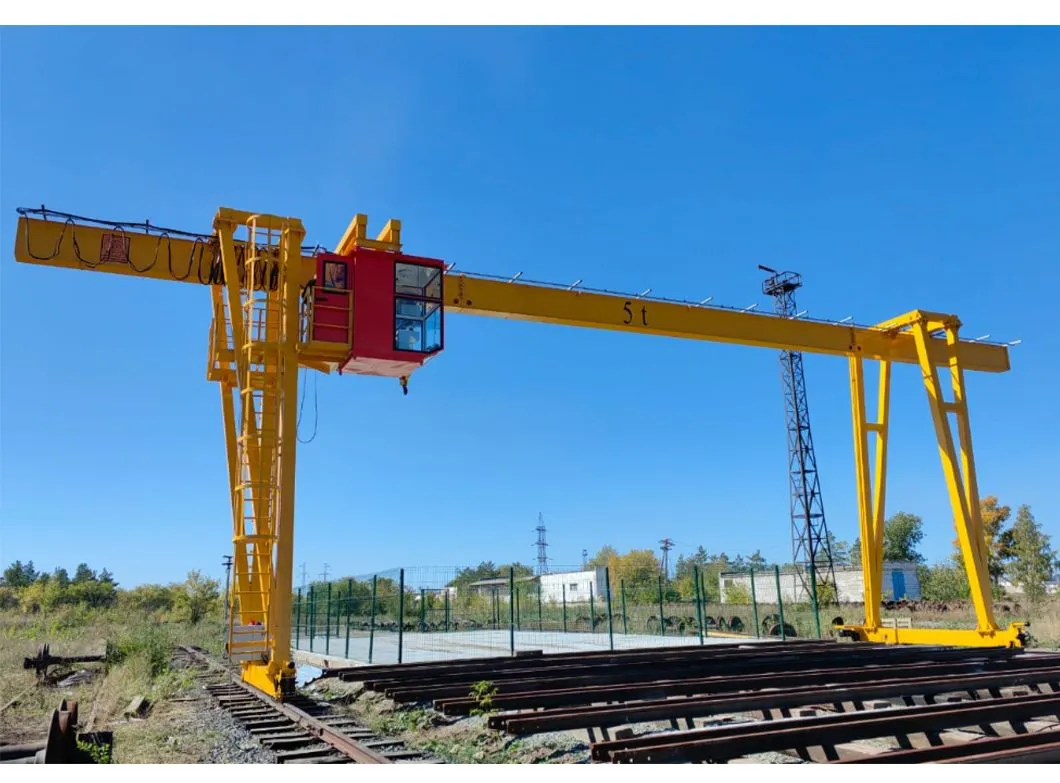

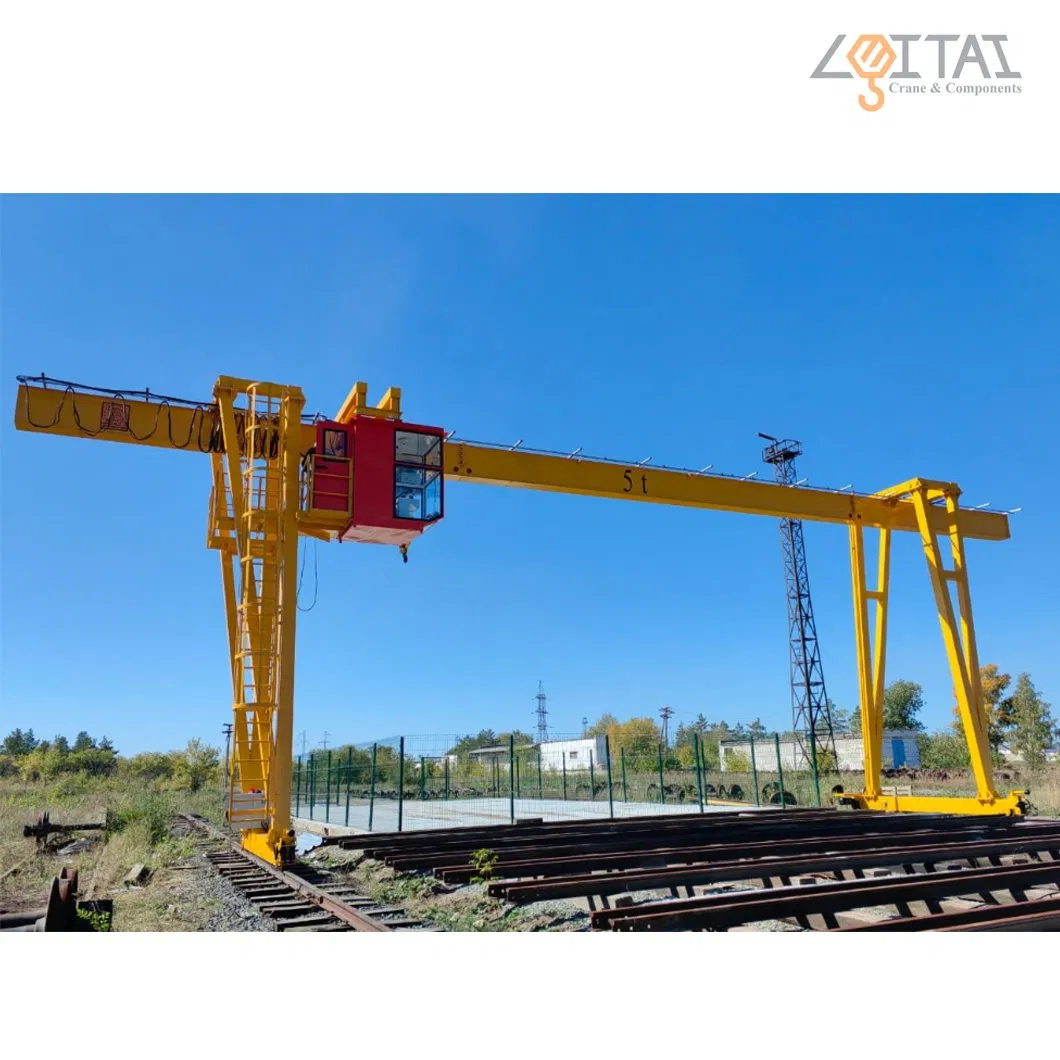

Our single beam gantry crane is a versatile and cost-effective lifting solution designed for various indoor and outdoor applications. It features a single main beam supported by two legs, creating a clear span for material handling. This configuration allows for efficient movement of loads across a wide area, making it ideal for tasks requiring both horizontal and vertical movement.
Custom single girder gantry cranes are available with capacities up to 20 tons and spans up to 31.5 meters to meet specific demands.
Core Advantages
⚙️
Simple & Compact
Easy to install and maintain, even in space-constrained environments.
💰
Cost-Effective
Offers high lifting capacity at a highly competitive price point.
🛠️
Durable Build
Built with high-quality steel for long-lasting performance and reliability.
🛡️
Safety First
Equipped with overload protection, limit switches, and emergency stops.
Design Features
Design Code: Follows FEM, CMAA, ISO EN, BS, and GB standards.
Hoist: Compact structure, smooth operation, and accurate positioning.

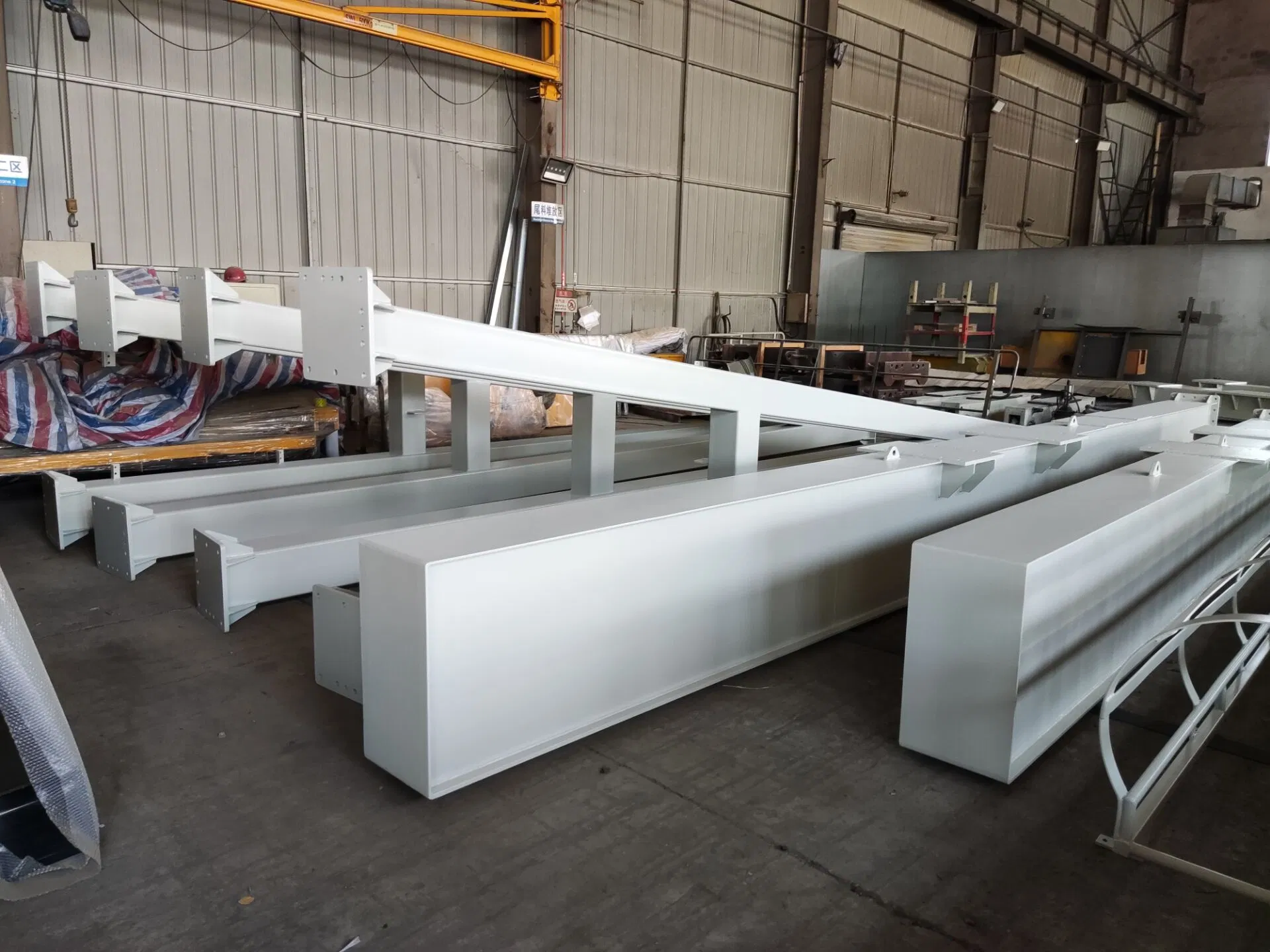

Girder: Uses Q355B steel (ISO EN S355). Welding follows ISO 15614 and AWS D14.1 standards.

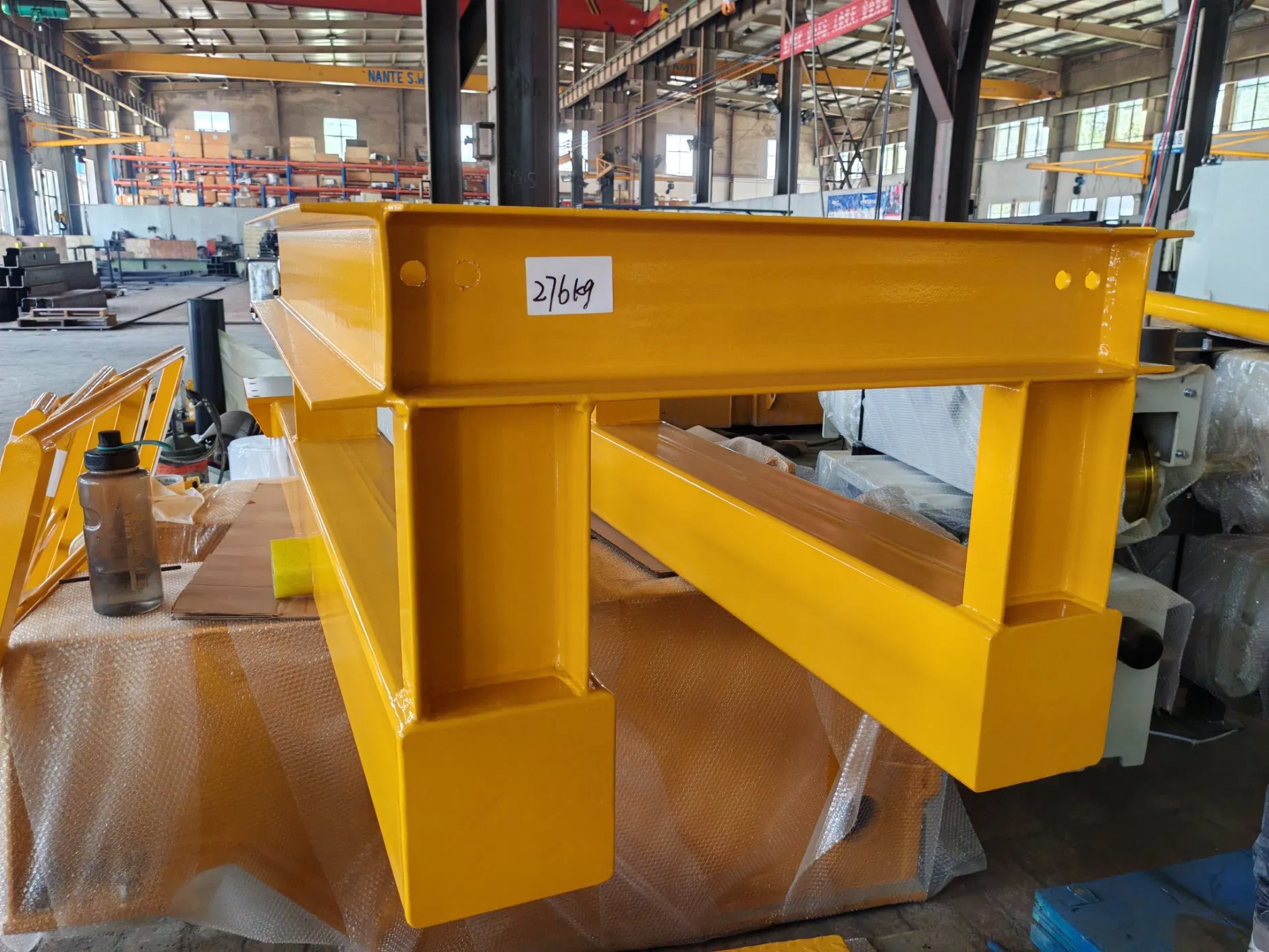

End Carriage: Direct driving design with high efficiency and durable alloy steel wheels.
Gear Motor: IP55, F insulation class, overheat protection, and electromagnetic brake.
Control Panel: IEC standard, IP55 powder-coated enclosure, and international brand inverters.
Safety Protection: Includes load cell overload limits, up/down position limits, and phase sequence relays.
Anti-corrosive: Shoot blasting to SA2.5 class, rich zinc epoxy primer, and polyurethane topcoat.
Application Scenarios
This gantry crane is ideal for:
- Outdoor Storage Yards: Efficient loading/unloading in open-air facilities.
- Workshops & Factories: Streamlining material handling and workflow.
- Assembly Lines: Providing precise and controlled lifting capabilities.
- Maintenance & Repair: Facilitating the movement of heavy equipment.
- Construction Sites: Adapting to mobile material handling needs.
Inquiry Questionnaire
| No. |
Description |
Requirement Details |
| 1 | Type | Box type, Truss type or Rubber tired |
| 2 | Lifting Capacity (t) | Specify tonnage |
| 3 | Span (m) | Specify distance between rails |
| 4 | Lifting Height (m) | Under hook height |
| 5 | Work Duty Grade | FEM/ISO standard required |
| 6 | Control Model | Cabin, Pendent or Remote control |
| 7 | Power Supply | V, HZ, Phase |
| 8 | Site Conditions | Outdoor or Indoor environment |

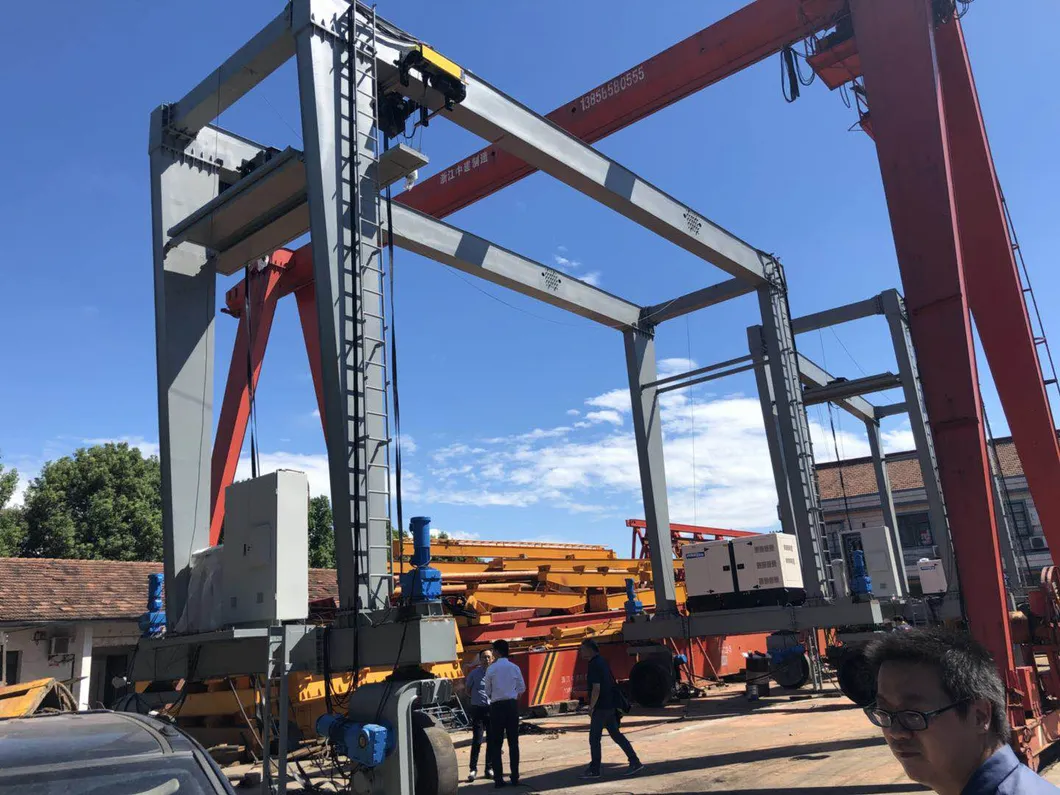

Product Gallery
Frequently Asked Questions
Q: What is the maximum capacity of your single girder gantry cranes?
A: While the standard model shown is 5t, we provide custom configurations that support up to 20 tons.
Q: Can this crane operate in extreme cold environments?
A: Yes, our cranes are designed to operate reliably in temperatures ranging from -40°C to +40°C.
Q: What international standards do your cranes follow?
A: Our designs comply with FEM, CMAA, ISO EN, BS, and GB standards to ensure global quality and safety.
Q: What are the primary safety features included?
A: The crane includes overload limit switches, emergency stop buttons, cross and long travel limit switches, and overheat protection.
Q: Is the paint finish resistant to outdoor weather?
A: Yes, we use a multi-layer coating system including rich zinc epoxy primer and a polyurethane topcoat for superior anti-corrosive protection.
Q: What control options can I choose from?

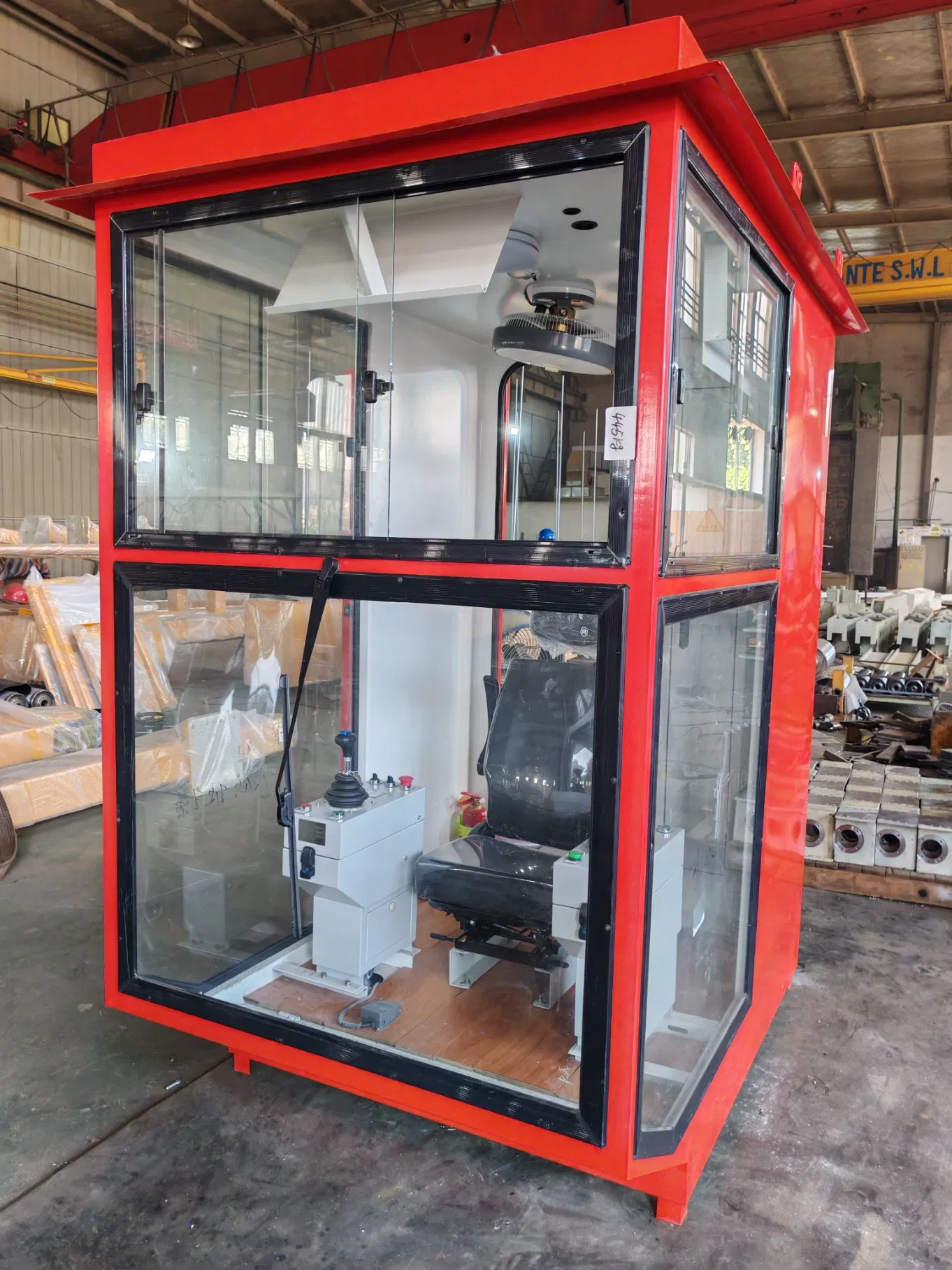

A: We offer pendent control, remote radio control, and cabin control options based on your operational needs.
