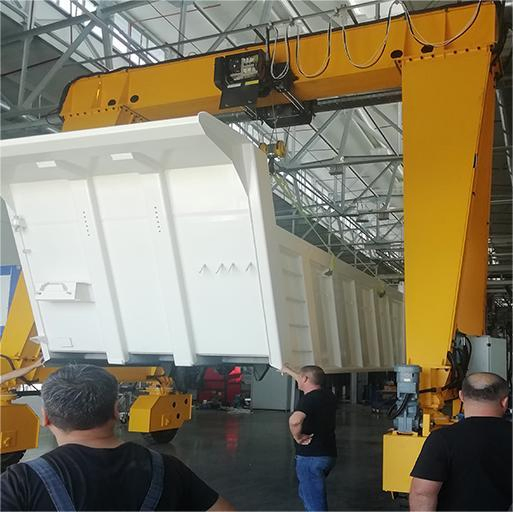

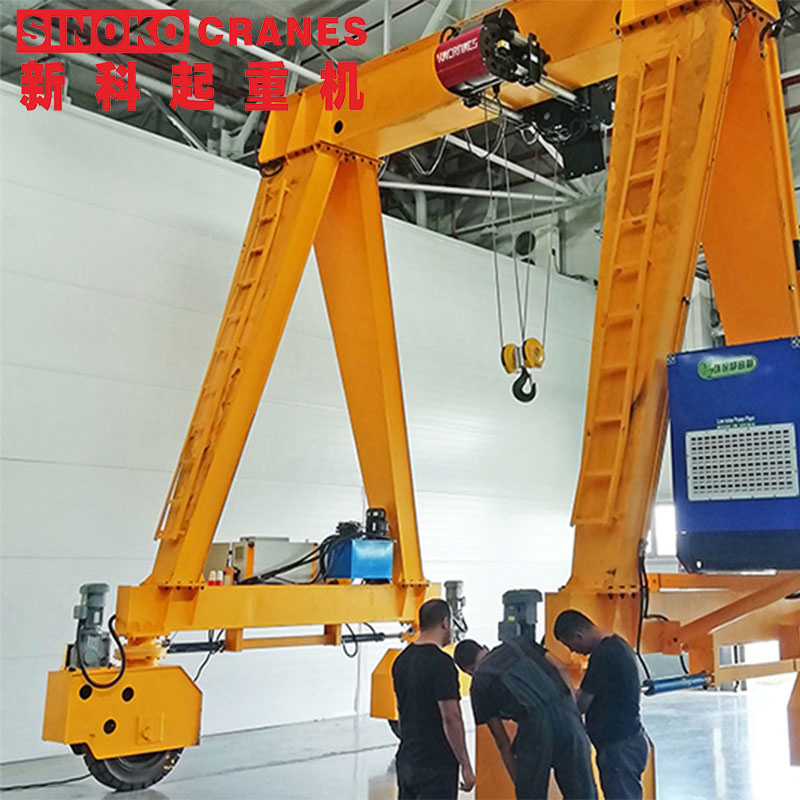

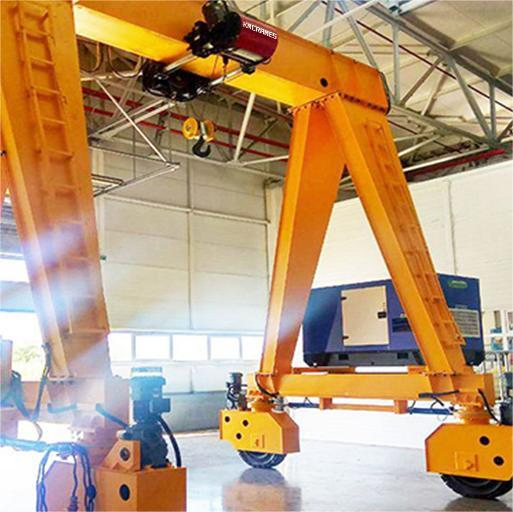

Portable Movable Rubber Tyre a Frame Mini Gantry Crane 10 Ton

1 / 5

Portable Movable Rubber Tyre a Frame Mini Gantry Crane 10 Ton

Customization:	Available
After-sales Service:	Site Installation & Engineer Maintenance Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.

Gantry crane

Certification

CE, ISO9001, EAC

Condition

New

Lifting Weight

20-50t

Lifting Height

25-30m

Operation Form

Remote Control

Main Girder Form

Single Girder

Wheel

Rubber Tyre

Work Duty

M3-M5

Protection Level

IP45/55/65

Power Supply

Diesel Genset Mounted

Production Capacity

200 Sets/Month

Product Description

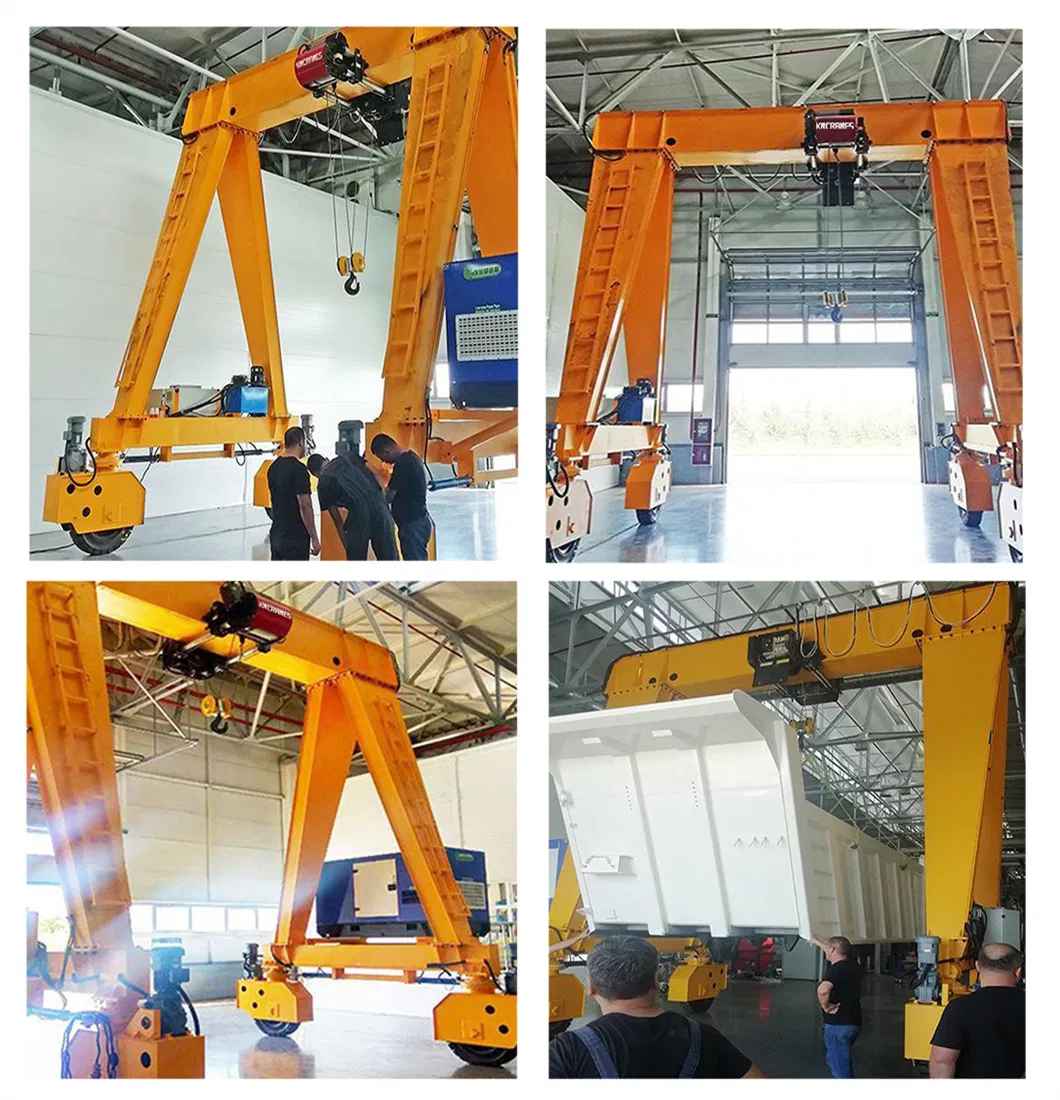

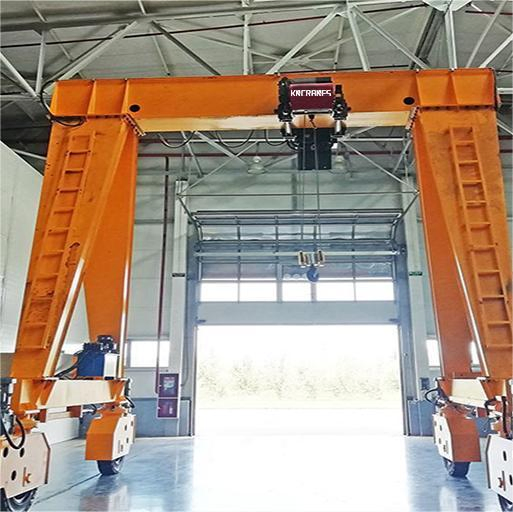

Adjustable height trackless portable gantry crane

Our rubber tire gantry crane features a steel structure with high rigidity and stability. This design allows for precise load handling without shaking, even at high movement speeds.

⚙️Drive System
Trackless driven device or hand push type options.

↕️Adjustability
Flexible lifting height to suit various workspace requirements.

🎮Control
Standard remote control for safe and efficient operation.

Technical Specifications

No.	Description	Technical Parameter
1	SWL (Safe Working Load)	5T-40T
2	Span	5-28m
3	Lifting Height	3m-18m
4	Work Duty	M3-M5
5	Control Method	Remote or pendant control
6	Power Supply	Diesel generator systems or external power

* Note: Customization is available according to specific working conditions.

Product Advantages

Mechanism	Key Features
Hoisting	Heavy duty motor (60% ED rating); Super drum for longer wire rope lifetime; DIN standard hook (34CrMo4 material).
Cross Travelling	3-in-1 gear motor with hardened gear; H Insulation high protection; Stepless speed control.
Long Travelling	Non-coupling transmission; Modular design with smart sizing for optimized space.
Free Turning	PLC control system; High-durability rubber tyred wheels; 360-degree free turning capability.

Application Scenarios

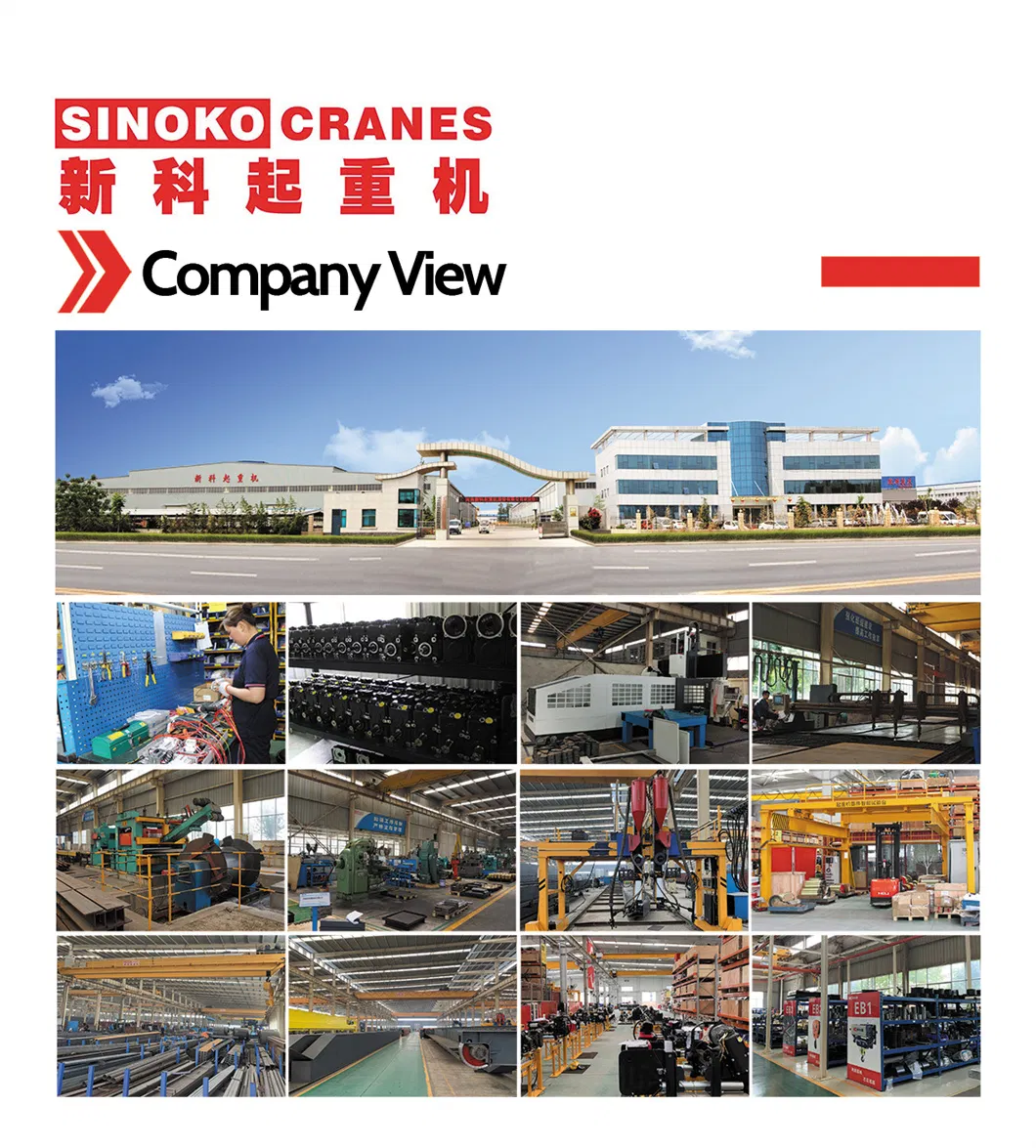

Manufacturing Excellence

We are a professional crane manufacturer integrating research and development, manufacturing, sales, installation, and service. Our product range includes overhead cranes, gantry cranes, jib cranes, electric hoists, and related lifting equipment. With exports to more than 30 countries, we maintain long-term relationships through professional service and customized solutions. We emphasize teamwork, honesty, and integrity in all business activities.

Frequently Asked Questions

1. What is the maximum lifting capacity of your gantry cranes?

Our standard range covers 5T to 40T, but we can provide solutions up to 85 tons depending on specific configuration requirements.

2. Can the crane operate on uneven surfaces?

The rubber tyre gantry crane is designed for flexibility, but for optimal safety and stability, a relatively level and firm ground surface is recommended.

3. What power supply options are available?

The crane typically uses a diesel generator set mounted directly on the structure, but it can also be configured for other industrial power supplies (e.g., 380V, 50Hz, 3-phase).

4. Is the lifting height adjustable?

Yes, we offer adjustable height portable gantry cranes to accommodate different indoor and outdoor clearance requirements.

5. What information is needed for a customized quote?

Please provide the maximum lifting capacity, required span, maximum lifting height, type of material to be handled, and your local power source standard.

6. What safety features are included?

Our cranes include automatic overload protection, PLC control systems for precise movement, and high-level IP protection (IP45/55/65) for electrical components.
