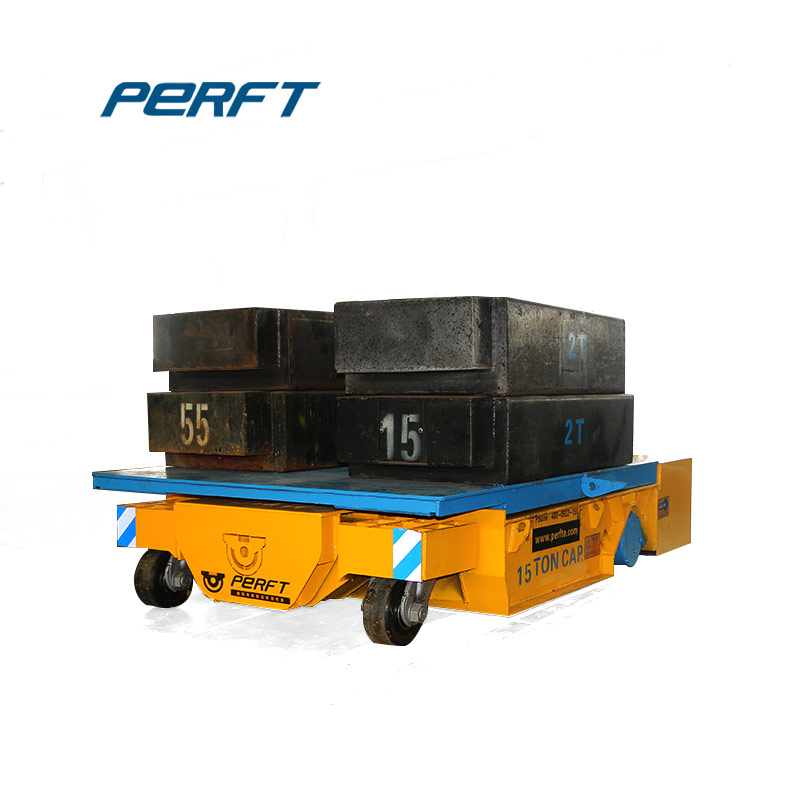

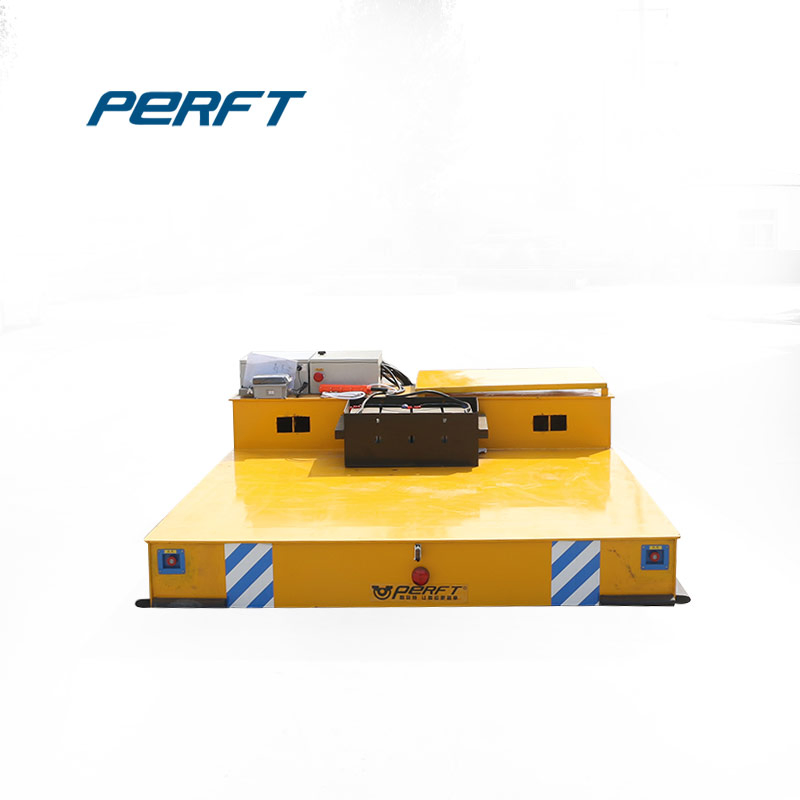

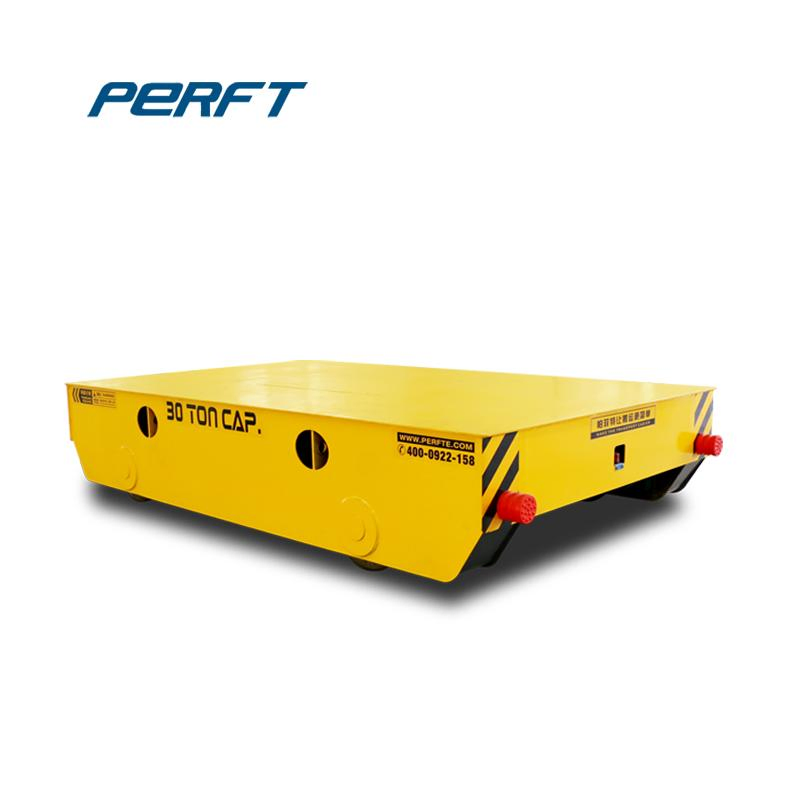

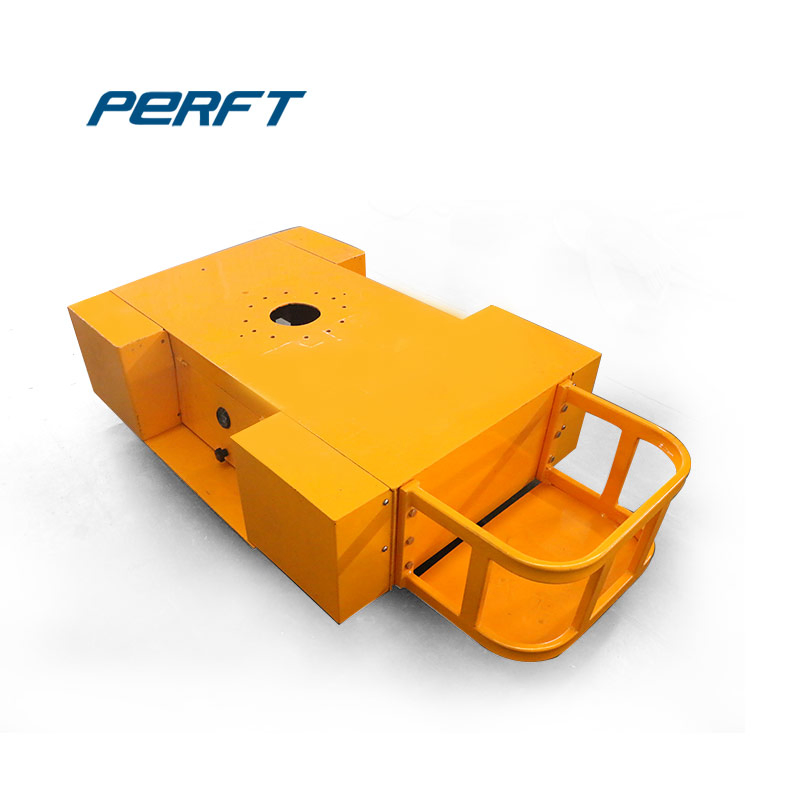

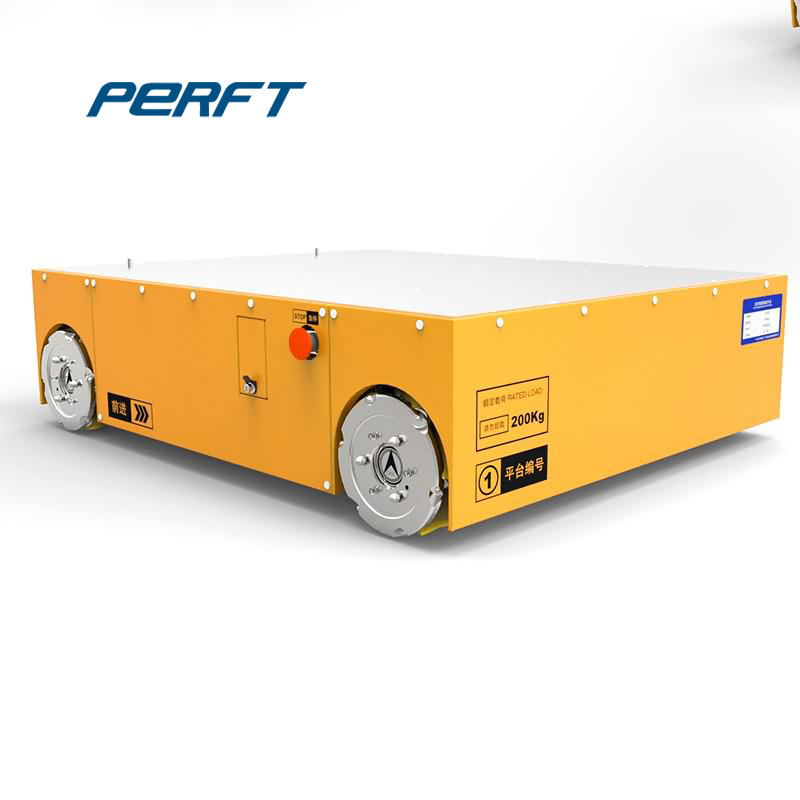

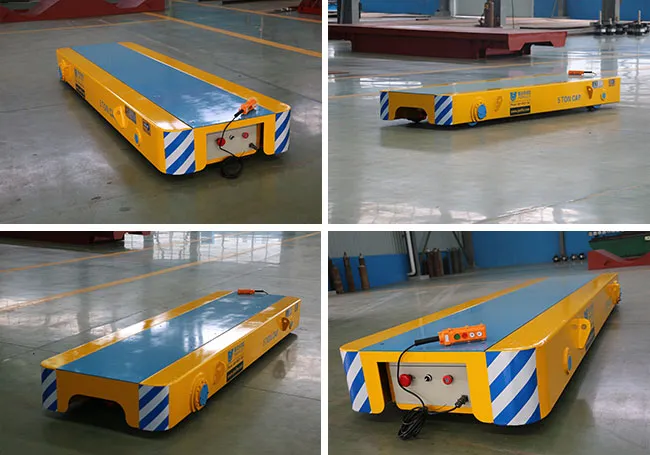

Manufacturer of 25-Ton Heavy-Duty Electric Platform Transport Trolleys

Customization:	Available
Color:	Yellow, Customzied
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

BXC

Product Name

25 Ton Loading Capacity Electric Transport Trolley

Usage

Heavy Duty Material Transportation

Table Size

3000*2000*600mm

Load Capacity

1-300 Ton

Special Function

Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Control Mode

Pendant/Remote/PLC Control

Power Mode

Battery, Cable, Conductive Rails

Material

Steel

HS Code

84289090

Production Capacity

50 Sets/Month

Product Description

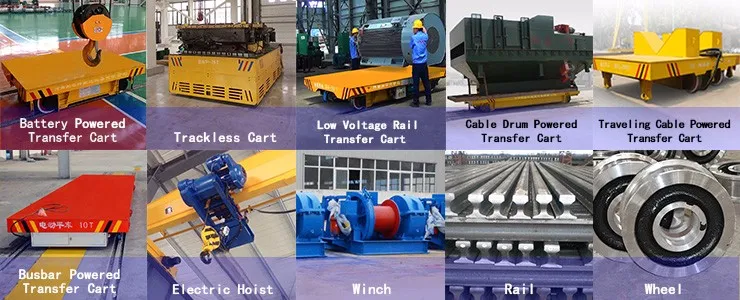

This series of heavy-duty electric platform transport trolleys is designed for efficient material handling across various industrial sectors. Our specialized equipment includes rail transfer carts, trackless transfer cars, and motorized trailers capable of handling immense loads safely and reliably.

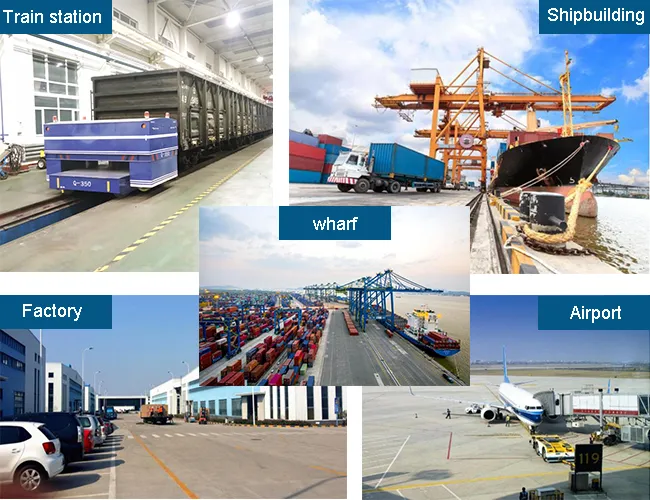

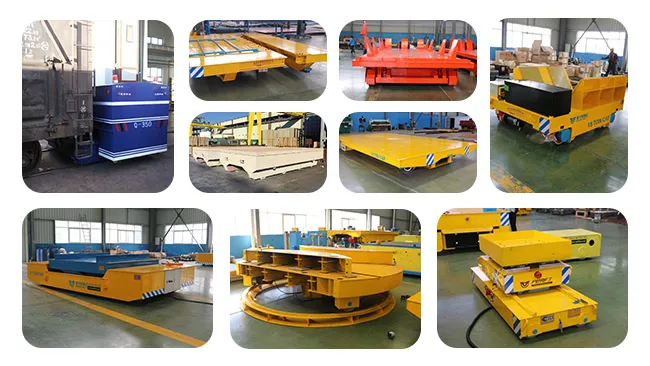

1Core Applications

These motorized industrial transfer flat carts are ideal for horizontal load transfers in production environments. Common uses include:

Carrying loads along assembly lines
Transferring material from one work station to the next
Storing and transporting an entire shift's production
Serving as a stable yet moveable machine base

Technical Parameters

Model	BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load (t)	2	20	50	100	150
Table Length (mm)	2000	4000	5500	6500	10000
Table Width (mm)	1500	2200	2500	2800	3000
Height (mm)	450	550	650	900	1200
Running Speed (m/min)	0-25	0-20	0-20	0-20	0-18
Motor Power (kw)	1	2.2	5	10	15

Key Advantages

🔊

Low Noise: Optimized drive systems ensure minimal noise during operation, improving the workshop environment.

🛡️

Maximum Safety: Equipped with safety features to protect operators and high-value materials.

🎮

Easy Operation: User-friendly controls allow for immediate use with minimal training required.

⚙️

Flexible Integration: Operates on standard industrial floors without the need for complex permanent installations.

⚖️

High Payload Capacity: Modular design supports payloads ranging from 1 ton up to 300 tons per trolley.

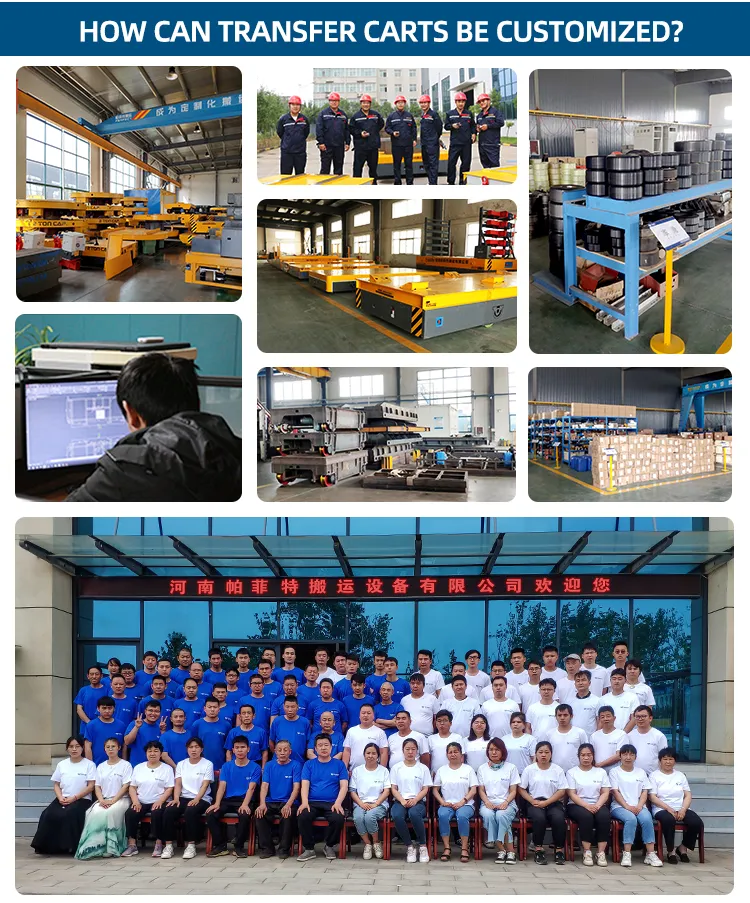

Manufacturing Process

Our production workflow involves CNC cutting, precision welding, post-weld stress relief treatment, dual-layer anti-rust priming, and rigorous load testing (both no-load and full-load) to ensure equipment integrity.

Frequently Asked Questions

Q1: What is the maximum weight these trolleys can carry?

Our electric transport trolleys are designed with a modular fabrication approach, supporting load capacities from 1 ton up to 300 tons.

Q2: What power sources are available for the transport carts?

We offer multiple power modes including battery-powered, cable reel, and conductive rail systems to suit different industrial requirements.

Q3: Can the trolley operate in hazardous environments?

Yes, we provide specialized configurations such as anti-explosion and heat-resistant models for use in foundries, chemical plants, and vacuum furnaces.

Q4: How is the transport trolley controlled?

The carts can be operated via a handheld pendant control, a long-distance wireless remote, or integrated into a PLC system for automatic movement.

Q5: Is it possible to customize the table size?

Absolutely. All parameters including table dimensions (Length, Width, Height) and load capacity can be customized based on your specific material handling needs.

Q6: What surfaces can the trackless transfer cars run on?

Trackless models are designed to operate on standard industrial floors (such as concrete or epoxy) and do not require the installation of permanent rails.
