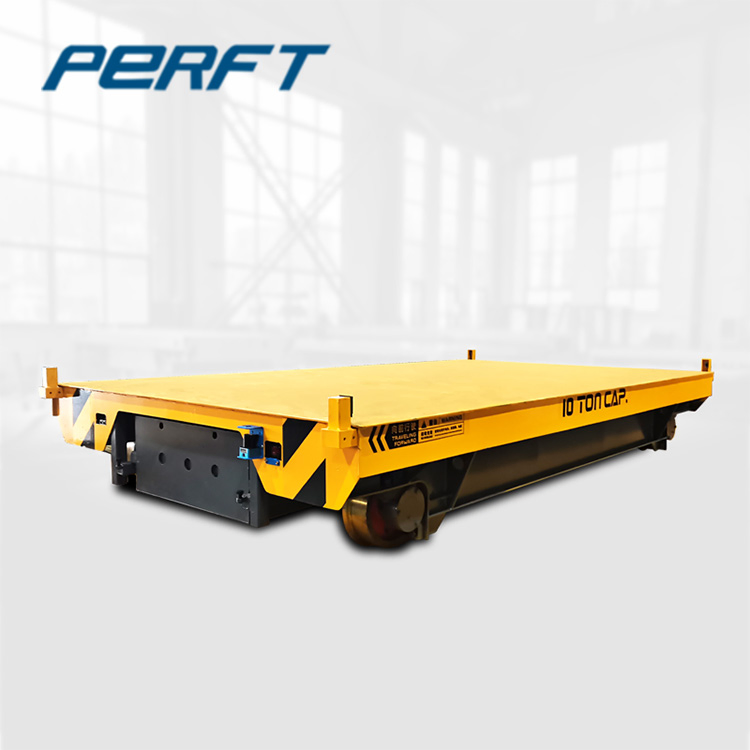

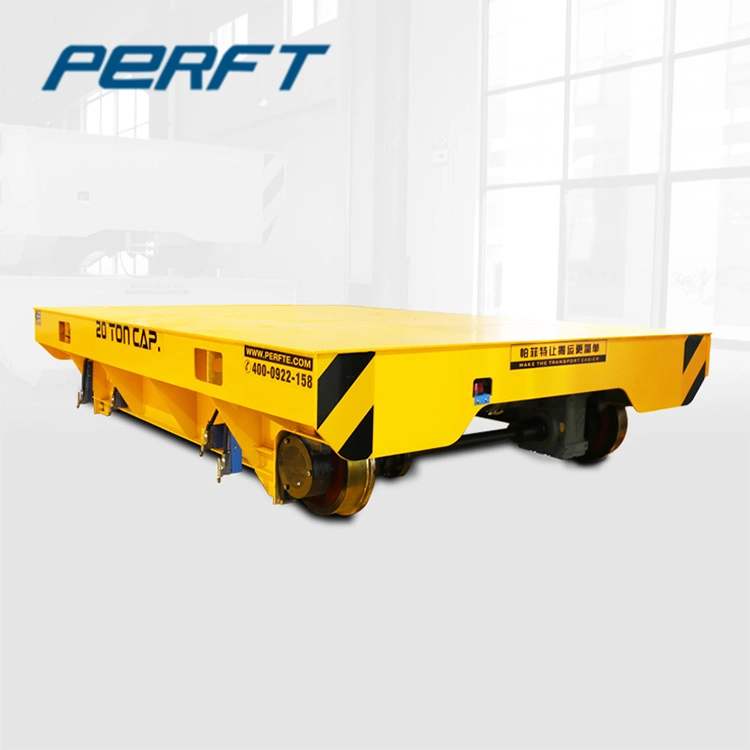

Automated Handling Electric Trolley

Customization:	Available
Color:	Yellow, Customzied
Warranty:	1 Year, 2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

BXC

Product Name

Motorized Handling System

After-sales Service

1 Year

Load Capacity

1-300 Ton

Usage

Heavy Duty Material Transportation

Material

Steel

Control Mode

Pendant/Remote/PLC Control

Power Mode

Battery, Cable, Conductive Rails

HS Code

84289090

Production Capacity

50 Sets/Month

Product Description

Automated Handling Electric Trolley Introduction:

Battery powered rail transfer cart is powered by battery, the battery is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, etc. It is a rail electric transport cart ideal for factory use. It features a simple structure, large carrying capacity, easy maintenance, and a long service life. Due to its economy and practicality, it has become the preferred transport cart for moving heavy objects regularly on fixed journeys.

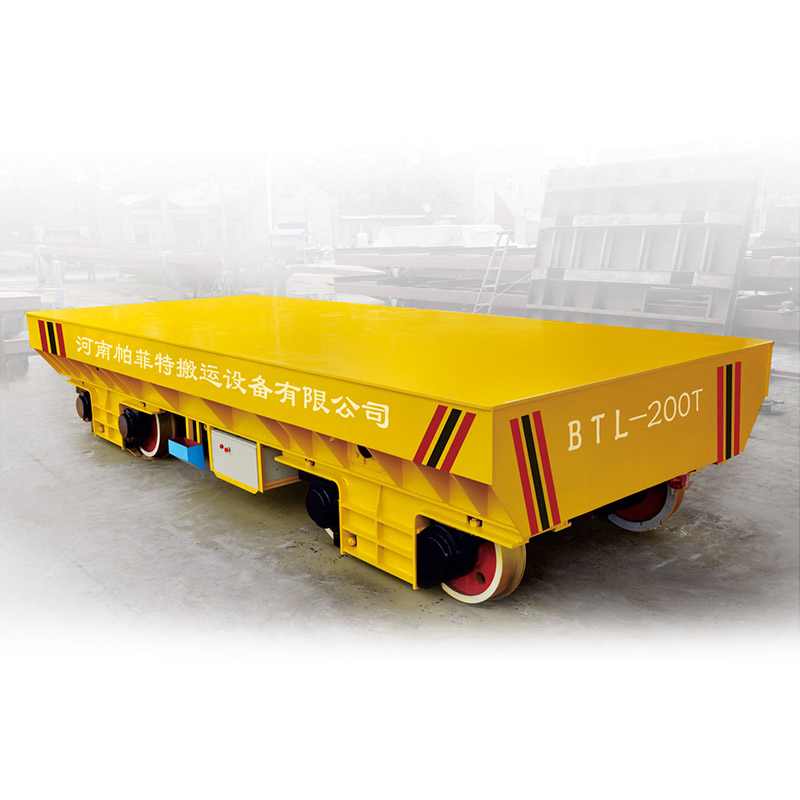

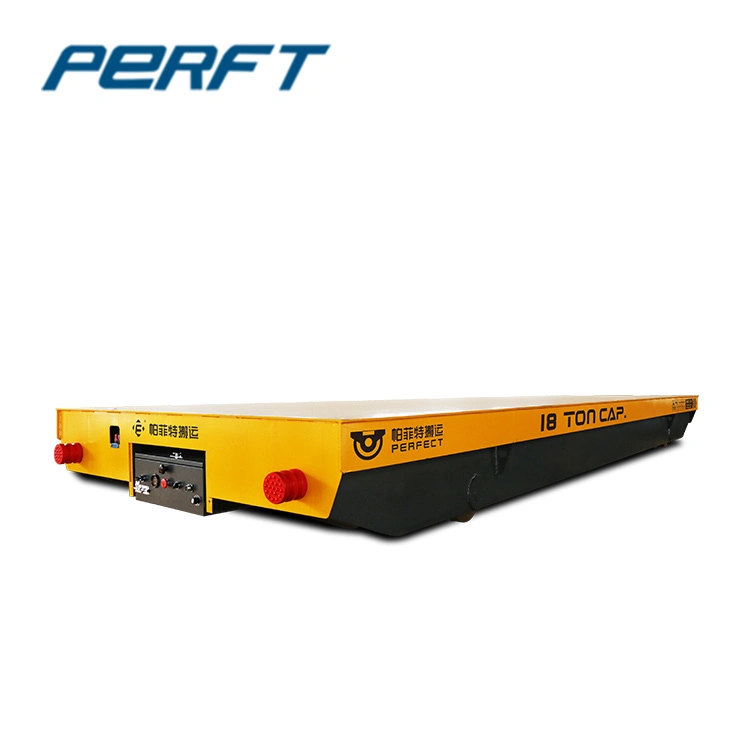

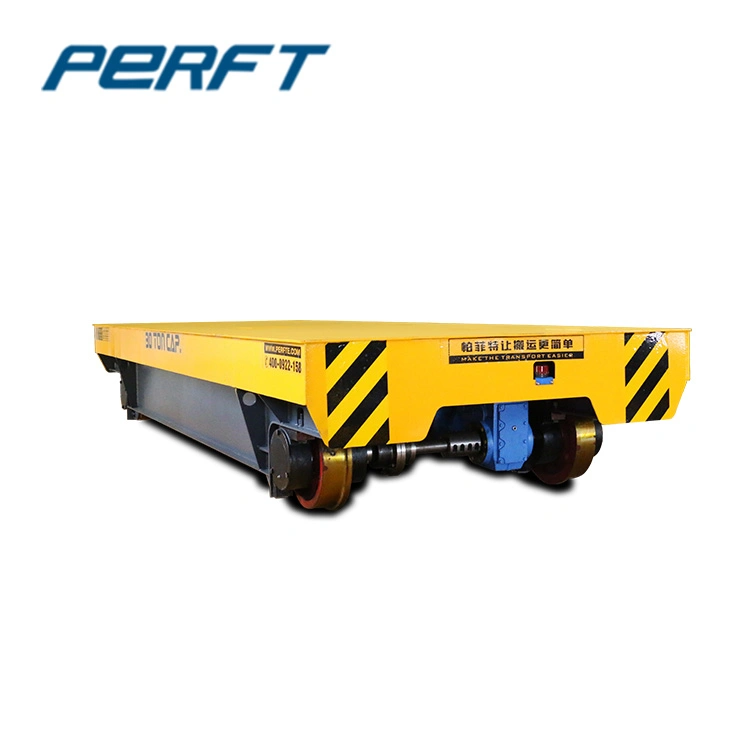

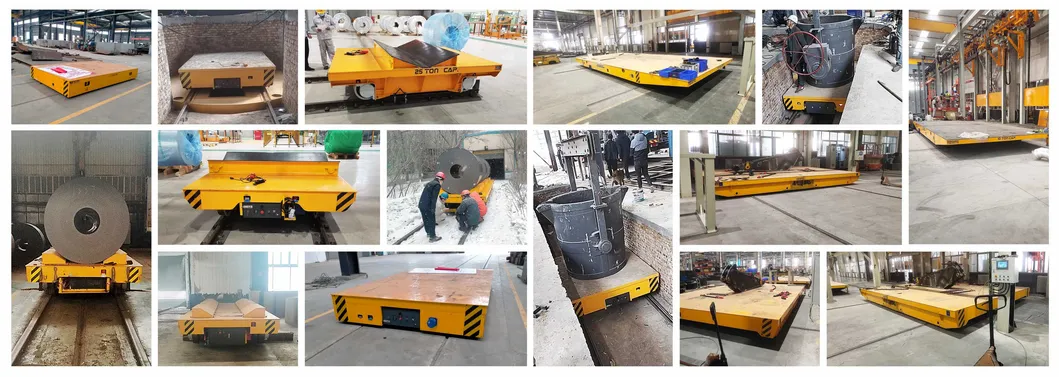

Automated Handling Electric Trolley Overview

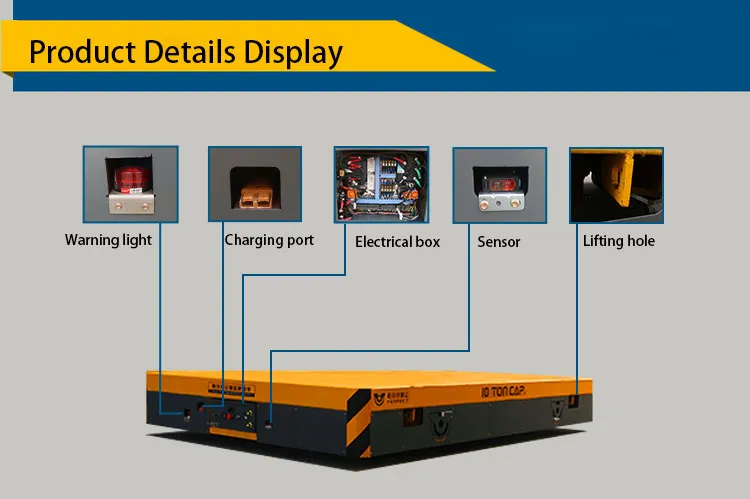

Detailed Photos

Product Parameters

Model	Rated Load(t)	Length(mm)	Width(mm)	Height(mm)	Running Speed(m/min)	Motor Power(kw)
BXC-2t	2	2000	1500	450	0-25	1
BXC-20t	20	4000	2200	550	0-20	2.2
BXC-50t	50	5500	2500	650	0-20	5
BXC-100t	100	6500	2800	900	0-20	10
BXC-150t	150	10000	3000	1200	0-18	15

Core Advantages

🔇

Low Noise

Designed for quiet operation, ensuring a better working environment.

🛡️

Maximum Safety

Offers guarantee of maximum safety for operators and the materials handled.

🕹️

Easy Operation

These vehicles are simple to drive and require minimal training to use.

⚙️

Process Integration

Operates on standard floors and does not require complex permanent installation.

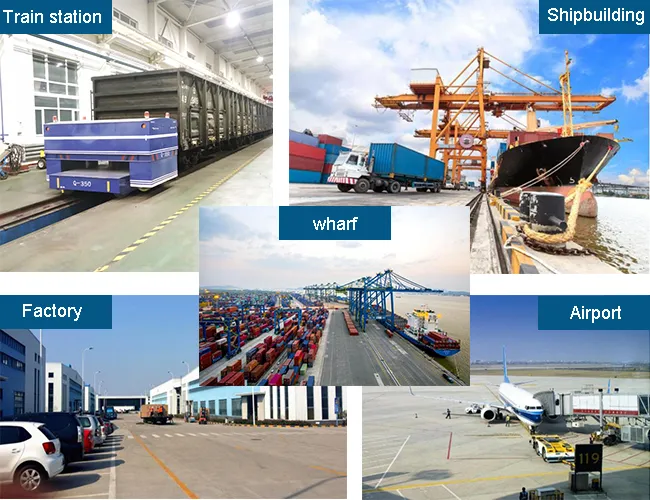

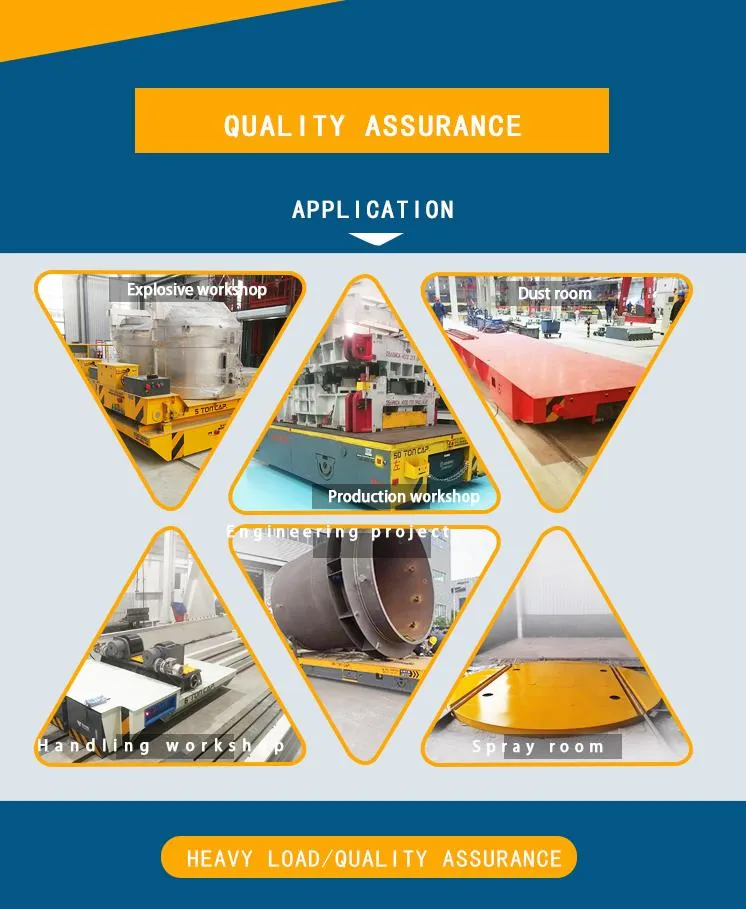

Industrial Applications

Motorized industrial transfer flat carts are used for horizontal load transfers across a wide range of materials. Key applications include:

Carrying loads along assembly lines.
Transferring material between work stations.
Store and transport entire shift production loads.
Stable yet moveable machine bases.

Operating fields: Metallurgy, Oil and Gas, Die Shops, Shipyards, Chemical Plants, Automotive, Mining Industry, Aerospace, Power Generation, and Warehousing.

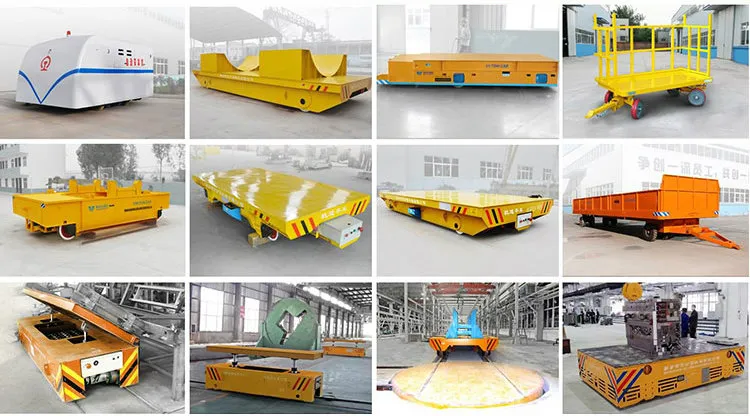

Production Showcase

Frequently Asked Questions

What is a motorized handling system used for?

It is designed for the horizontal movement of heavy materials, assemblies, and other items in industrial environments like factories, warehouses, and assembly lines.

What are the main advantages of a transfer cart over a lift truck?

Transfer carts are more affordable for extremely heavy loads, have a compact design for limited floor areas, and the deck can be fully customized to suit specific load shapes and sizes.

What load capacities can these carts handle?

The system is highly versatile and can handle load capacities ranging from 1 ton up to 300 tons depending on the model and configuration.

How is the motorized trolley powered?

The system offers multiple power modes including high-capacity batteries, cable reels, and conductive rails to suit different operational needs.

Is the handling cart difficult to operate?

No, these vehicles are designed for ease of use. They can be operated via a simple pendant control, a wireless remote, or integrated into a PLC system for automated paths.

Can the cart handle specific materials like coils or tanks?

Yes, the cart deck can be customized with V-grooves for coils, fixture cradles for assemblies, or stand-off decks for specific equipment support.
