| Model NO. | MHLT Rubber Tyred Gantry Crane |
| Certification | RoHS, CE, ISO9001, SGS |
| Maximum Lifting Weight | 20t Max/Customizable |
| Maximum Lifting Height | 20m Max/Customizable |
| Type | Single Girder Semi Gantry Crane |
| Work Duty | A3, A4, A5 |
| Material | Q235B/Q355b Steel |

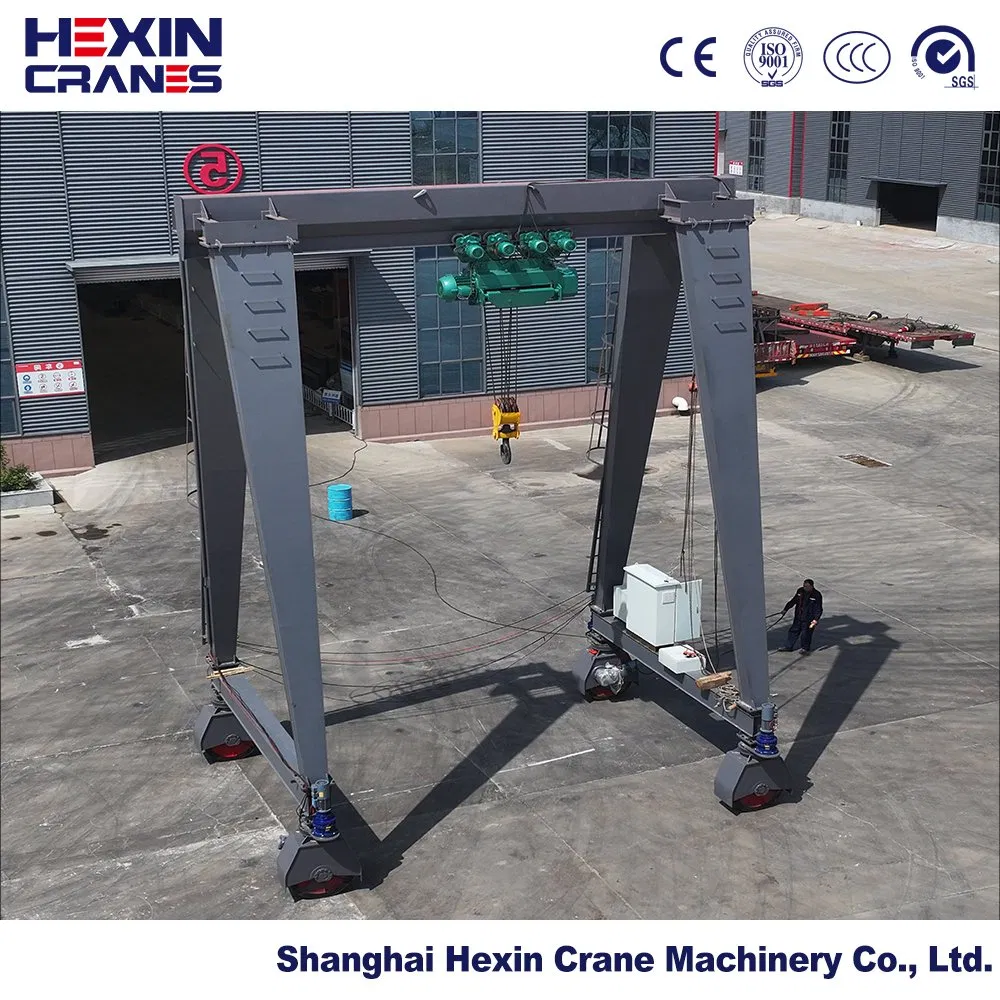

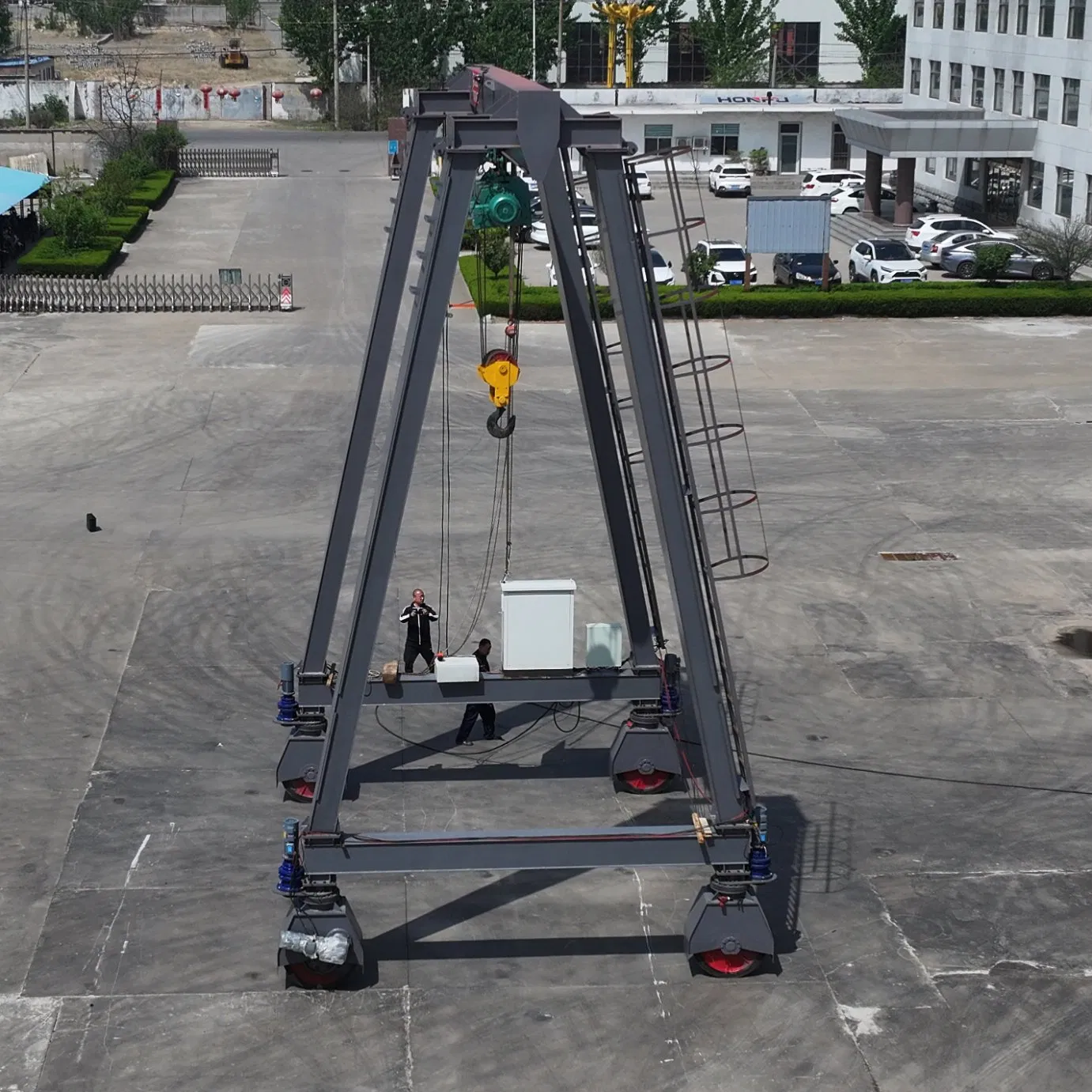

The rubber-tired gantry crane (RTG) is a type of gantry crane that uses a tire-based traveling mechanism instead of traditional fixed rails. With its excellent mobility, flexibility, and operational efficiency, it has become a key equipment for container handling in modern logistics systems.
| Parameter | Specifications |
|---|---|
| Tonnage | 1T to 200T / Customized |
| Span | 1 meter to 40 meters |
| Lifting Height | 2 meters to 40 meters |
| Working Level | A1/A2/A3/A4/A5/A6/A7/A8 |
| Lifting Speed | 5/0.8 m/min or Customized |
| Warranty Time | 18 Months after shipment |
| Surface Preparation | Shot Blasting Sa2.5 |
| Control Method | Remote control |
| Category | Key Points |
|---|---|
| Advantages |
• Strong adaptability: Moves freely across zones without rails. • Independent operation: No supporting equipment needed for stacking. • Low investment: No dedicated tracks required compared to RMGs. • High efficiency: Swift zone-to-zone transfer. |
| Limitations |
• Ground requirements: Demands high flatness and load-bearing capacity. • Maintenance: Tires require regular inspection and replacement. |

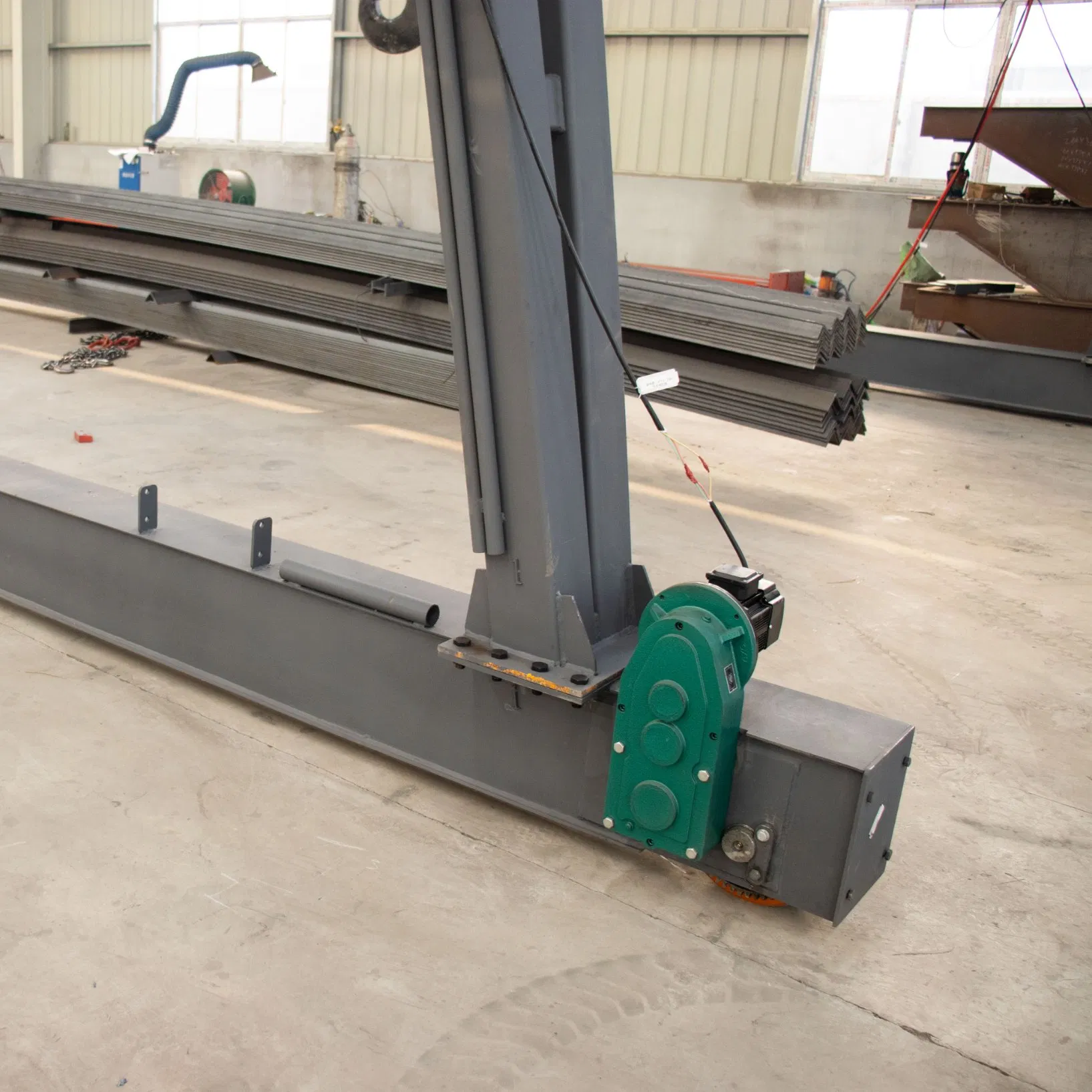

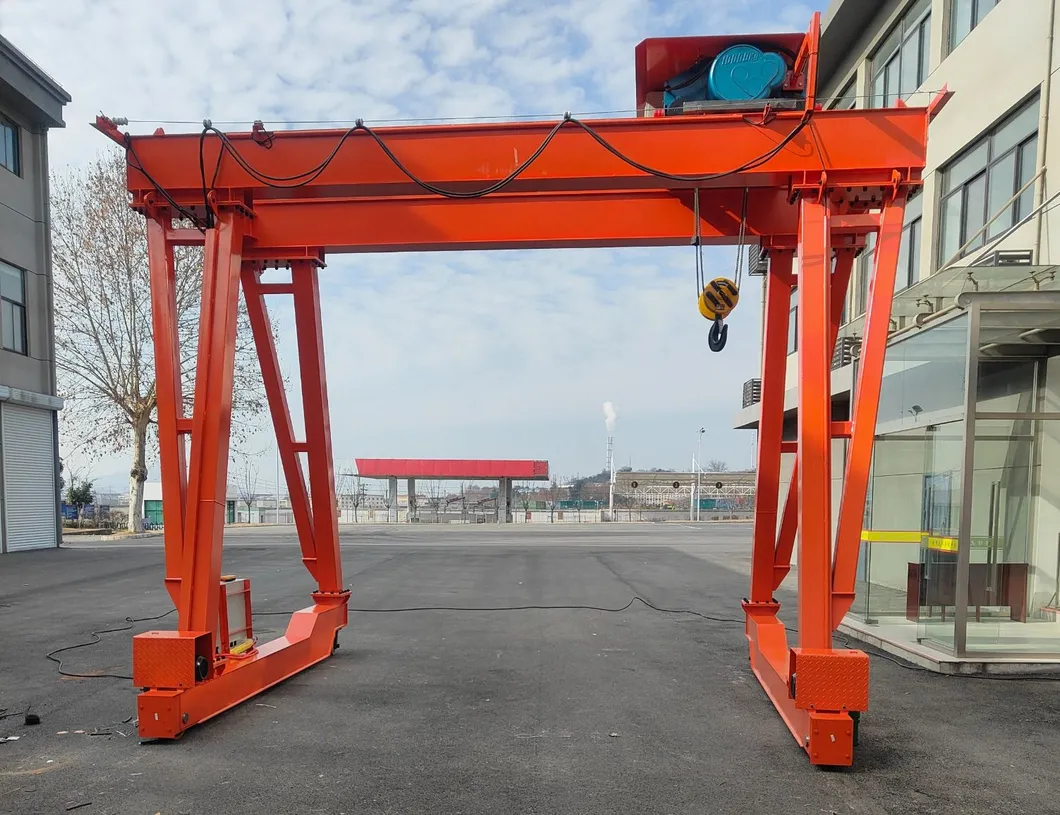

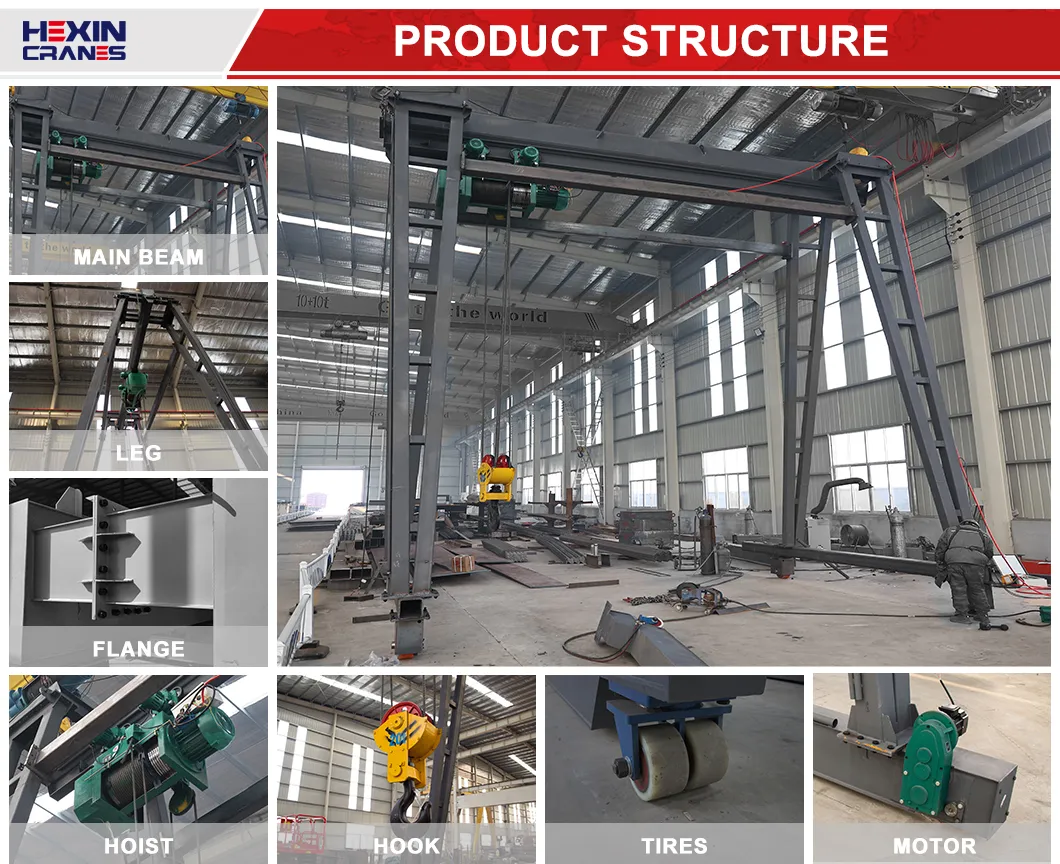

Gantry Structure: Main beams from I-beam or U-steel, legs welded from Q235B/Q345B.

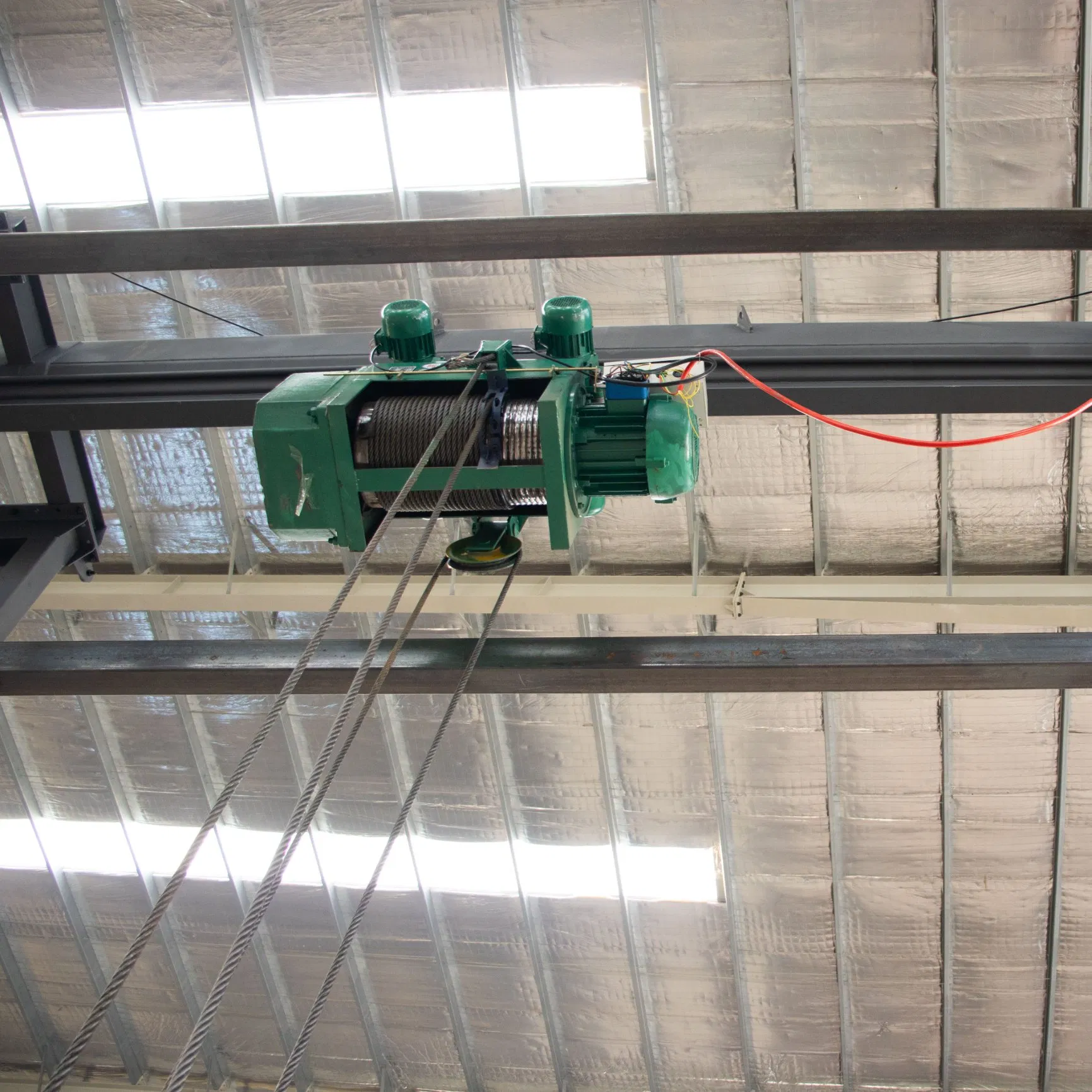

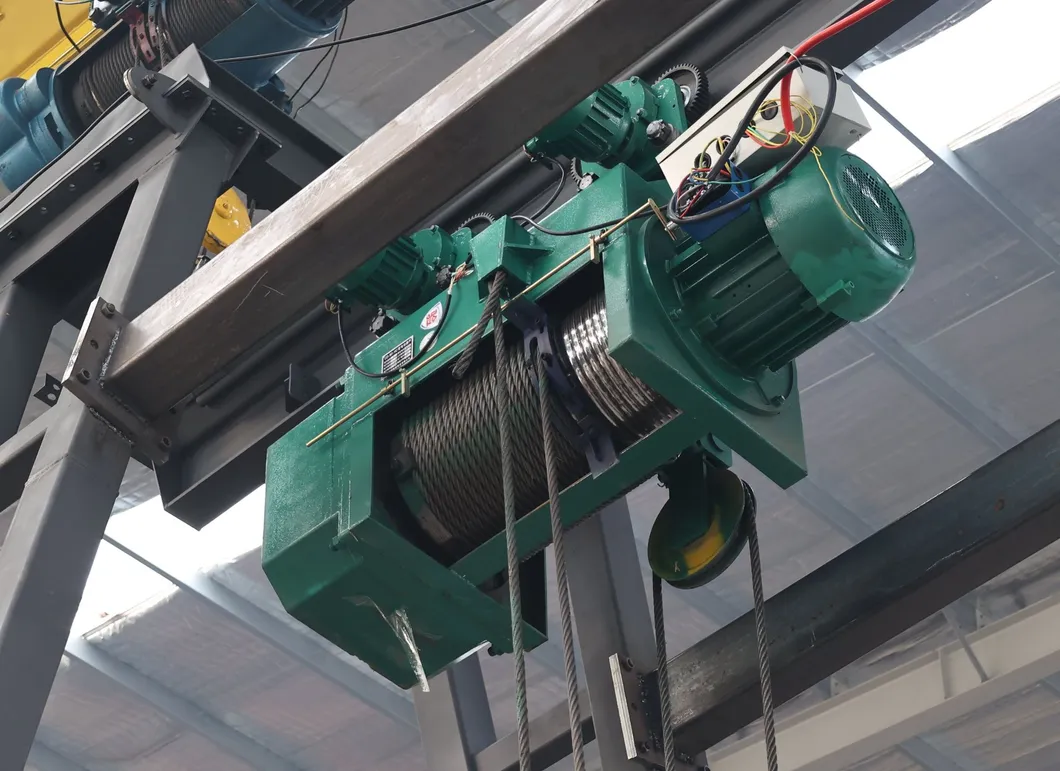

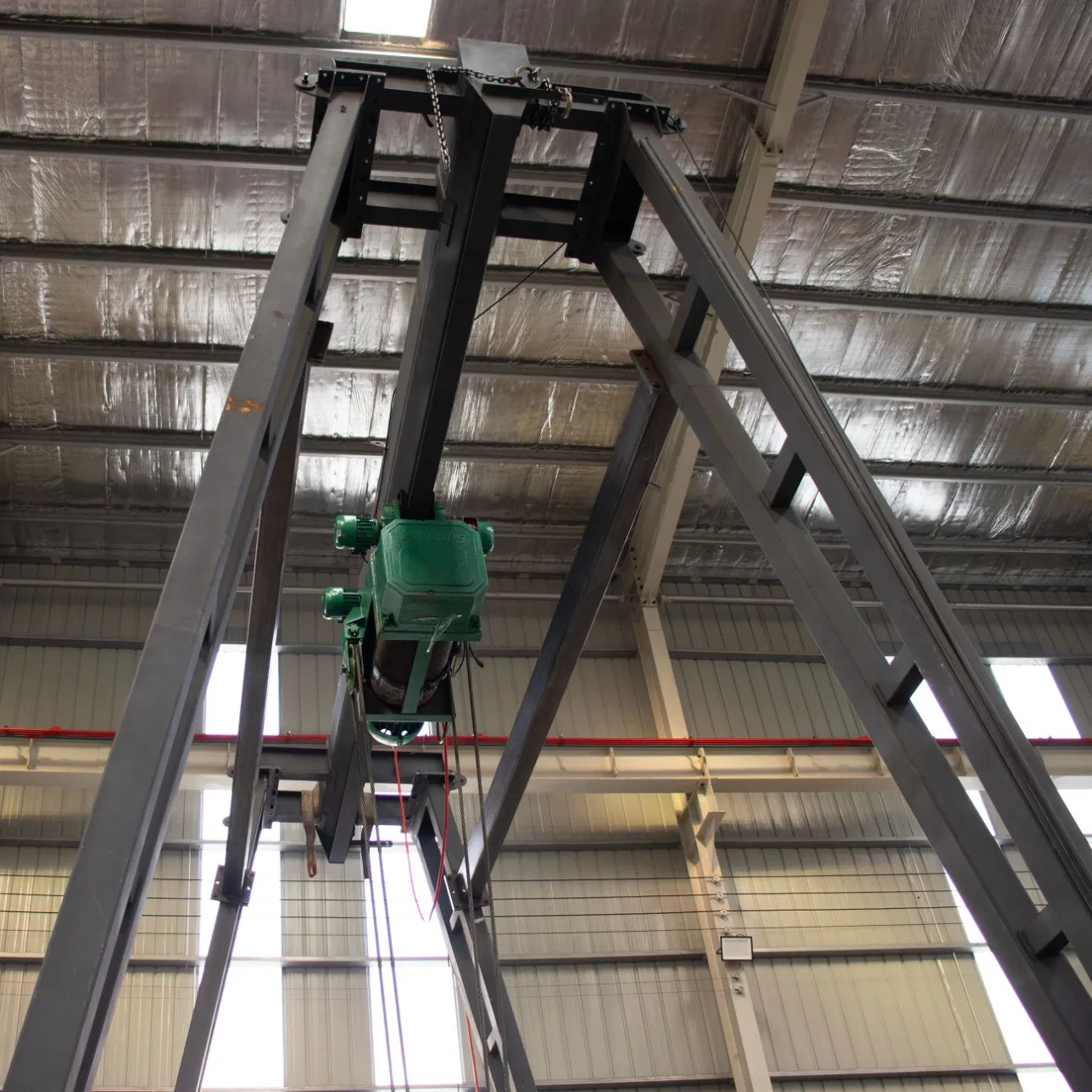

Lifting Mechanism: Electric hoist with motor, reducer, and high-strength rope.

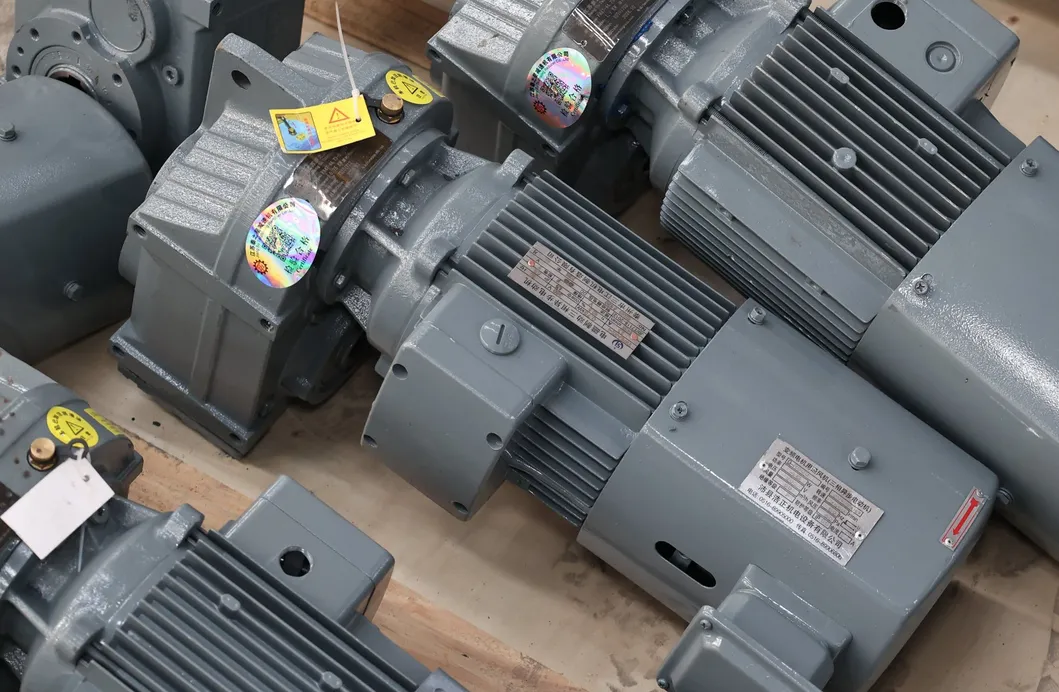

Electrical System: High intelligence level for automated operation and protection.

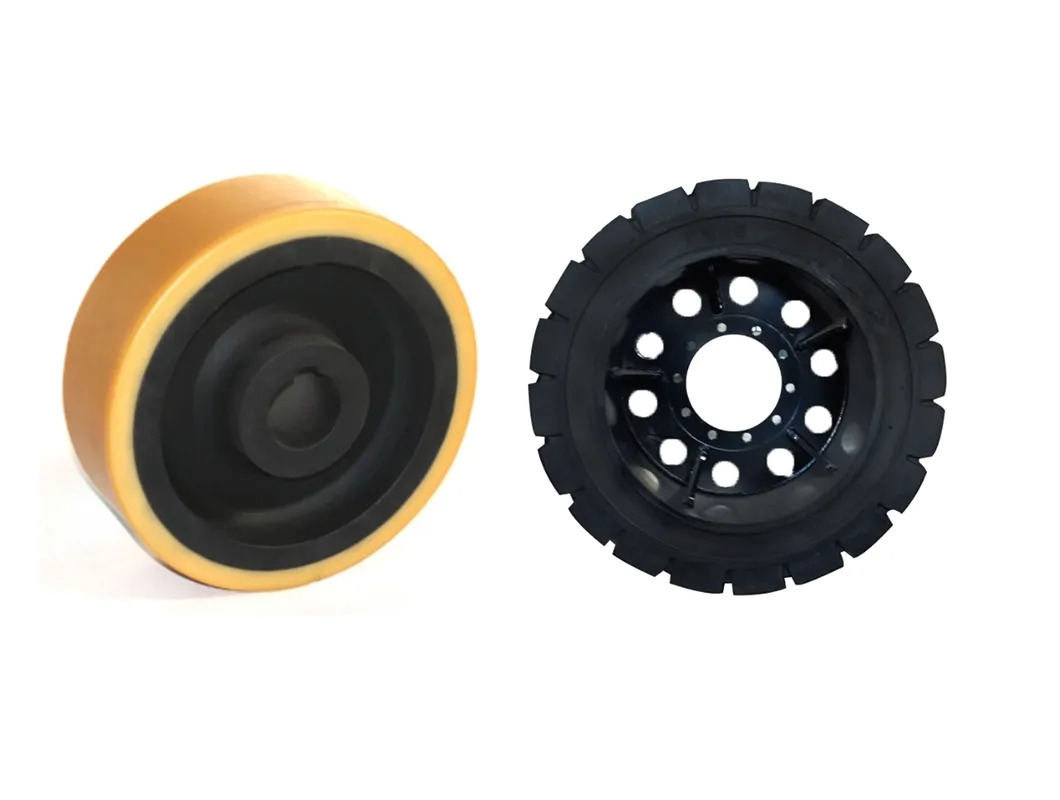

Tire Options: Polyurethane for clean floors or Solid tires for harsh construction sites.
