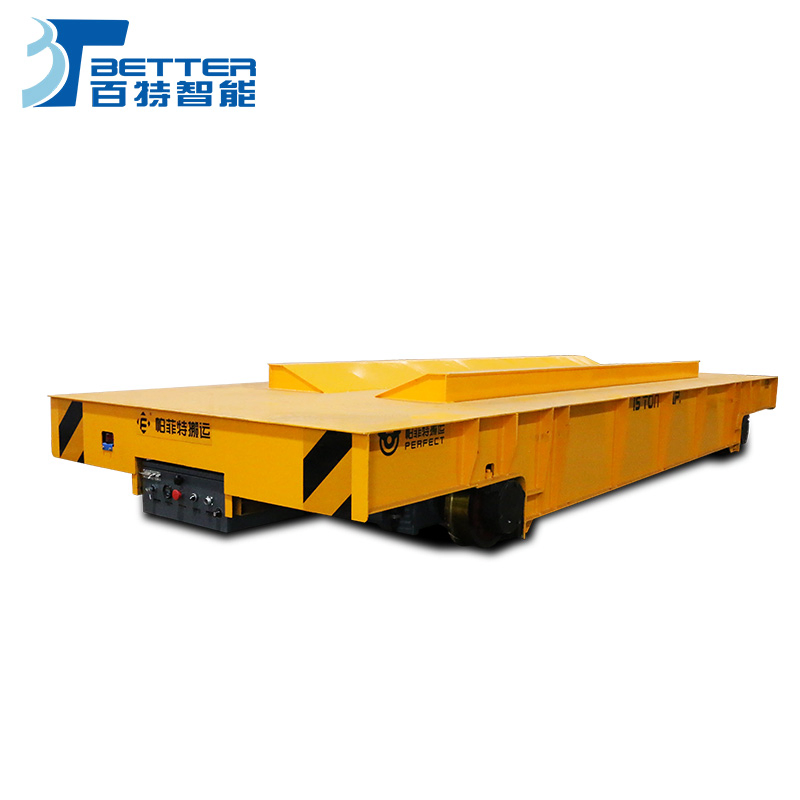

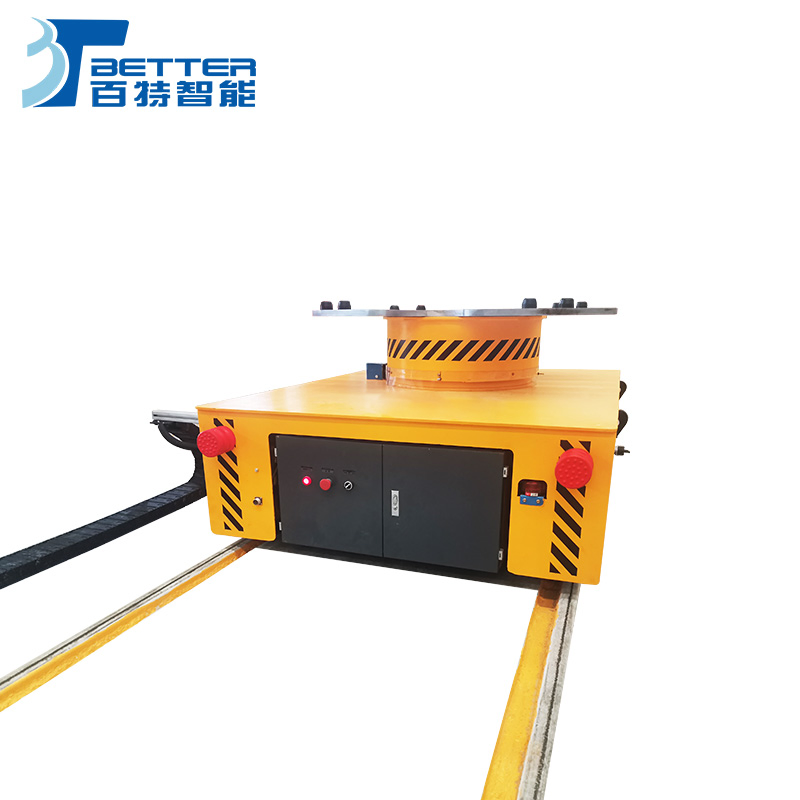

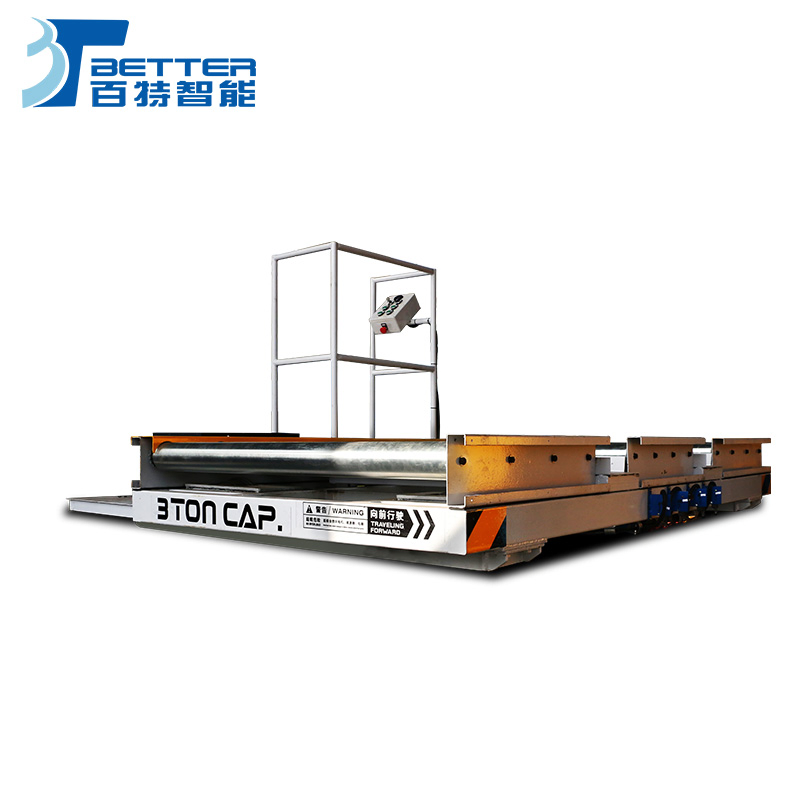

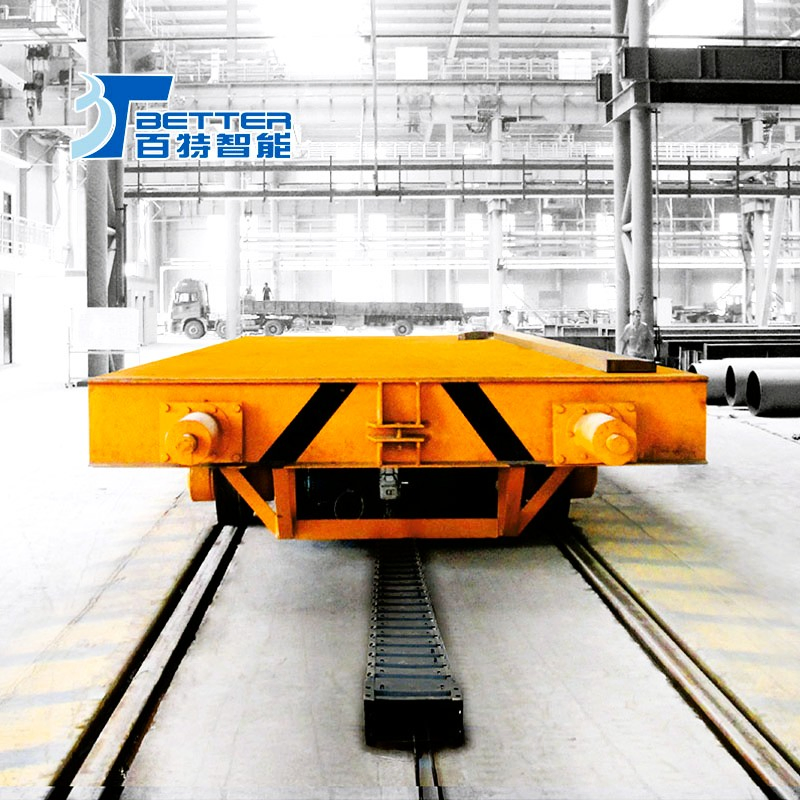

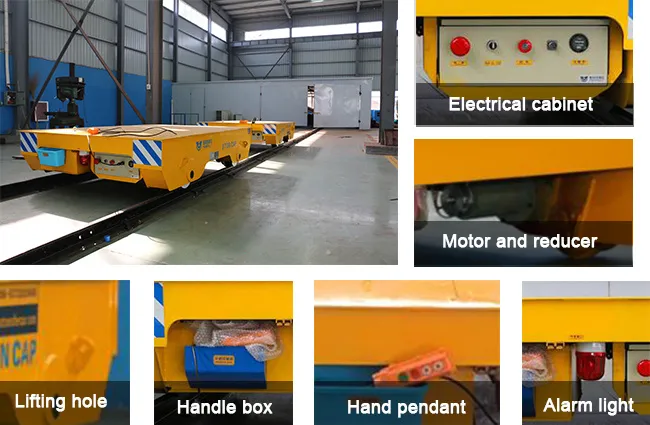

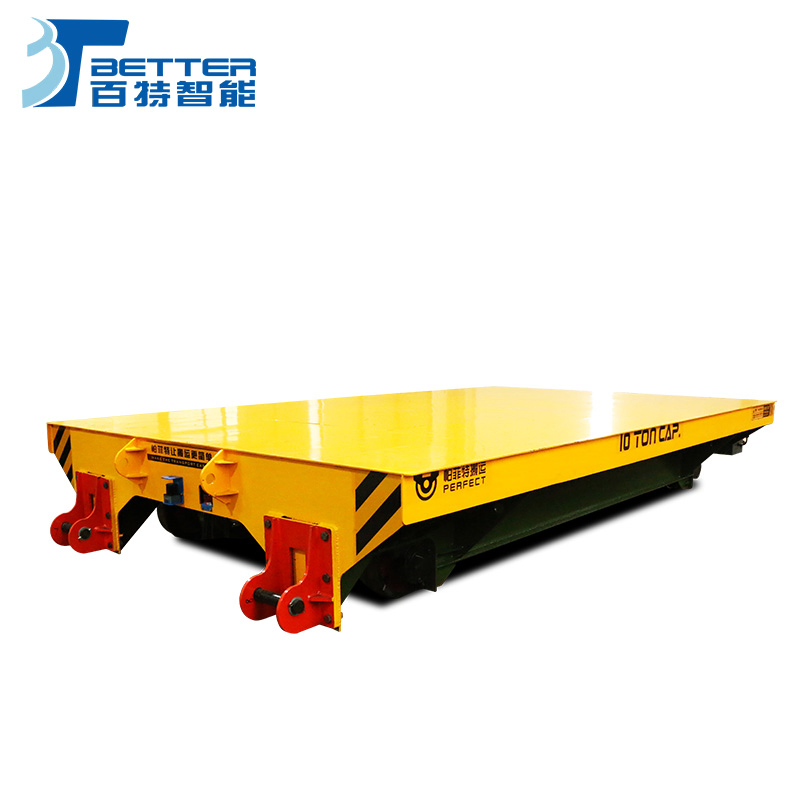

The railway truck shuttles along a fixed path. Standard railway truck is DC powered. Standard truck come in lengths of 4000, 4500 or 5000 mm and widths of 2200 or 2500mm. Larger railway truck capacities and sizes are available for specific applications. Our railway truck loads up to 300 tons. The truck can be also AC powered. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.
Typically the truck used for moving materials such as steel or tanks of liquids from one location to another or carry an entire shift of production and even serve as a stable movable machine base. Trucks can also be part of automated crane systems, serving to shuttle goods, material, or product to and from manufacturing processes or storage locations.

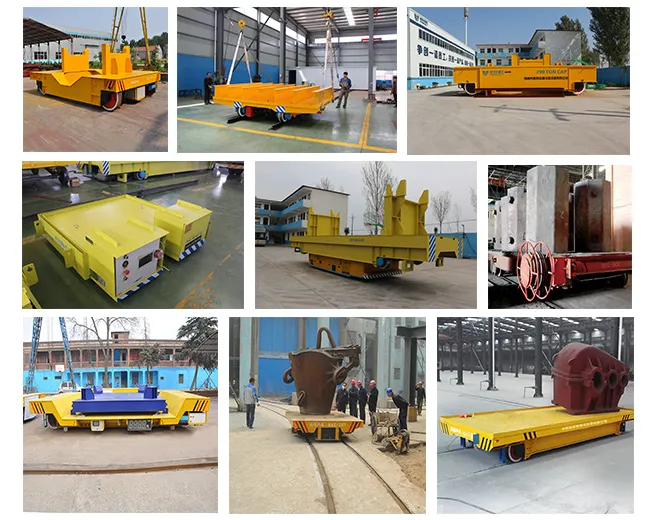

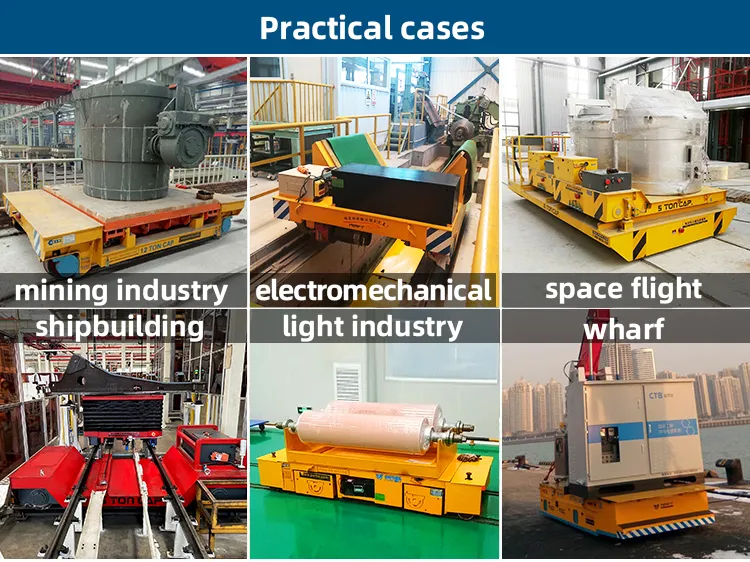

Applicable Sites: The railway truck is mainly applied in assembly line, metallurgy industry, warehouse transport, ship industry, workpiece transport in workshop, lathe transport, steel factory, construction, petroleum industry, energy, chemical industry, railway etc.
| Model (BDG) | 2t | 5t | 10t | 20t | 30t | 50t | 100t | 150t |
|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
| Table Length (mm) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Table Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2500 | 2800 | 3000 |
| Table Height (mm) | 450 | 450 | 500 | 550 | 600 | 650 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 |
Increased Efficiency
Saves material delivery time and boosts production.
Plant Safety
Decreases the use of cranes and tractors for safer operation.
Product Integrity
Avoids damage to materials or finished products during transport.
Since 2003, we have provided standard and custom material handling systems and equipment on time and on budget, while exceeding the expectations of our international customers. Our sales staff is knowledgeable and available to assist you in determining the optimal solution to your material handling needs.
