1 Ton Lever Block & Hand Hoist with Ce Certificate

1 / 5

1 Ton Lever Block & Hand Hoist with Ce Certificate

Customization:	Available
Application:	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, All Situations
Type:	Chain Hoist

Send Inquiry

Product Description

Basic Info

Model NO.

LB-B

Sling Type

Chain

Lift Speed

<2m/min

Lifting Height

>20m

Chain Falls

Certification

CE, ISO9001:2000, GS TUV

Condition

New

Driven Type

Feature

Antiseptic

Structure

Bridge Crane

Work Type

Light Level

Origin

China

Product Description

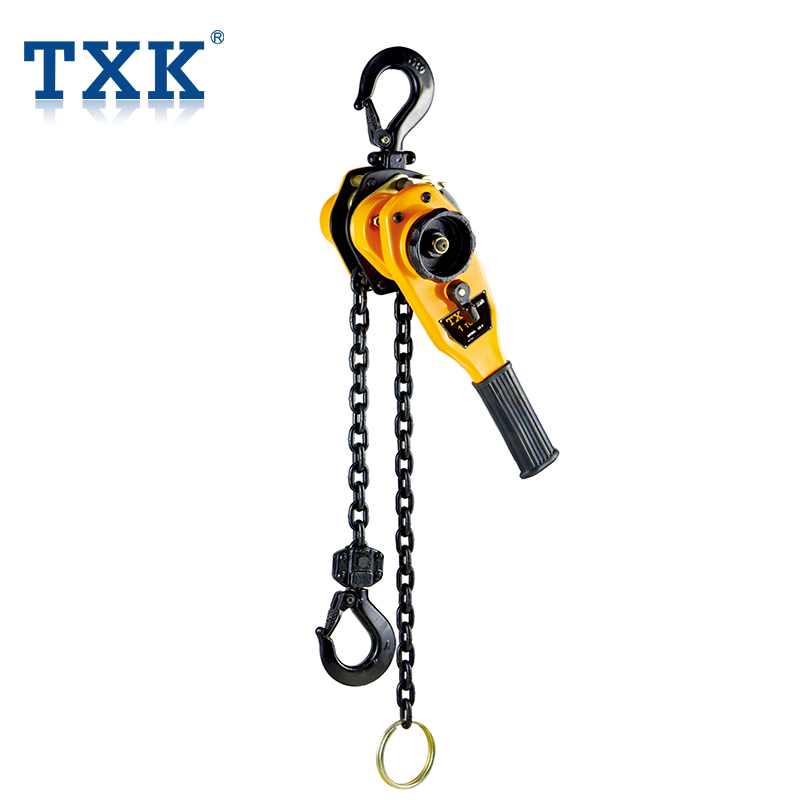

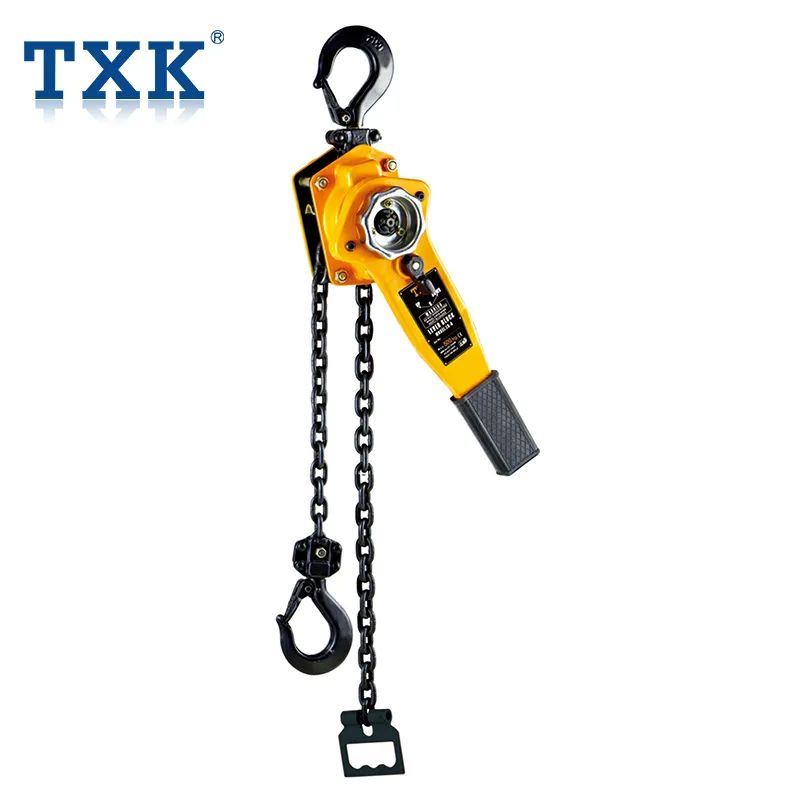

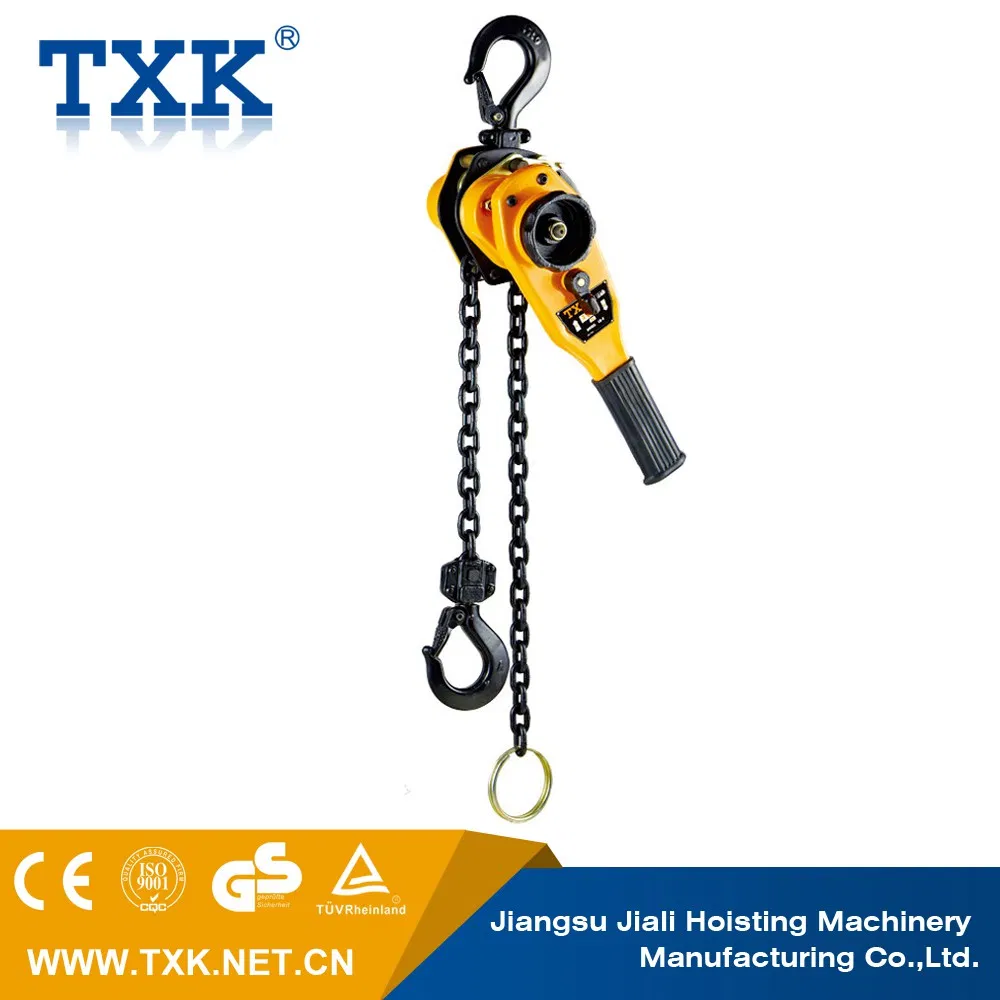

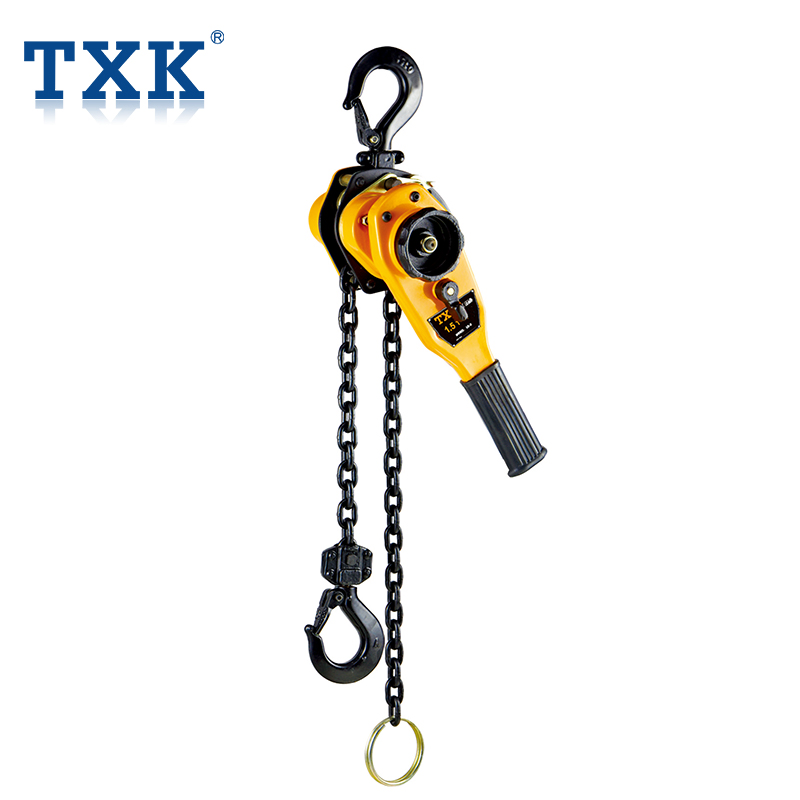

1 Ton Lever Block & Hand Hoist with CE Certificate

Superior Grade 100 load chain-wafios link, Din standard.
Forged and Heat Treated load Hooks with batch traceability and stretch indicators
360° handle rotation with stroke to ratchet indicators
Double pawl Brake linings
Forged Safety Latch
Sealed Roller Bearings
100% Load Tested to 1.5*WLL
MBL of 400% of WLL
2000 Cycle Batch Test
Asbestos free brake linings

Technical Parameters

Model: LB-B	75	100	150	200	300	600
Capacity (ton)	0.75	1	1.5	2	3	6
Standard Lift (m)	1.5	1.5	1.5	1.5	1.5	1.5
Running Test Load (t)	1.13	1.5	2.25	3	4.5	9
Pulling Efforts (kg)	15	20	18	24	38	39
Chainfall	1	1	1	1	1	2
Chain Dia. (mm)	6.3	6.3	7.1	8	9	9
Net Weight (kg)	6.9	7.1	9.4	10.1	16.3	27.2

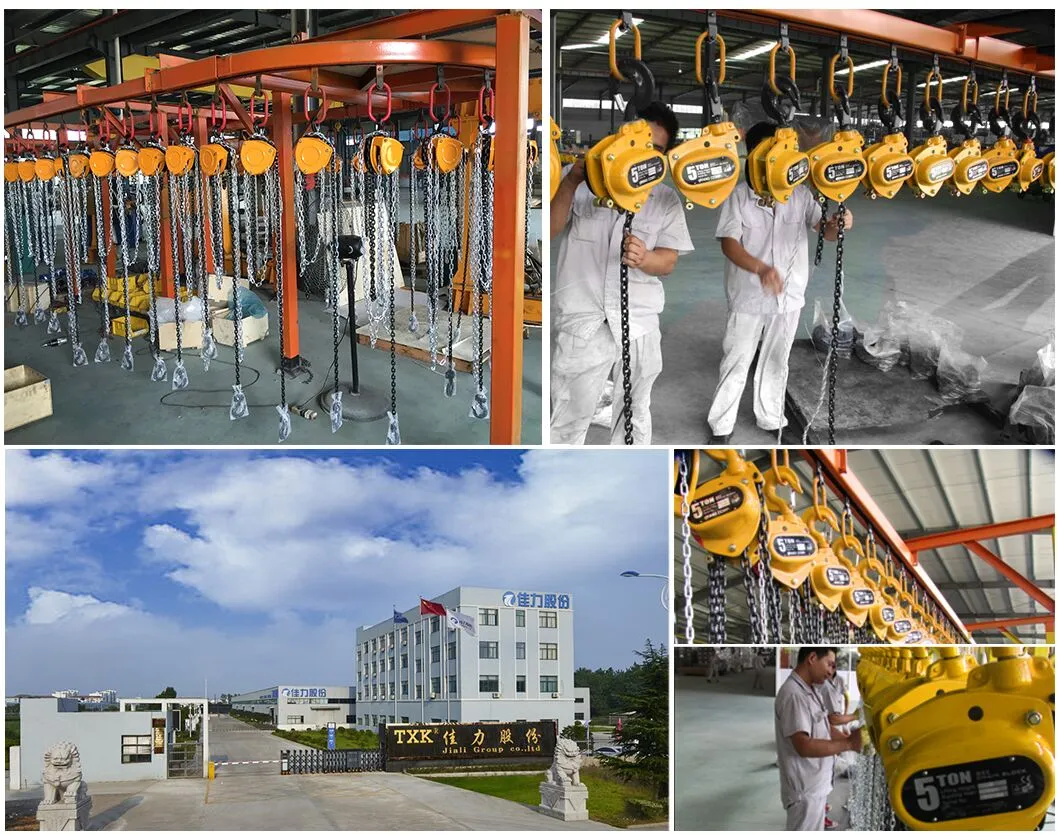

Manufacturing Excellence

Our facility covers 66,000 square meters, representing a leading position in the industry. We provide quality, safe, and stable products to meet the highest industrial standards. As a TUV certified manufacturer, our products serve various sectors worldwide including logistics, railway, shipbuilding, and assembly lines.

Why Choose Our Solutions:

Over 20 years of manufacturing excellence in lifting equipment.
Large-scale production capability with efficient production lines.
Global distribution network reaching more than 50 countries.
Full certifications including CE, GS, TUV, ISO, and SGS.
Fast lead times supported by skillful workforce and advanced technology.

Frequently Asked Questions

Q1: What is the Minimum Order Quantity (MOQ)? The MOQ can be as small as one set for testing.

Q2: What are the available payment methods? We accept T/T and LC at sight.

Q3: How long is the typical lead time? Normally, the lead time is 10-15 days after order confirmation.

Q4: Can I get a sample before placing a bulk order? Yes, we can provide 1 set as a sample for your evaluation.

Q5: What certifications do your products hold? Our products are well certified by CE, GS, TUV, ISO, and SGS.

Q6: What information should I provide for an accurate quote? Please provide the required capacity, lifting height, material to be lifted, and your power supply voltage.
