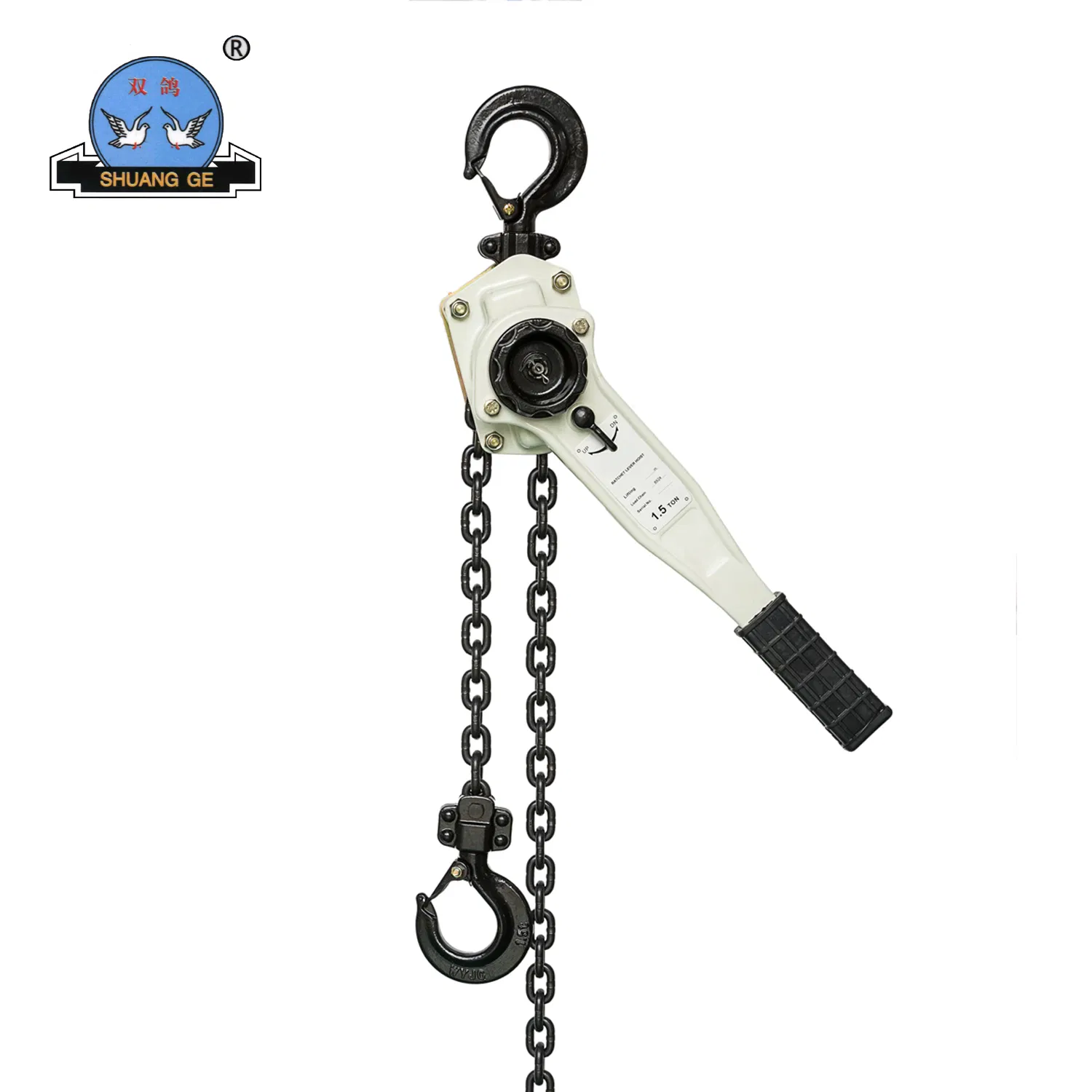

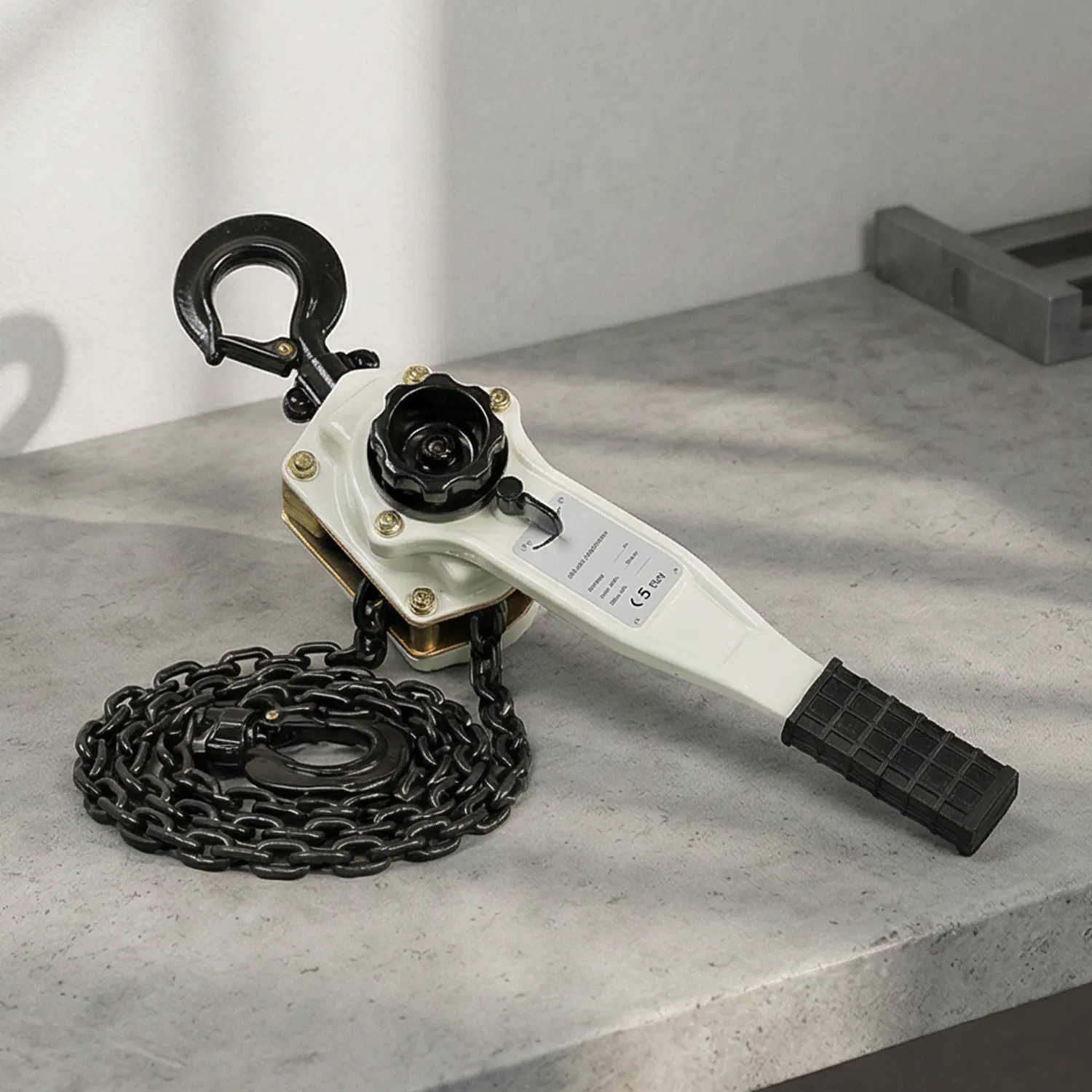

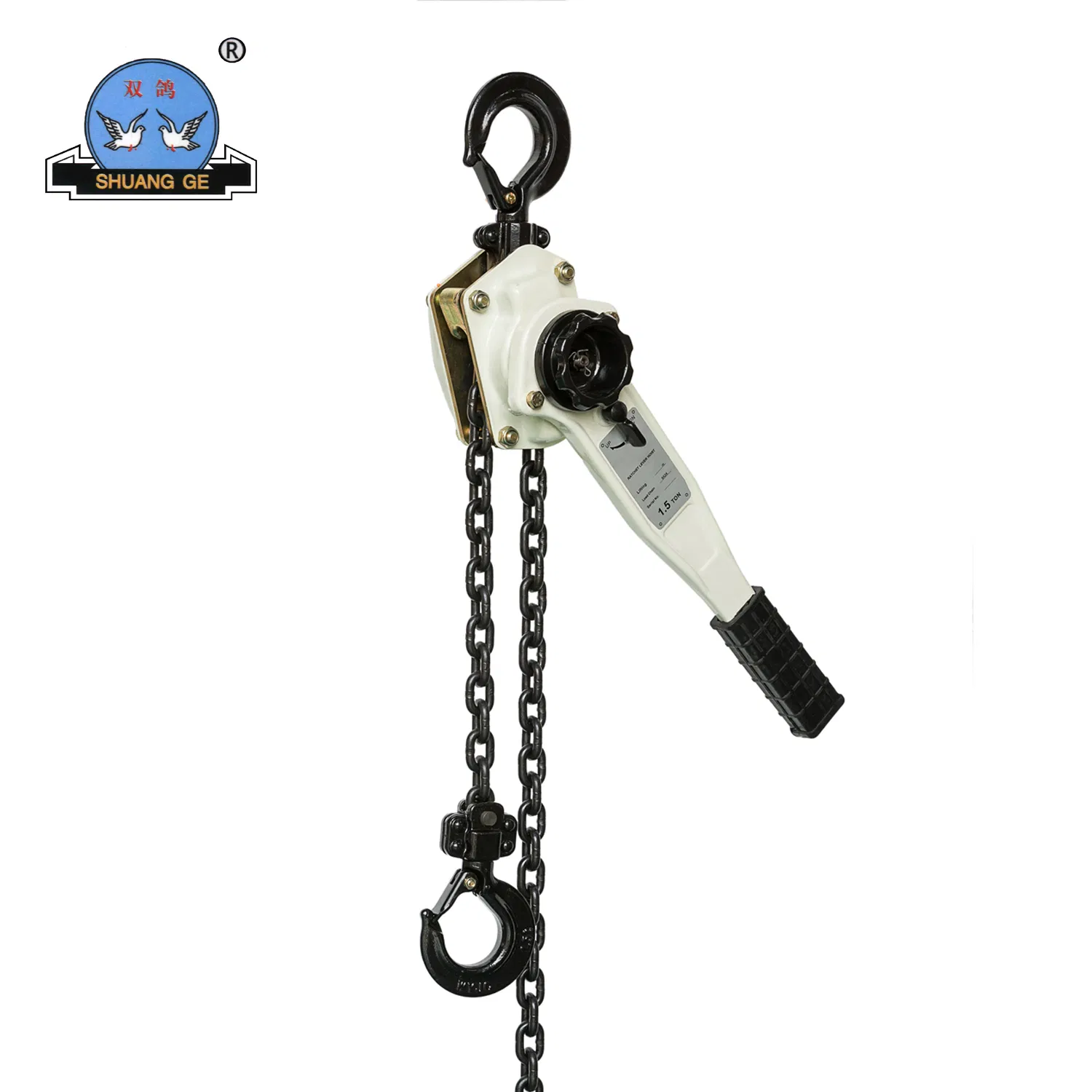

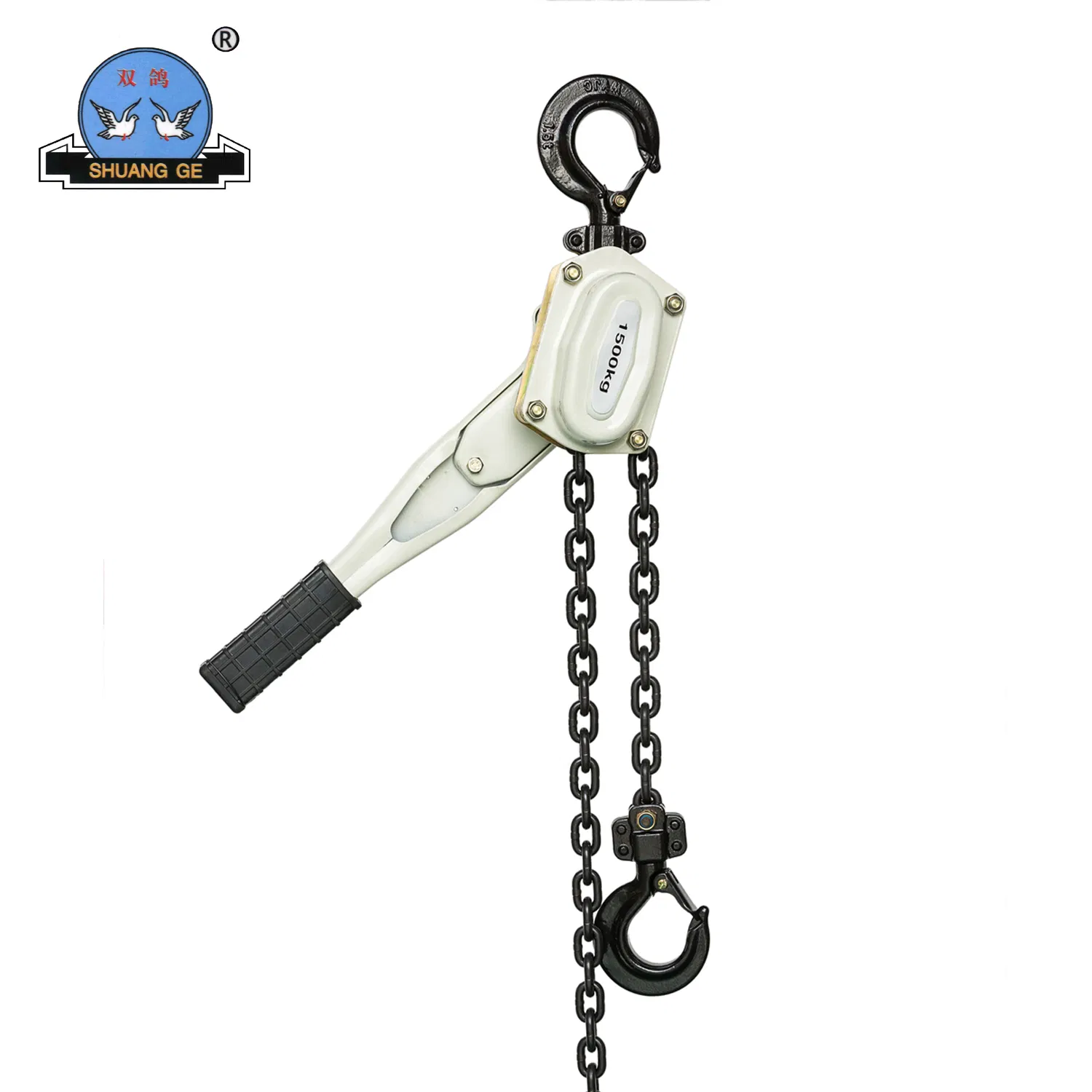

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1 / 5

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

1.5 Ton Construction Lever Hoist Lever Block with CE Certification

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HSH-E

Application

Bridge Crane, Tower Crane, Lifting Platform

Type

Lever Hoist

Sling Type

Chain

Lift Speed

<2m/min

Max Lifting Height

1.5m

Chain Falls

2

Certification

CE, ISO9001:2000, GS

Capacity

1.5t

Test Load

2.25t

Color

Orange

HS Code

8425190000

📦 Packaging & Delivery

Package Size

45.00cm * 39.00cm * 24.00cm

Gross Weight

15.000kg

Transport Package

Wooden Case

Production Capacity

10000/Year

⚙ Product Description & Features

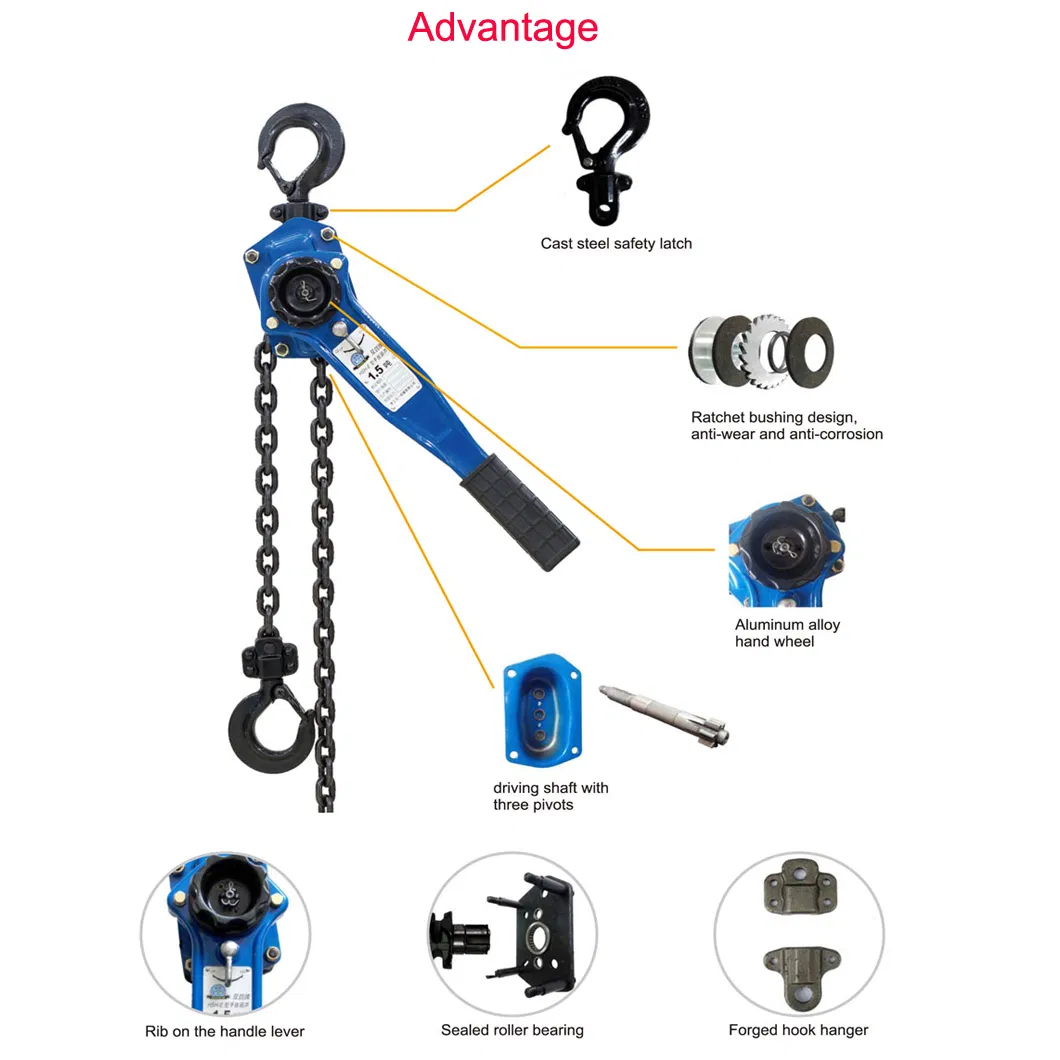

HSH-E Type 1.5 Ton Lever Block

✓Superior G80 load chain, DIN standard
✓Drop-forged & heat treated load hooks
✓Safety latches and hook holds
✓Double pawls brake system
✓Non-Asbestos brake discs
✓High grade sealed roller bearings
✓100% Running load test (1.5x capacity)
✓Static load test (4x capacity)

Model	Capacity (t)	Std Lift (m)	Test Load (t)	Load Chain		Effort (N)	Main Dimensions (mm)			Net Weight (kg)
Model	Capacity (t)	Std Lift (m)	Test Load (t)	Cols	Dia (mm)	Effort (N)	A	B	C	Net Weight (kg)
HSH-E0.5	0.5	1.5	0.75	1	5	340	105	78	95	4
HSH-E0.75	0.75	1.5	1.125	1	6	140	148	90	136	7
HSH-E1	1	1.5	1.5	1	6	250	148	90	136	7.2
HSH-E1.5	1.5	1.5	2.25	1	8	220	172	98	160	11
HSH-E3	3	1.5	4.5	1	10	320	200	115	180	21
HSH-E6	6	1.5	7.5	2	10	340	200	115	235	31
HSH-E9	9	1.5	11.25	3	10	360	200	115	340	47

📷 Product Gallery

Lever Hoist 1

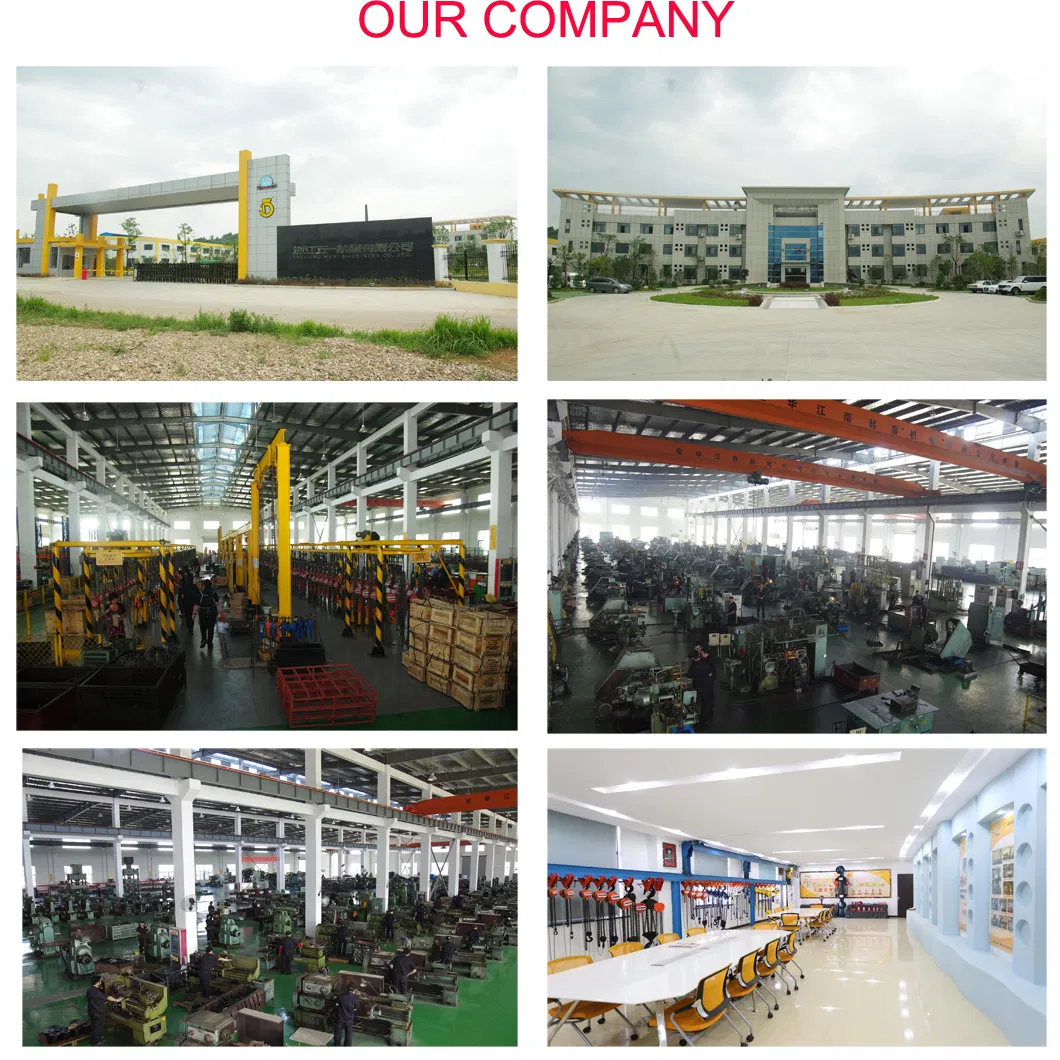

Lever Hoist 2

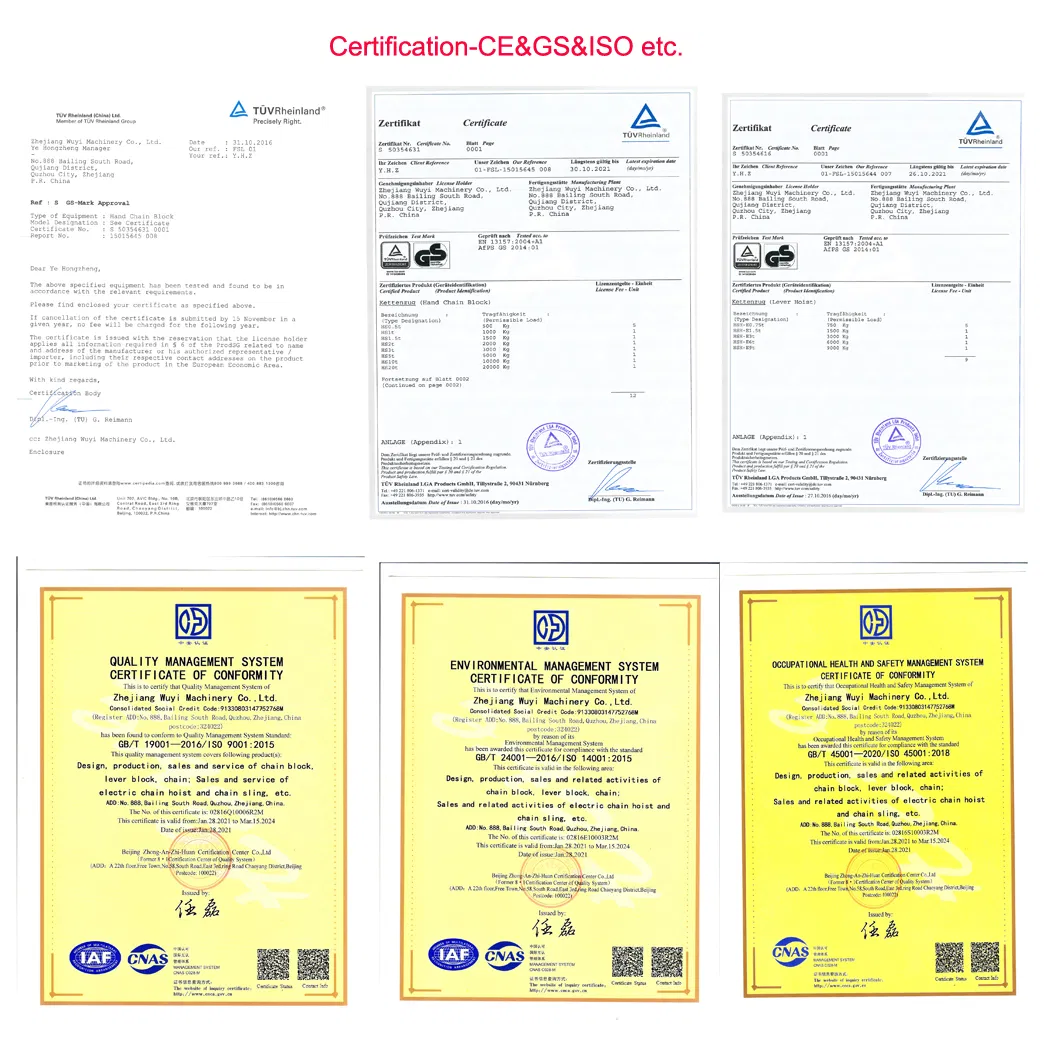

Lever Hoist 3

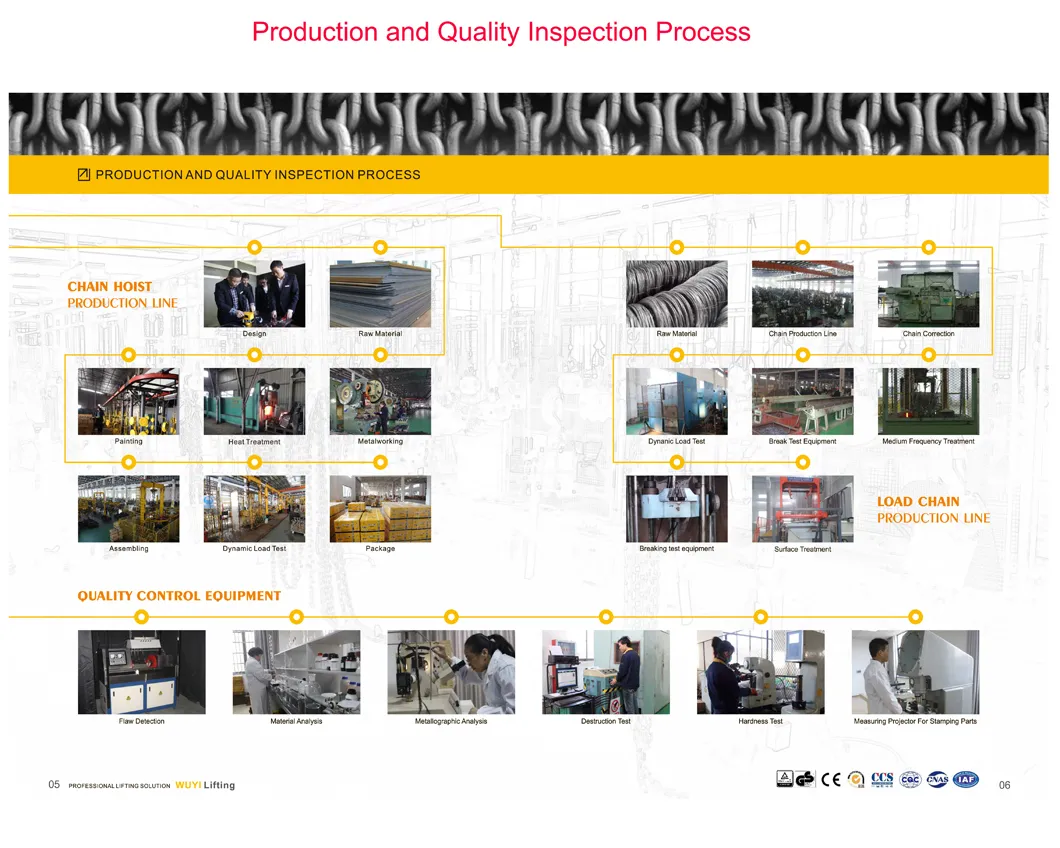

Lever Hoist 4

Lever Hoist 5

Lever Hoist 6

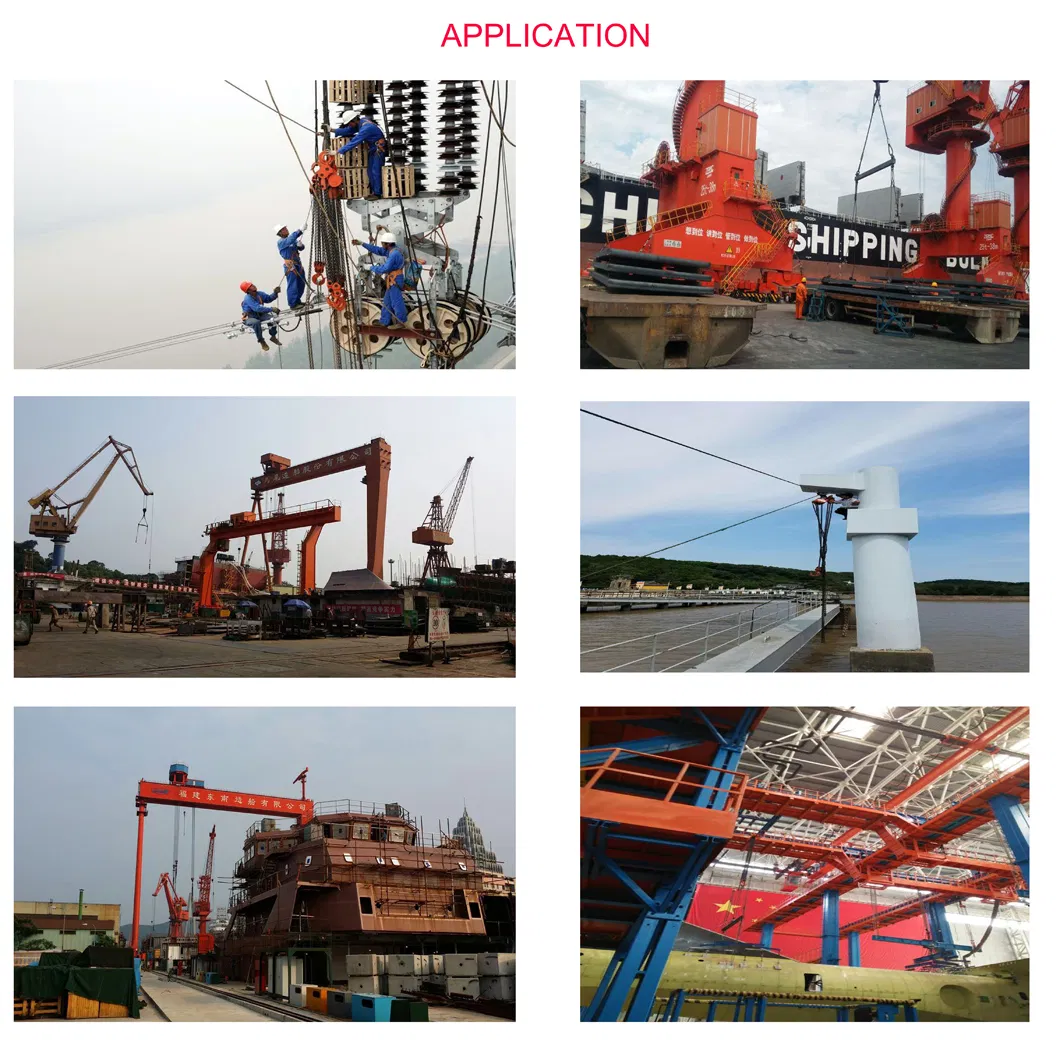

Lever Hoist 7

Frequently Asked Questions

What is the standard lifting height for this lever hoist?

The standard lifting height is 1.5 meters, but extra lift lengths can be provided upon request.

What kind of safety features are included?

The hoist features a double pawls brake system, non-asbestos brake discs, and drop-forged heat-treated hooks with safety latches.

How is the quality of the load chain?

We use self-manufactured superior G80 load chains that meet DIN standards for maximum durability and safety.

Are the hoists tested before delivery?

Yes, every unit undergoes a 100% running load test at 1.5 times the rated capacity and a static load test at 4 times the rated capacity.

What certifications do your products hold?

Our lever blocks are certified by CE, ISO9001:2000, and GS standards.

Do you offer OEM services?

Yes, professional OEM services can be provided to meet your specific branding and technical requirements.
