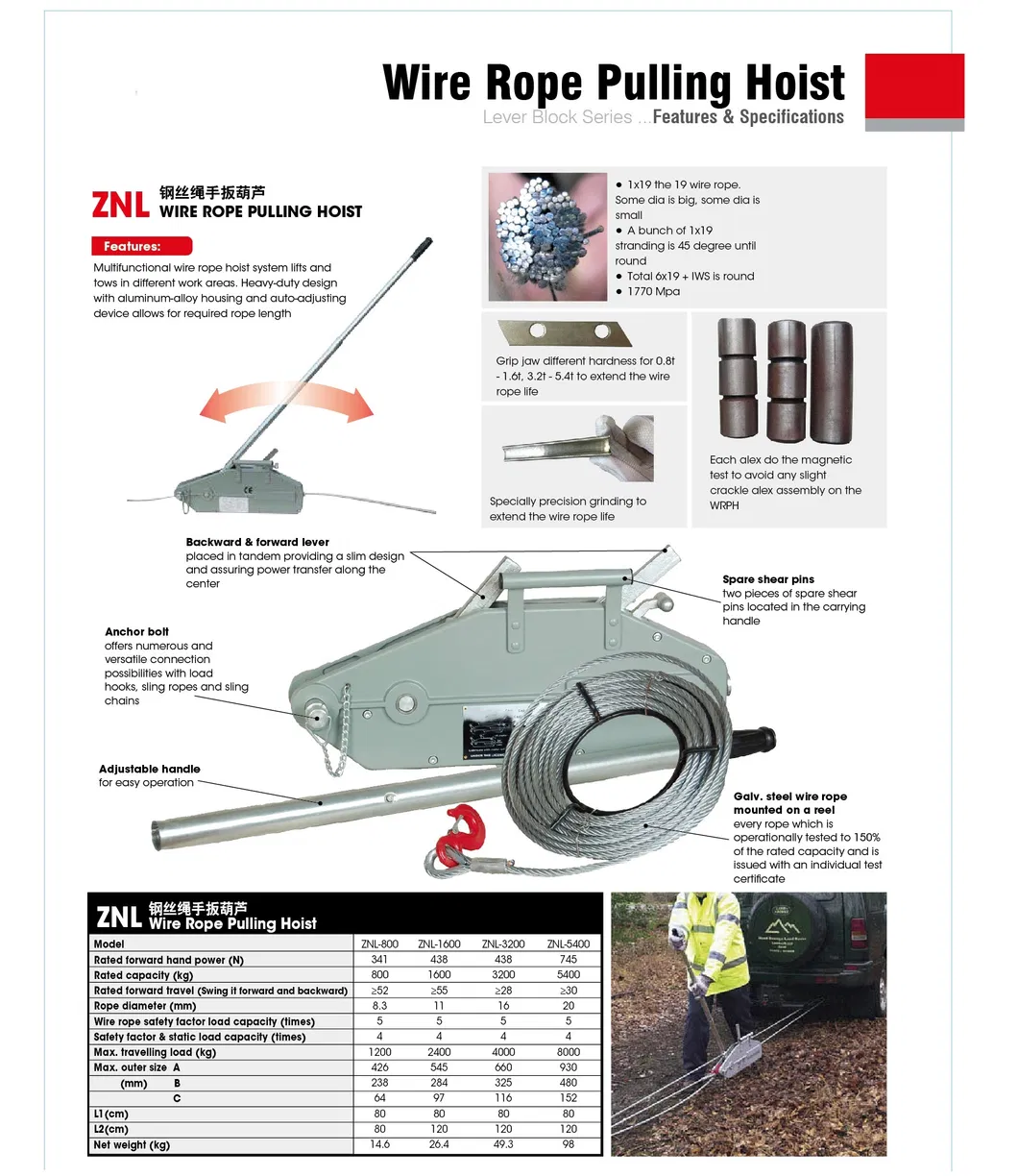

Basic Specifications
Certification
CE, ISO9001:2000

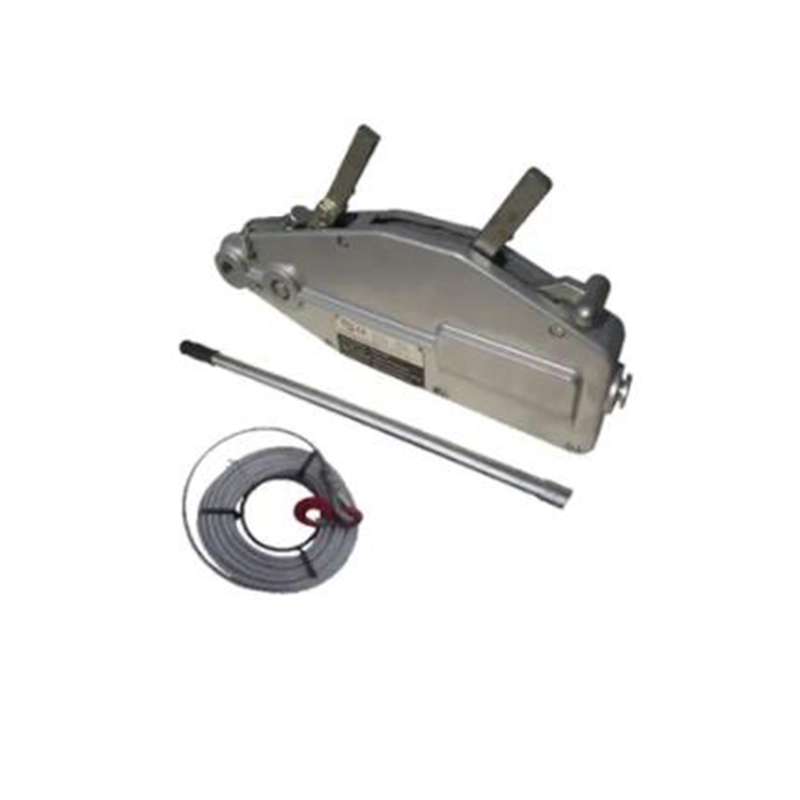

Tirfor Wire Rope Pulling Hoist Description
Wire Rope Pulling Hoist is a kind of small type hand-operated hoister. It's compact in structure, small in size, and light in weight. It features a longer operating life, less power expenditure, and considerably less rope wear.

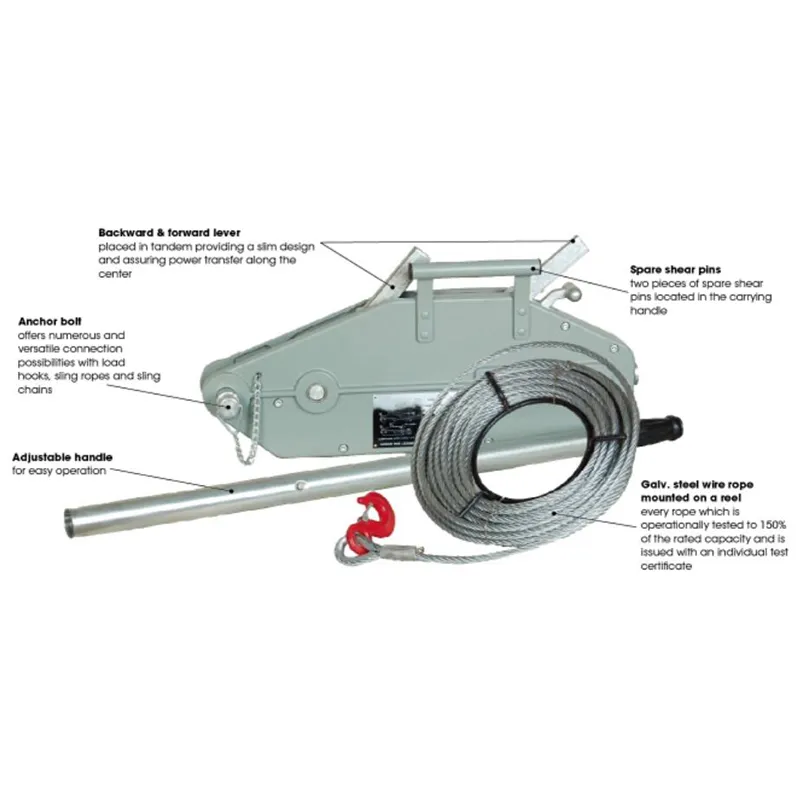

It is operated in accordance with the lever principle by means of pulling the forward handle or the backward handle manually to make it move to finish three performances such as lifting, pulling, and tensioning with less manual force to obtain the load of more tonnage.

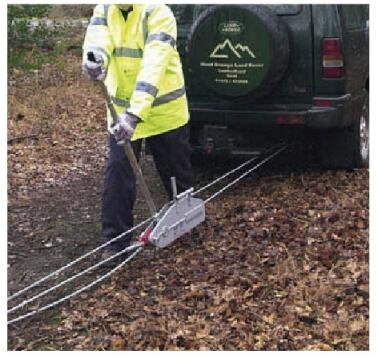

It's widely used in construction sites, laying of large pipes, installation and adjustments of machines, loading and unloading heavy and bulky goods, tensioning cables, heaping of forest products, obstacles removing etc.

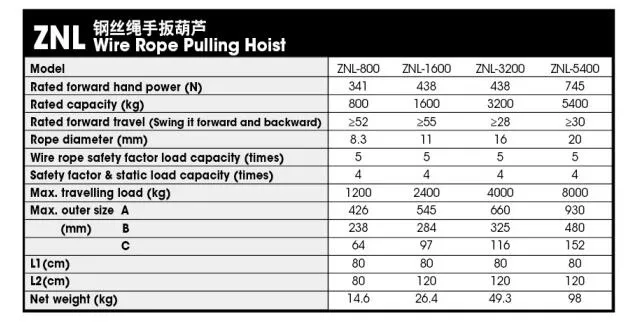

Technical Parameters
Professional Service Commitment
Before-Sale Service
01. Quality Control
Strict production requests based on signed contracts.
02. Delivery Time
Guaranteed delivery within the contracted timeframe.
03. Visual Confirmation
Production and packing photos sent upon completion.
04. Documentation
Efficient provision of all required customs clearance documents.
After-Sale Service (within 24 Hours)
01. Fast Response
Quick replies to all questions via online channels or email.
02. Quality Assurance
Responsibility for any manufacturing issues, including free replacement parts.
03. Safe Operation
Guidance on Operating Manuals to guarantee machine safety.
Lifting Product Range
Frequently Asked Questions
What are the primary functions of this wire rope hoist?
The Tirfor hoist is designed for three main performances: lifting, pulling, and tensioning loads using manual lever action.
What is the rated capacity for the ZNL-1600 model?
The ZNL-1600 model has a rated lifting capacity of 1600kg, making it suitable for heavy-duty manual applications.
In which industries is this pulling hoist commonly used?
It is widely used in construction, large pipe laying, machine installation, forestry for heaping products, and removing obstacles.
How does the hand-operated lever system work?
It works on a lever principle where moving the forward or backward handle manually generates significant tonnage movement with minimal manual force.
What certifications does the product carry?
The product is manufactured to high standards and carries CE and ISO9001:2000 certifications for quality and safety.
What support is provided if there is a quality problem?
We offer a 24-hour response service. If a quality problem results from manufacturing, we provide free repair parts or appropriate compensation.
