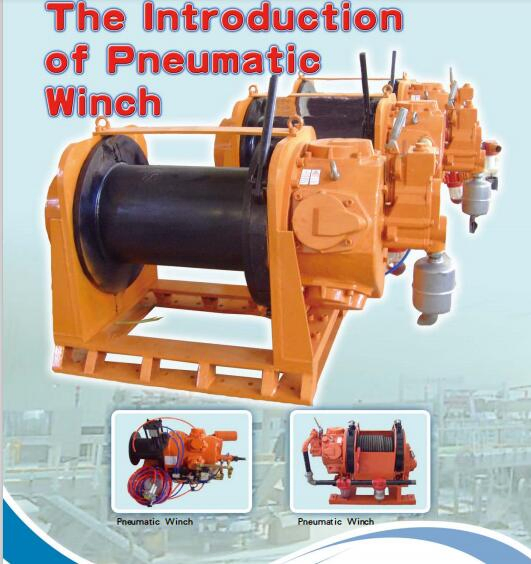

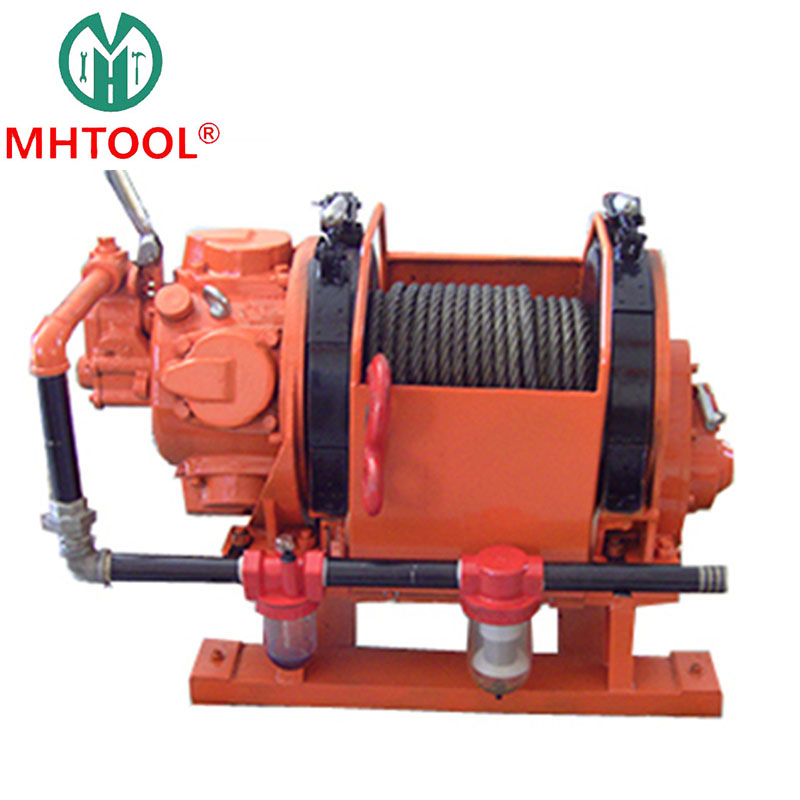

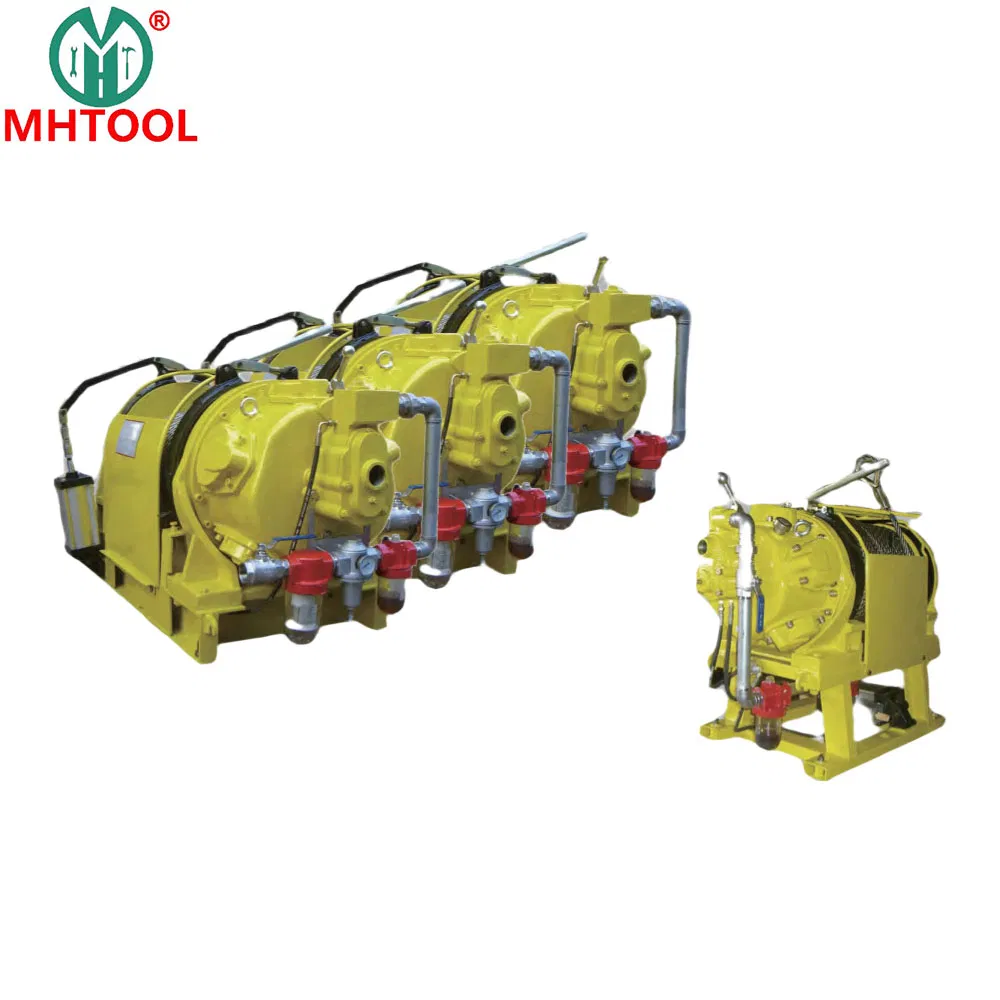

3ton Mining Pneumatic Small Mechanical Air Winch for Offshore Drilling Platforms

1 / 5

3ton Mining Pneumatic Small Mechanical Air Winch for Offshore Drilling Platforms

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.QJH30

TypeAir Winch

Driven TypeAC

SpeedFast

Carrying CapacityMiddle-Level

Tonnage2ton-15ton

Reel Number1

Running ModeMoving

FeatureAntiseptic, Insulating, Explosion-Proof

CertificationCE

StandardNational Standards

Lifting Height6m

Production Capacity4000sets/Year

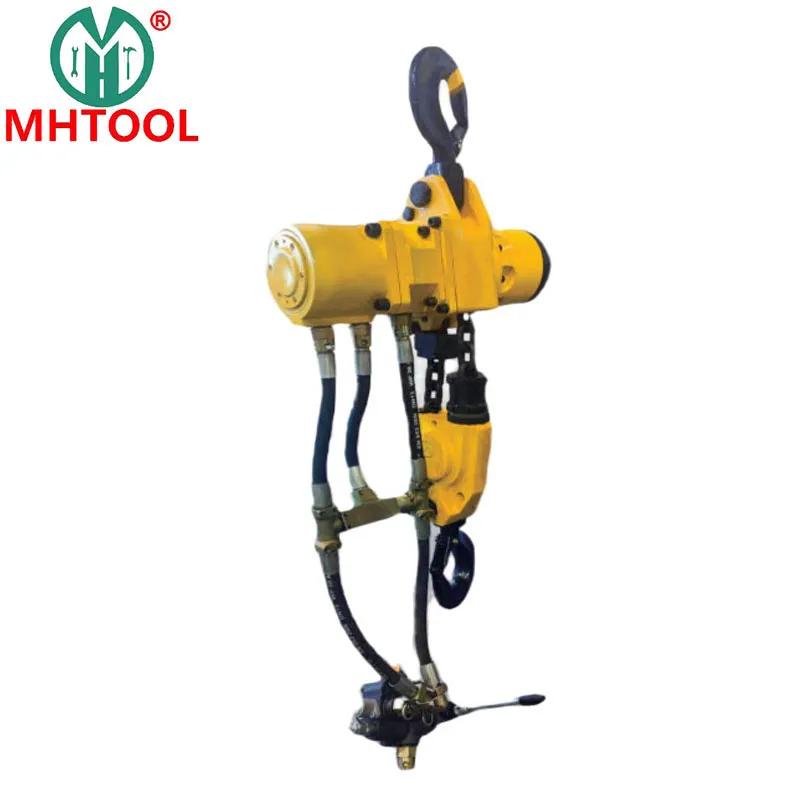

Hydraulic Hoist

The hydraulic hoist is applicable to special working places such as marine vessels, oil mining platforms and coal mines. It has stable transmission, strong bearing capacity, automatic lubrication to extend the service life of components, and special requirements for stepless speed change and low noise.

Technical Parameters (Hydraulic Hoist)

Model Items	HYD3	HYD6	HYD10	HYD16	HYD20	HYD25	HYD37	HYD50
Capacity (Ton)	3	6	10	16	20	25	37	50
Ascending Speed (m/min)	4	2	1.7	1.1	0.8	1.1	0.7	0.5
Descending Speed (m/min)	4.5	2.3	2.1	1.5	1	1.2	0.8	0.5
Rated Air Pressure (Mpa)	13	13	13	13	13	15	15	15
Motor Power (kW)	3.5	3.5	3.5	3.5	3.5	6	6	6

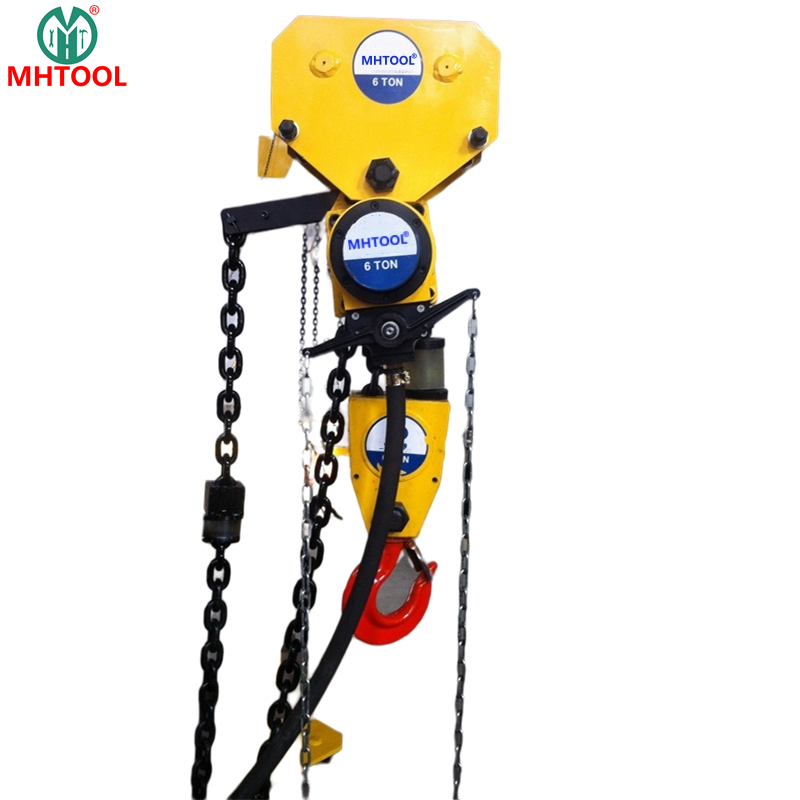

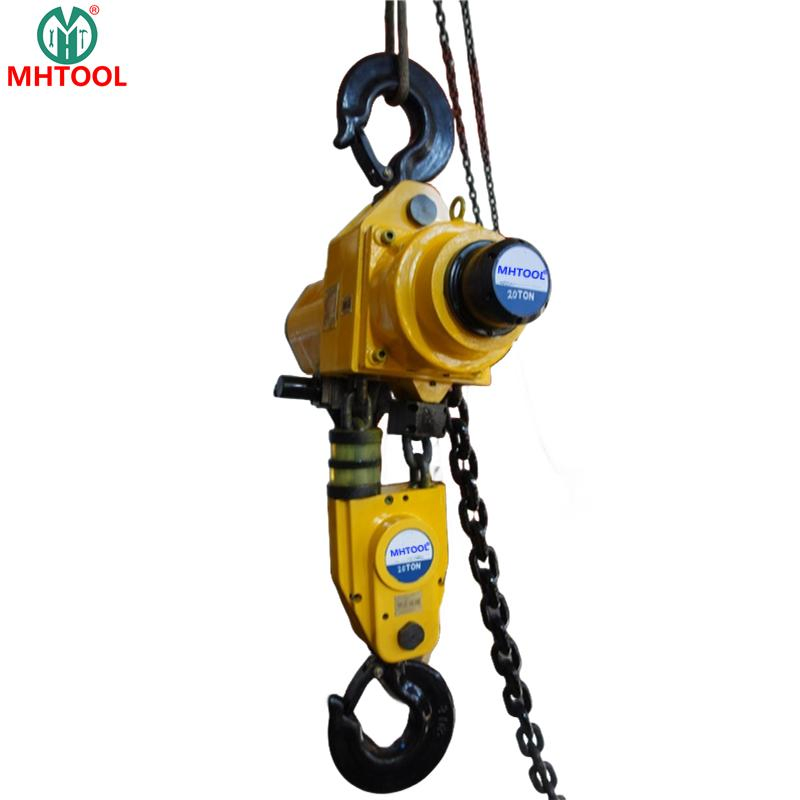

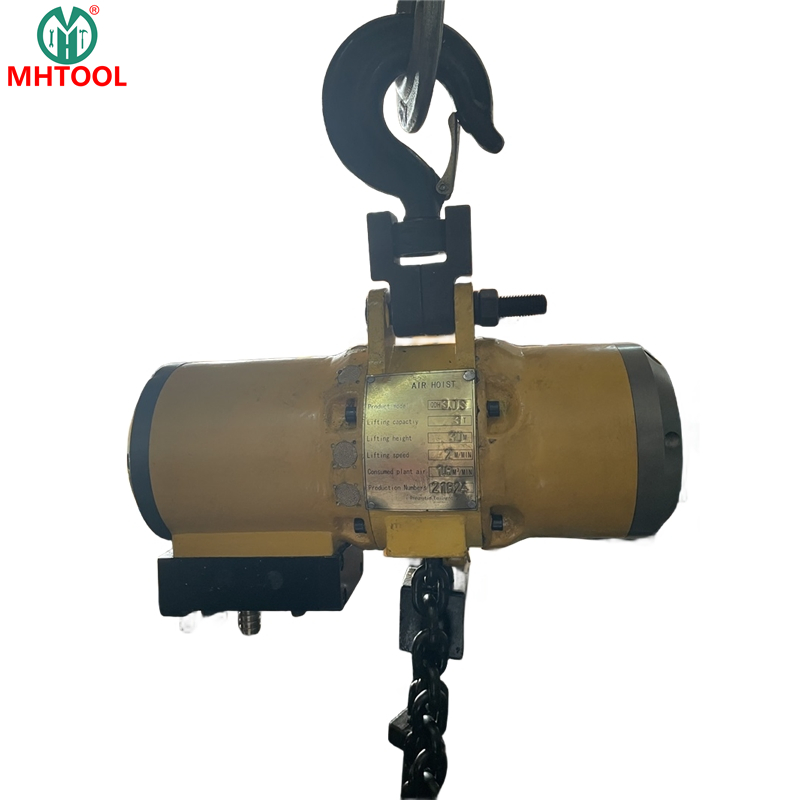

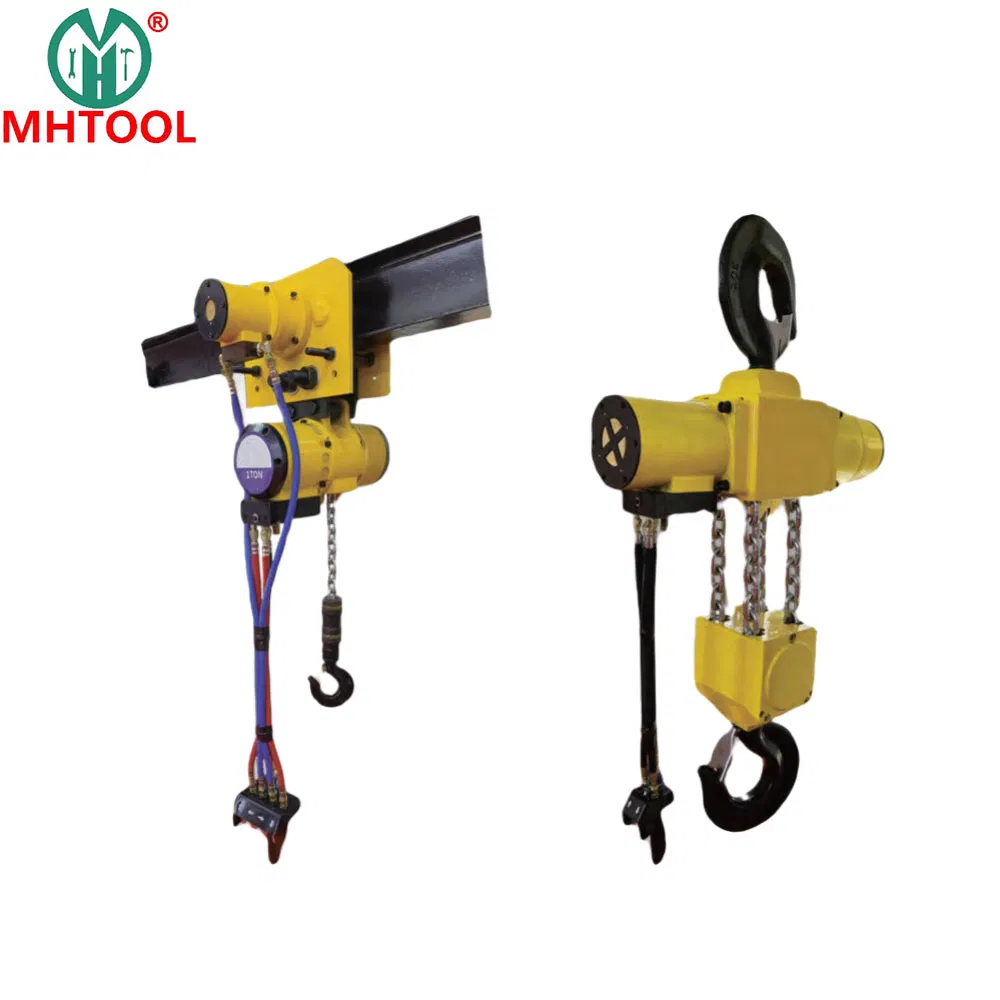

Pneumatic Air Chain Hoist & Trolley

Applications

Coal industry, the foundry industry, Chemical Industry, Pharmaceutical Industry, Nuclear power industry, metallurgical industry, appliance industry paint shop, Automotive, machining, Textile Industry.

Advantages

Suitable for complex and dangerous environment. Suitable for small work space. Fewer parts, a small amount of maintenance, long using life. Light weight, easy to operate.

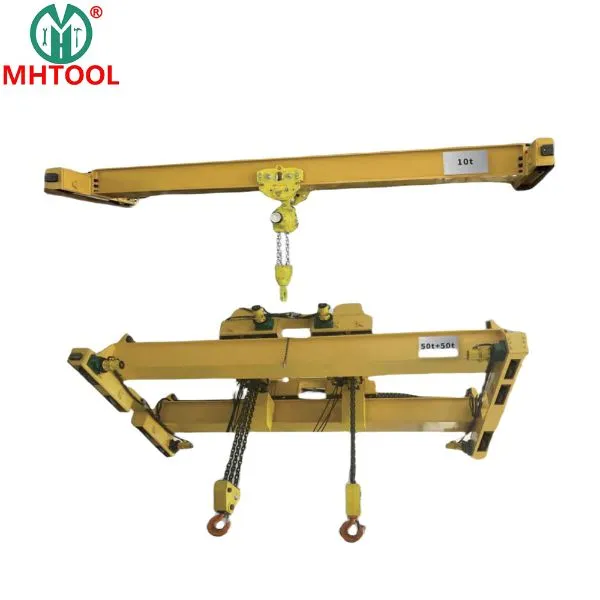

Pneumatic Single/Double Beam Traveling Crane

Technical Parameters (Single-beam Crane)

Capacity (t)	0.1	0.5	1	2	3	5	8	10
Hook Up (m/min)	6	5.4	4	2	1.4	0.75	0.4	0.4
Hook Down (m/min)	8	10	7	3.5	3	1.5	1	1
Trolley (m/min)	10-13				8-10

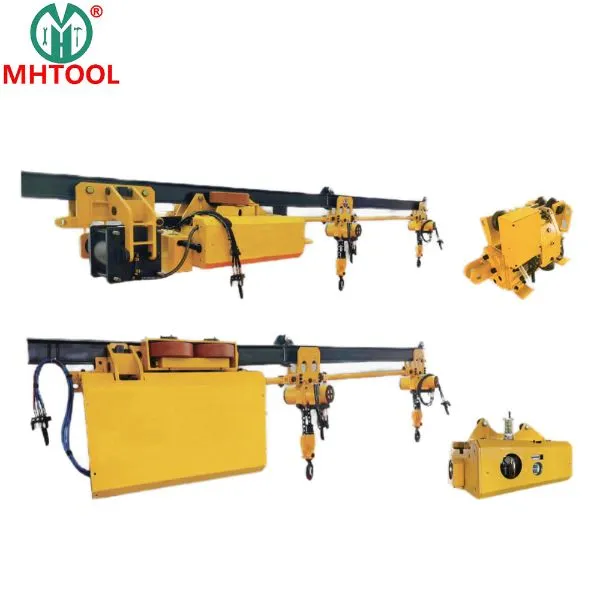

Pneumatic Monorail Crane

Model	DQ25	DQ40	DQ60	DQ100
Traction (kN)	≥25	≥40	≥60	≥100
Rated Air Pressure (MPa)	0.5	0.5	0.5	0.5
Traveling Speed (m/min)	24	24	24	24
Turning Radius Horizontal (m)	4	4	4	4
Operating Mode	Manual Control Or Remote Controller Control

Frequently Asked Questions

What environments are the hydraulic hoists suitable for?

These hoists are specifically designed for high-risk and specialized environments, including marine vessels, offshore oil mining platforms, and coal mines where stability and safety are paramount.

Do your pneumatic products support remote operation?

Yes, many of our pneumatic systems, such as the Monorail Crane, offer optional remote controller control with a distance of ≥30 meters for enhanced operator safety.

What makes the Pneumatic Air Chain Hoist advantageous for small spaces?

The pneumatic chain hoists feature a compact design with fewer parts, making them lightweight and easy to operate in restricted workspaces while requiring minimal maintenance.

What are the safety features of the QJH30 Model?

The QJH30 model is built with explosion-proof, antiseptic, and insulating features, meeting national and CE standards for operation in volatile industrial settings.

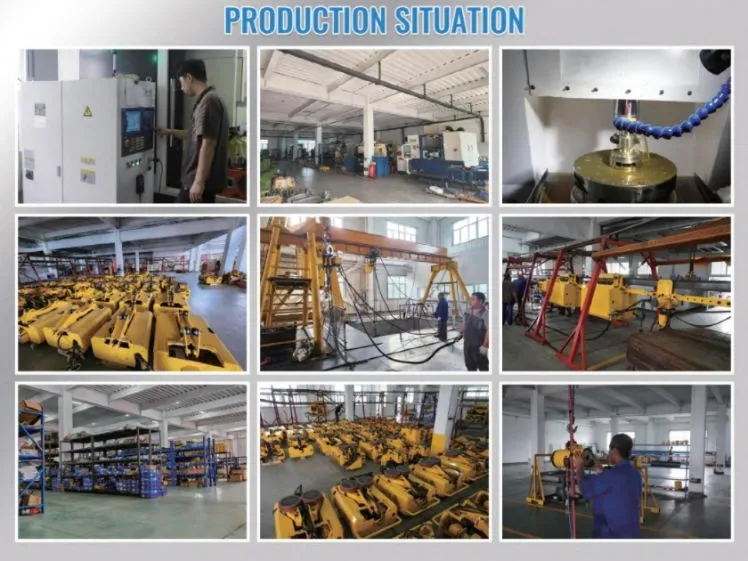

What is the typical production capacity for these units?

Our current production facility has a robust capacity of approximately 4000 sets per year to ensure timely delivery for large-scale industrial projects.

How is the lubrication handled in the hydraulic systems?

The systems feature automatic lubrication mechanisms designed to extend the service life of internal components and maintain smooth, stepless speed transitions.
