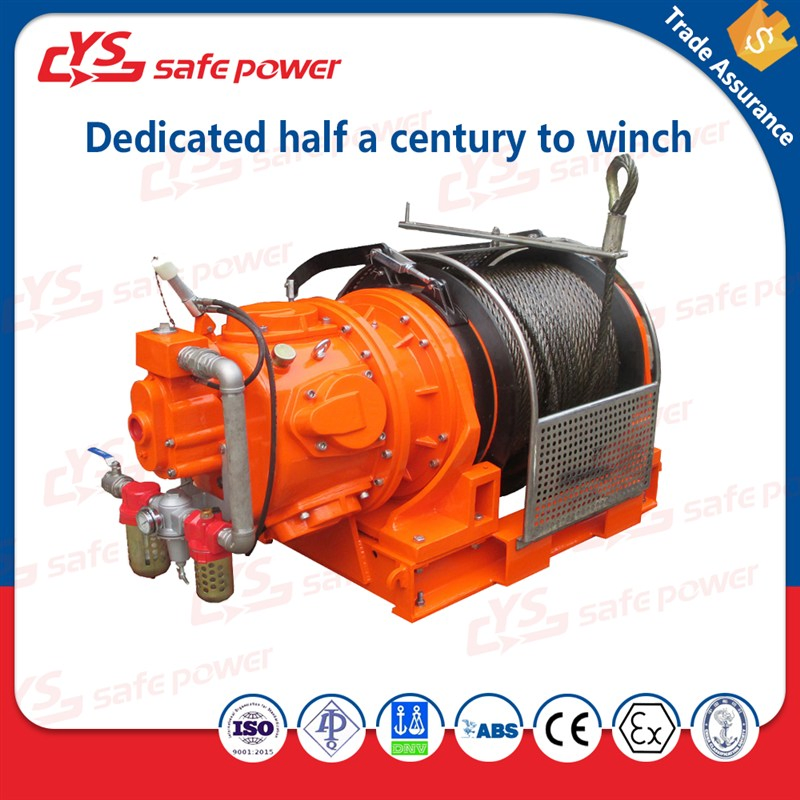

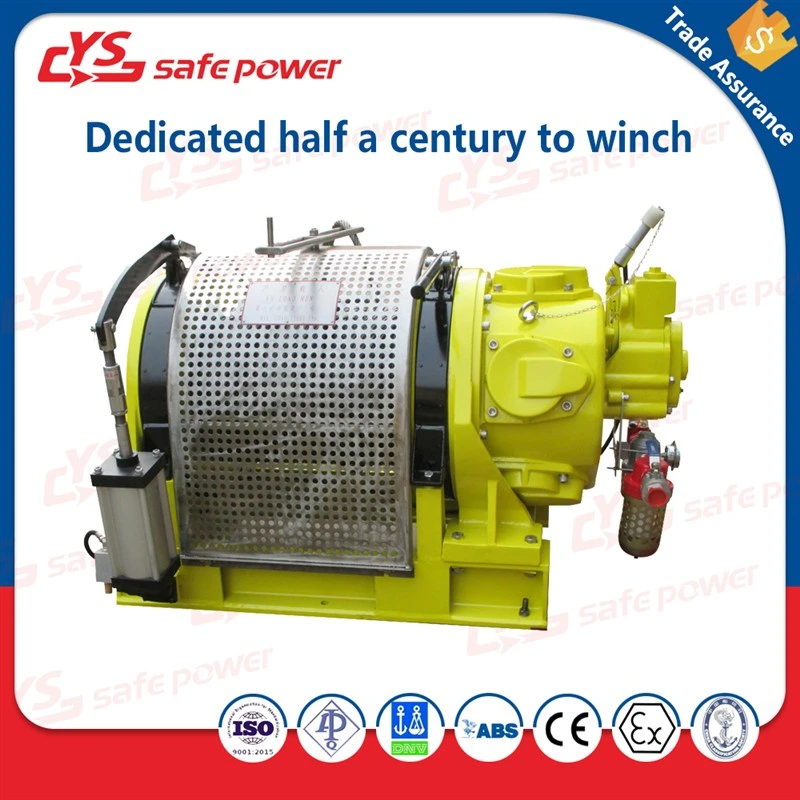

ABS Certified Auto Brake Air Winch for Offshore and Mining From 1t to 10t

1 / 4

ABS Certified Auto Brake Air Winch for Offshore and Mining From 1t to 10t

Customization:	Available
Warranty:	12 Months
Type:	General Use

Send Inquiry

Product Description

Basic Specifications

Model NO.

JQH100

Driven Type

Pneumatic/Air

Speed

Fast

Carrying Capacity

Weight Level

Tonnage

10T

Reel Number

Running Mode

Stationary

Feature

Explosion-Proof, CCS/ABS/Dnv

Certification

CE, ISO 9001

Material

Stainless Steel

HS Code

842539

Capacity

100sets Per Month

Product Overview

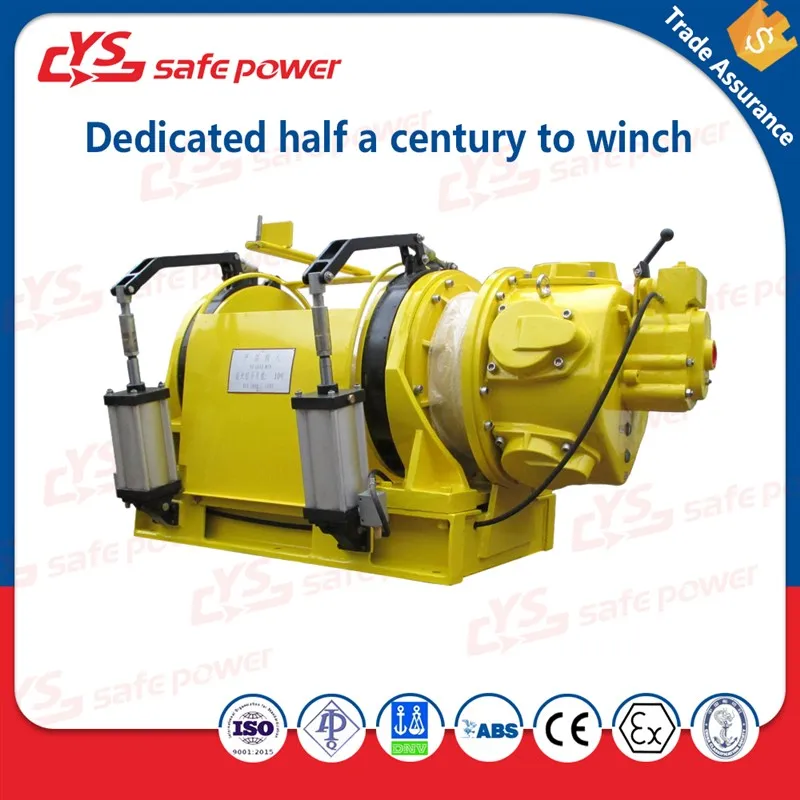

JQHS Series air winch is a kind of manual operated single drum type air winch. It adopts compressed air as power to drive the air motor, driving the drum via two grades gear to reduce transmitting speed and enlarge torque, enabling it to lift and drag heavy cargo efficiently.

Technical Parameters

Items	Parameters	Measurement Unit
Rated Working Pressure	0.8	MPa
Rated Full Force	100	KN
Rated Cable Speed	12	m/min
Motor Rated Power	30	KW
Air Consumption	400	L/s
Drum Diameter	300	mm
Drum Width	620	mm
Cable Storage	200	m
Configuration (LWH)	1700mm1050mm1200mm
Weight	1300	KG
Brake Type	Hand Brake and Auto Band Brake

Standard Features

◈Suitable for "HAZARDOUS AREAS" (Explosive, high-temp, humid sites).

◈Automatic disc-type holding brake and manual band brake.

◈Heavy-duty steel fabricated drum and frame.

◈Compact design for better mobility and easy maintenance.

Available Options

✚Grooved, divided or extended length drums.

✚Air preparation packages: filter, lubricator, strainer, and regulator.

✚Remote pendant control and muffler.

✚Special paint: zinc rich primer, epoxy top coats.

Industry Expertise & Customization

With a history spanning 47 years, we serve a wide variety of industries including marine, mining, manufacturing, material handling, and construction. Products are manufactured to the highest industrial and quality standards.

Specialization in custom products ensures that unique application needs are met. Our engineering staff can consult, design, and modify products to provide the best possible solution for your lifting needs.

Packaging & Shipping

How to Find the Right Winch

?Is it for lifting or pulling?
?What is the required weight capacity?
?What rope length and diameter are required?
?What line speed and power source are available?
?Are special controls or a freewheeling clutch needed?

Frequently Asked Questions

Q1: Can the air winch be used in explosive environments?

Yes, the JQH Series air winch is designed for hazardous areas, including explosive, high-temperature, and humid environments where electricity is unusable.

Q2: What kind of braking system does the winch have?

It is equipped with both an automatic disc-type holding brake and a manual band-type holding brake for double safety.

Q3: What is the power source for this winch?

This winch is powered by compressed air, which drives a piston-type air motor.

Q4: Are custom drum sizes available?

Yes, we offer options for grooved, divided, and extended length drums to suit specific rope requirements.

Q5: What certifications do these winches hold?

The winches are manufactured under ISO standards and can be supplied with CCS, ABS, CE, or DNV certifications.

Q6: Is maintenance difficult for the JQH100 model?

No, the winch is designed for reliable day-to-day operation and is engineered to be easy to service, maintain, and repair.
