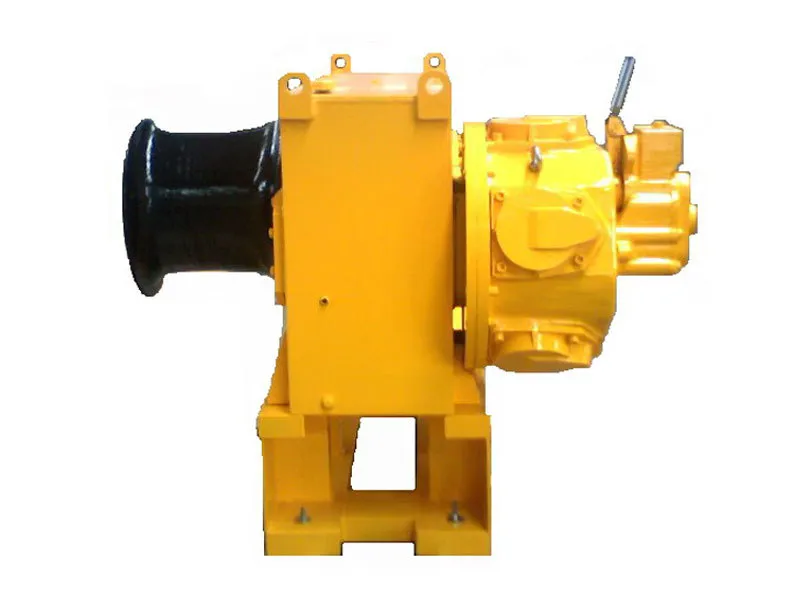

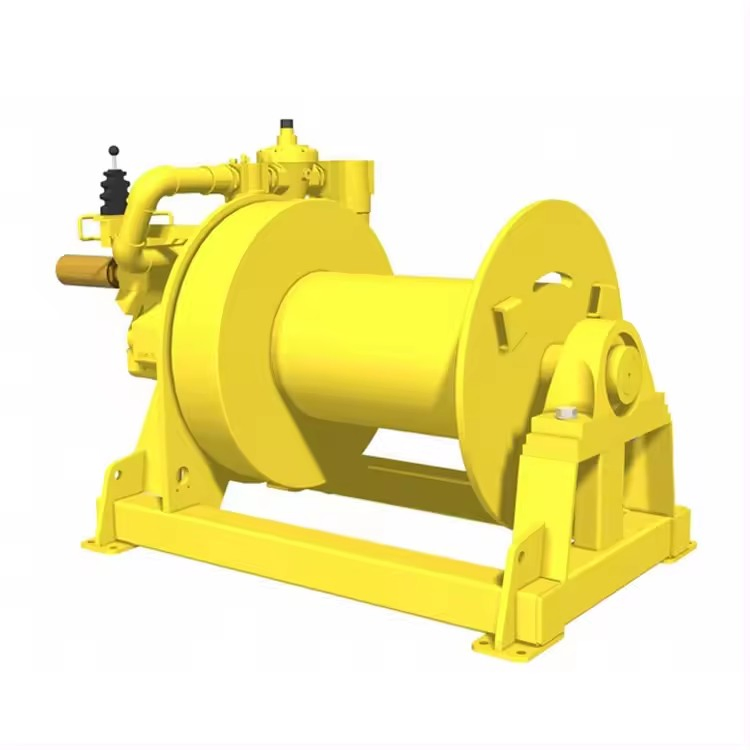

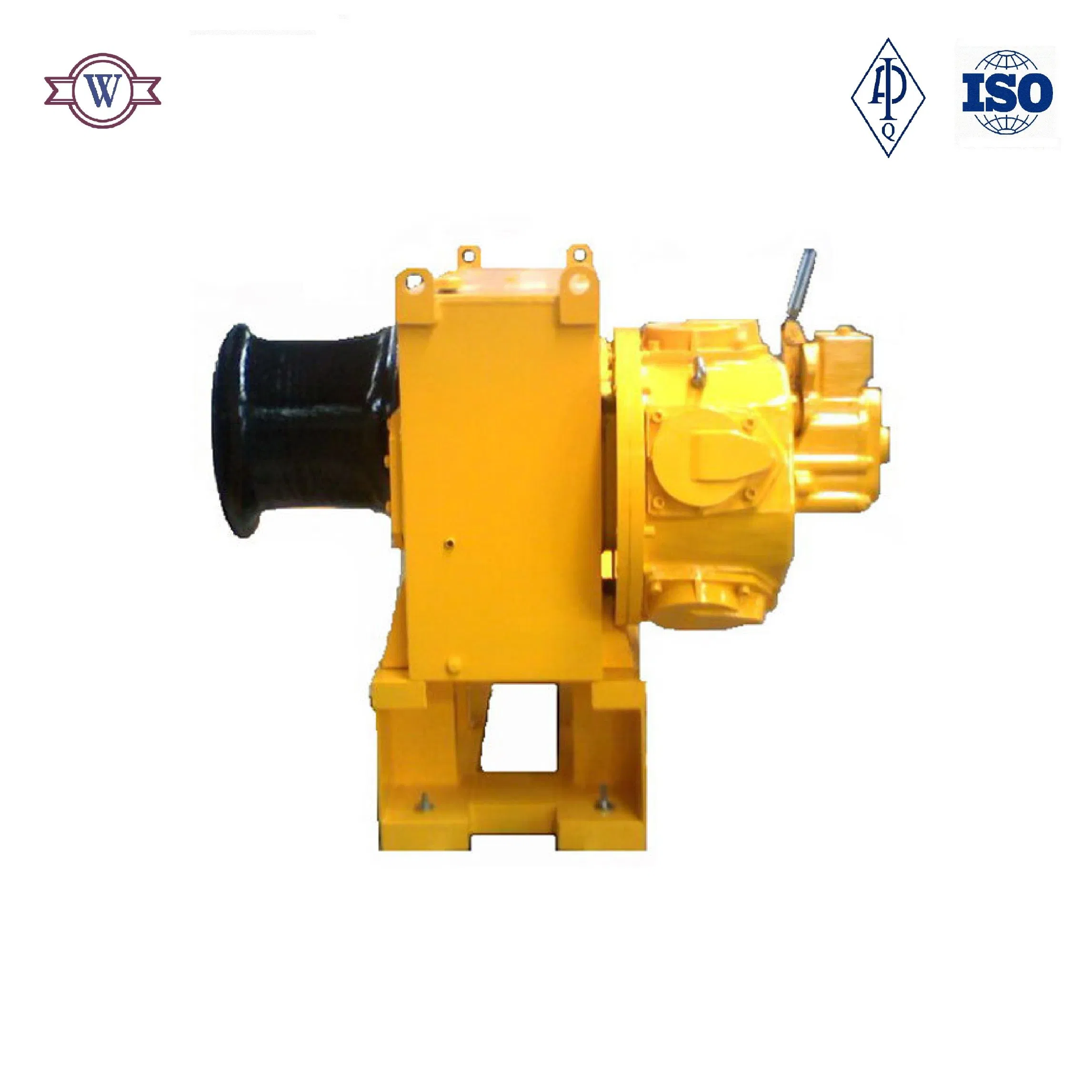

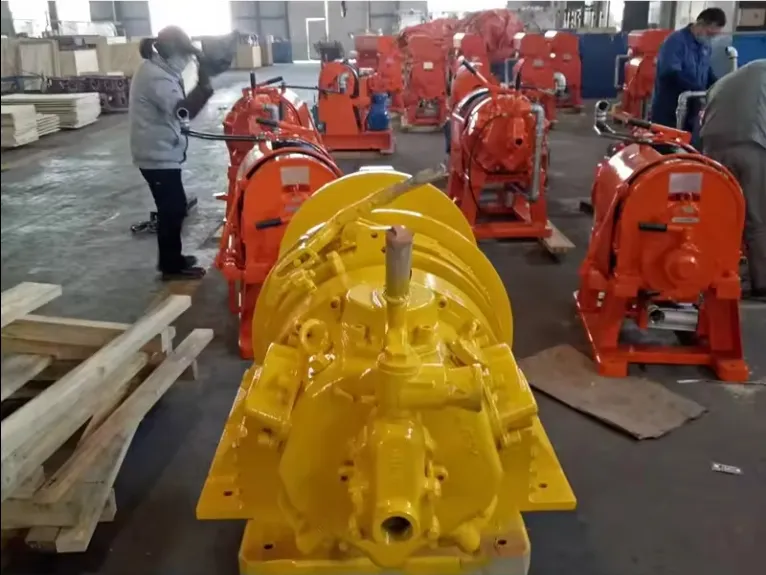

QJP series pneumatic winch is powered by piston air motive. This type of winch is mainly used for oil field drilling, metal mining, coal mining, towage of construction engineering and ascending heavy objects.
It features in small volume, light weight, adjustable speed, and easy transport and quick installation; therefore, it is more applicable for borehole operation of mining, such as scheduling in digging wells and the mining loading station of working face, towage of tramcar and underground ascending in the narrow alley.
It is especially suitable for the oil fields, geological drilling, mining and the places with explosive, flammable gas. We have developed a series of new type of remote electronic control air-break brake type pneumatic winch, combining regular brake with two sets of lifting control system.
| No. | Technical Parameters | Model: QJP |
|---|---|---|
| 1 | Rated air intake pressure (MPa) | 0.8 |
| 2 | Max. lifting force (kN) | 5 |
| 3 | Max. lifting speed (m/min) | 48 |
| 4 | Air motor Rated power (kW) | 2.6 |
| 5 | Number of cylinders | 6 |
| 6 | Cylinder diameter / Piston travel (mm) | 65 / 50 |
| 7 | Drum Diameter / Width (mm) | 180 / 200 |
| 8 | Wire capacity / Diameter (m / mm) | 60 / 8 |
| 9 | Dimension (L*W*H mm) | 680 * 350 * 465 |
| 10 | Net weight (kg) | 116 |
