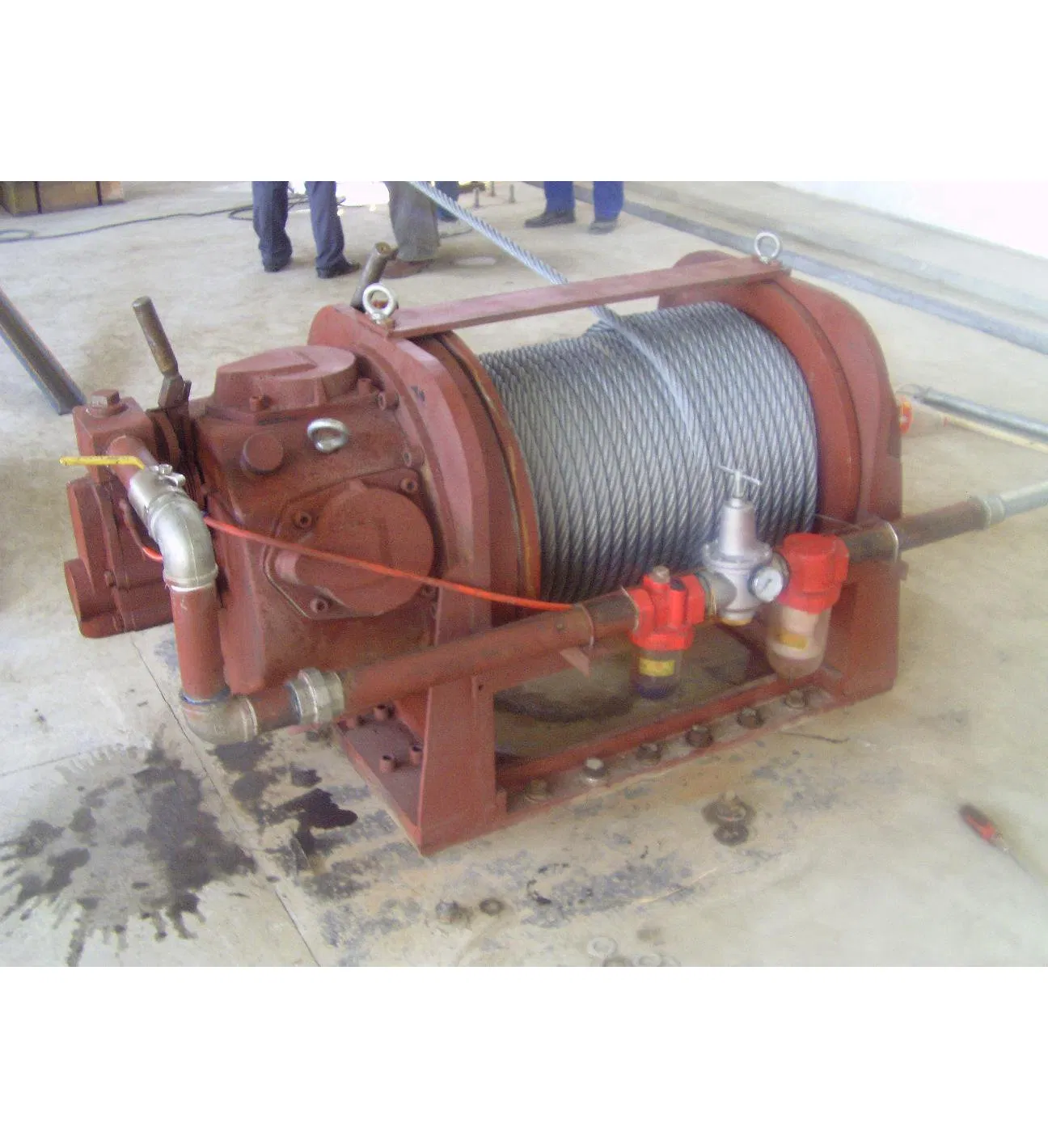

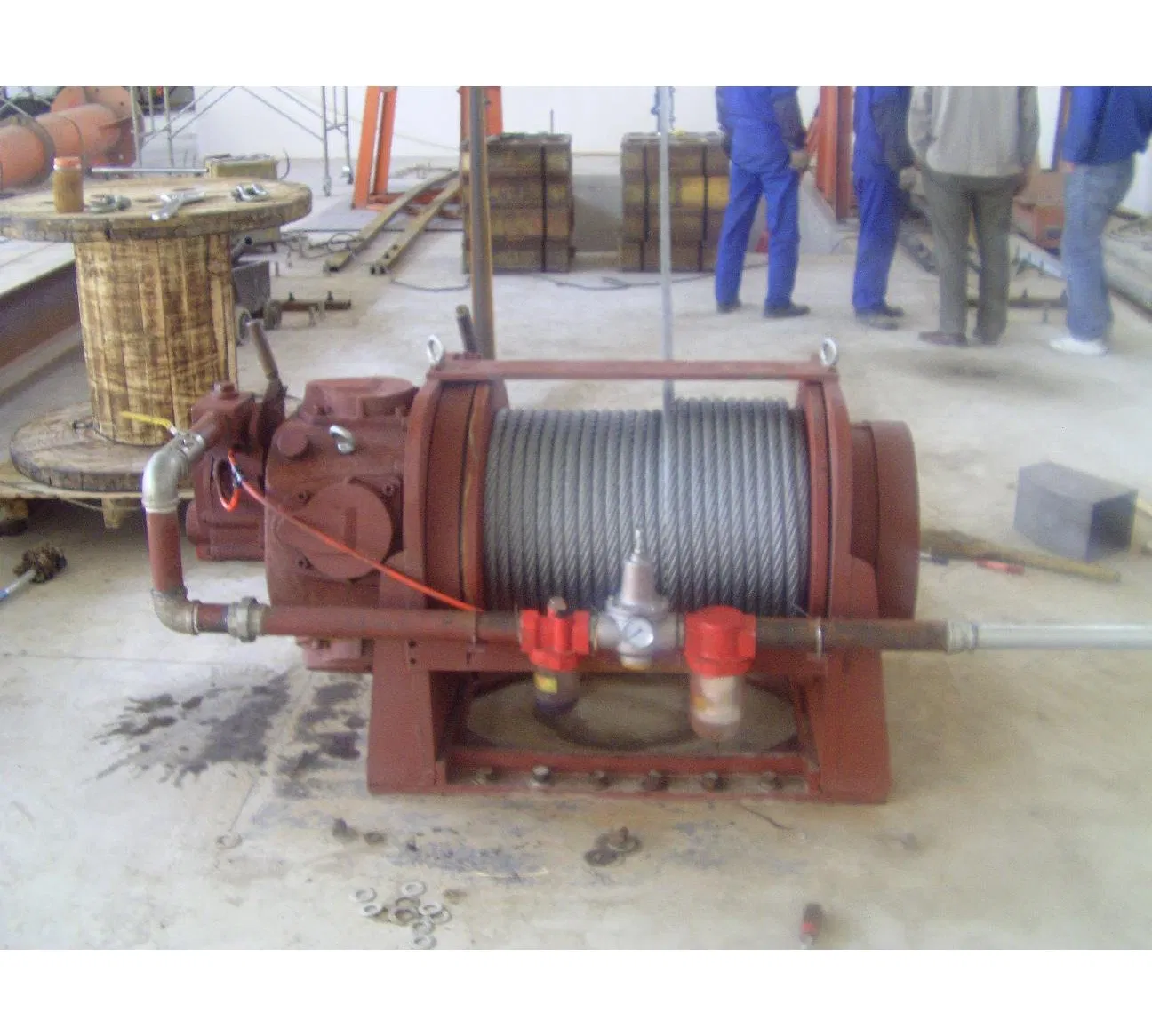

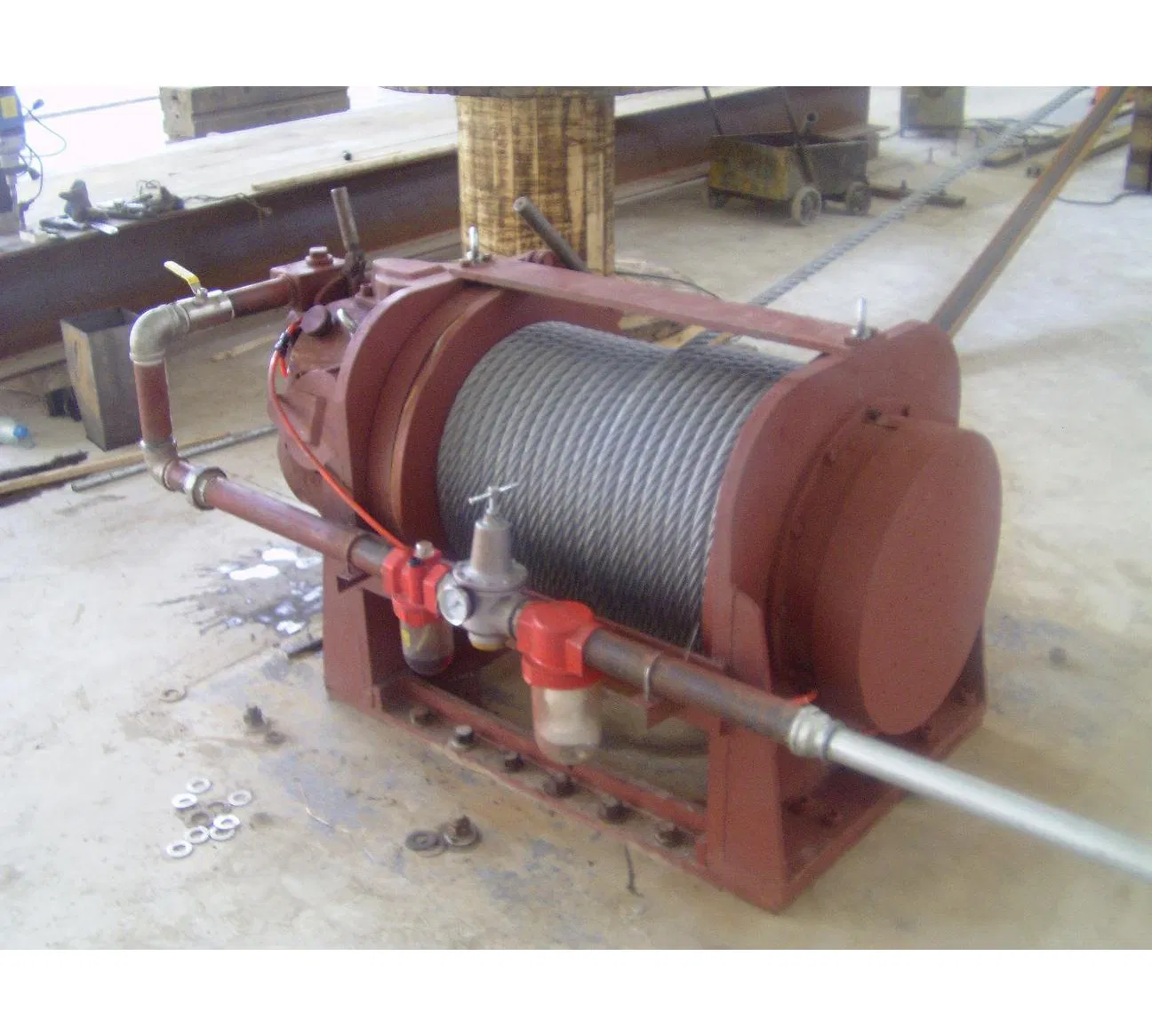

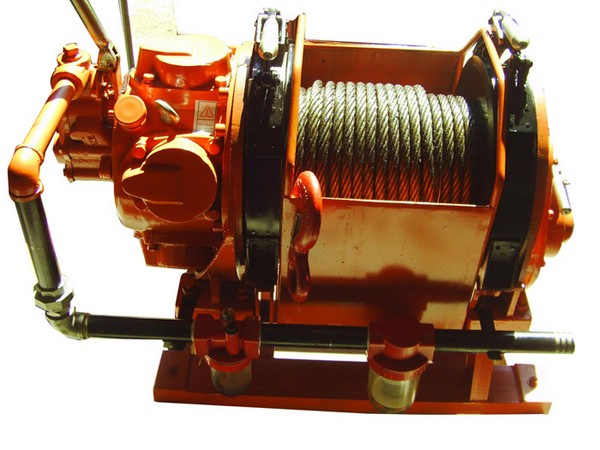

Ex-Proof 10 Ton Air Pneumatic Wire Rope Winch for Oil Gas Coal Mine Industry

1 / 5

Ex-Proof 10 Ton Air Pneumatic Wire Rope Winch for Oil Gas Coal Mine Industry

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

QDJC100

Type

Construction Winch

Driven Type

Air

Speed

Fast

Tonnage

10T

Feature

Explosion-Proof

Capacity

10000kg

Lifting Speed

6m/Min

Rated Power

30kw

Air Intake Pressure

0.6-0.8 Mpa

Standard Wire Capacity

100m

Origin

China

📦 Packaging & Delivery

Package Size

170.00cm * 100.00cm * 100.00cm

Package Gross Weight

1500.000kg

Transport Package

Wooden Case

⚙️ Product Description

Ex-proof 10 Ton air Pneumatic wire rope Winch for Oil gas coal mine Industry

We can provide:

Spark proof air chain hoist ( from 0.1 ton---50 tons)
Air trolley ( from 0.1 ton---50 tons)
Pneumatic cranes ( 0.5 tons----10 tons)
Flame-proof Monorail Trolley(0.5 tons---30 tons)
Chain Blocks and Chain hoist without spark( 0.5 tons---30 tons)
Air balancer(60kg----880kgs)
Hand hydraulic carrier
Mobile horizontal hydraulic jack car
Movable gantry crane
Aluminum alloy triangle hoisting frame

AIR WINCH (0.5 ton---20ton) with hand brake and disk brake

Model	QDJC-5	QDJC-10	QDJC-20	QDJC-30	QDJC-50	QDJC-100	QDJC-150	QDJC-200
Max. lifting force	5KN	10KN	20KN	30KN	50KN	100KN	150KN	200KN
Max. lifting speed	48 m/min	30 m/min	24 m/min	20 m/min	12 m/min	6 m/min	4 m/min	3 m/min
Rated power	2.7 KW	4.1 KW	4.6 KW	10.2 KW	16 KW	30 KW	32 KW	40 KW
Air intake pressure	0.6--0.8 Mpa
Standard Wire capacity	120m	120m	100m	100m	100m	100m	100m	100m
Diameter of wire	7.8mm	12mm	14mm	16mm	20mm	26mm	28mm	30mm
Net weight	70Kg	160Kg	170Kg	310Kg	500Kg	1300Kg	1700kg	2000kg

❓ Frequently Asked Questions

Q1: What is the maximum lifting capacity of the QDJC100 air winch? A1: The QDJC100 model has a rated capacity of 10,000kg (10 Tons).

Q2: What is the required air intake pressure for operation? A2: The standard operating air intake pressure is between 0.6 and 0.8 Mpa.

Q3: Is this equipment suitable for hazardous environments like coal mines? A3: Yes, this air winch is Ex-proof (Explosion-proof), making it ideal for oil, gas, and coal mine industries.

Q4: What is the standard wire rope capacity for the 10T winch? A4: The standard wire capacity is 100 meters with a wire diameter of 26mm.

Q5: What kind of braking system does the winch use? A5: Our air winches are equipped with both hand brake and disk brake systems for enhanced safety.

Q6: How is the product packaged for international shipping? A6: The product is securely packed in a robust wooden case to ensure safety during transit.
