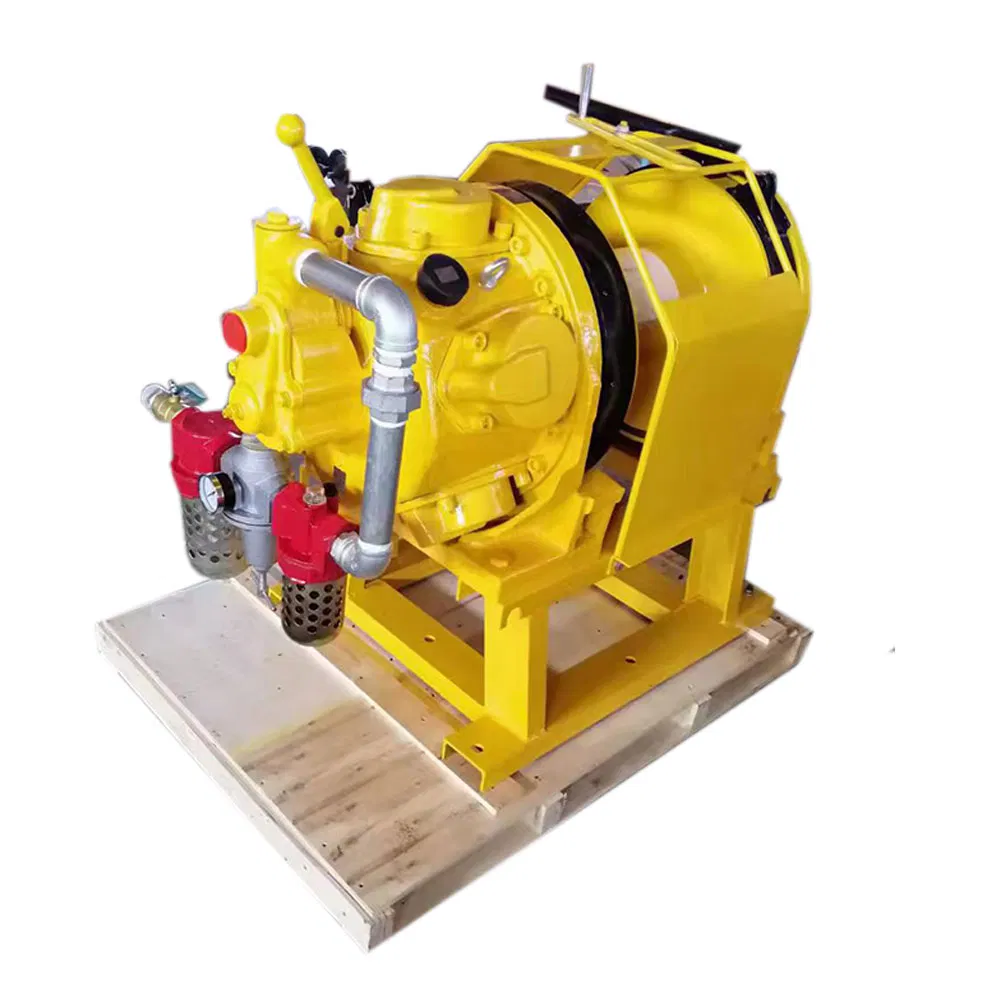

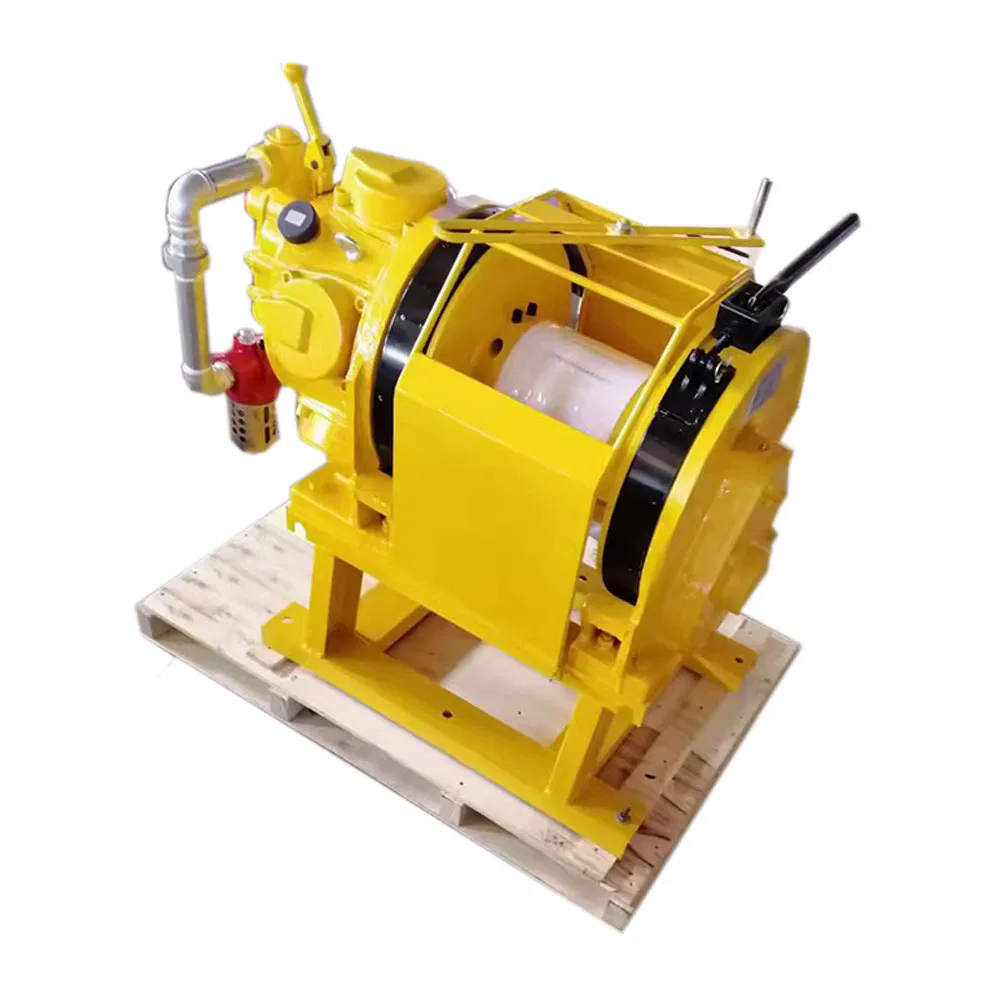

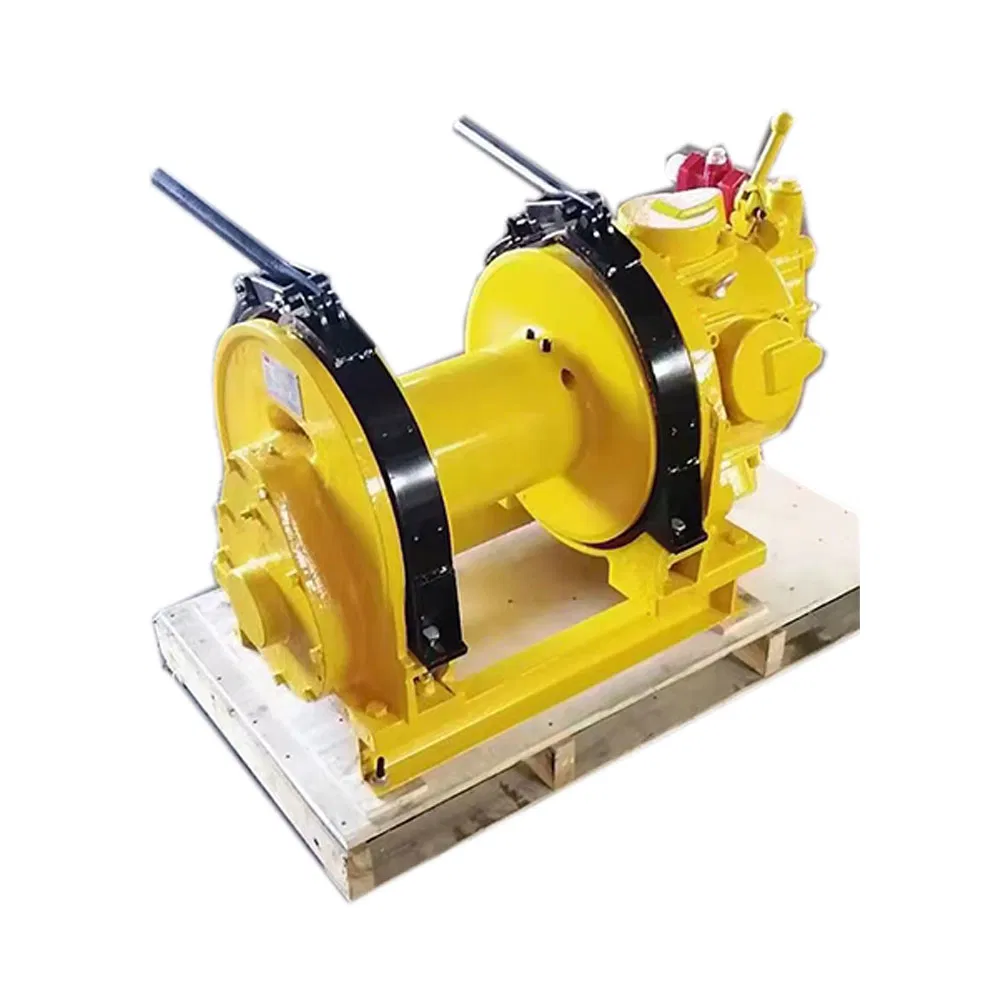

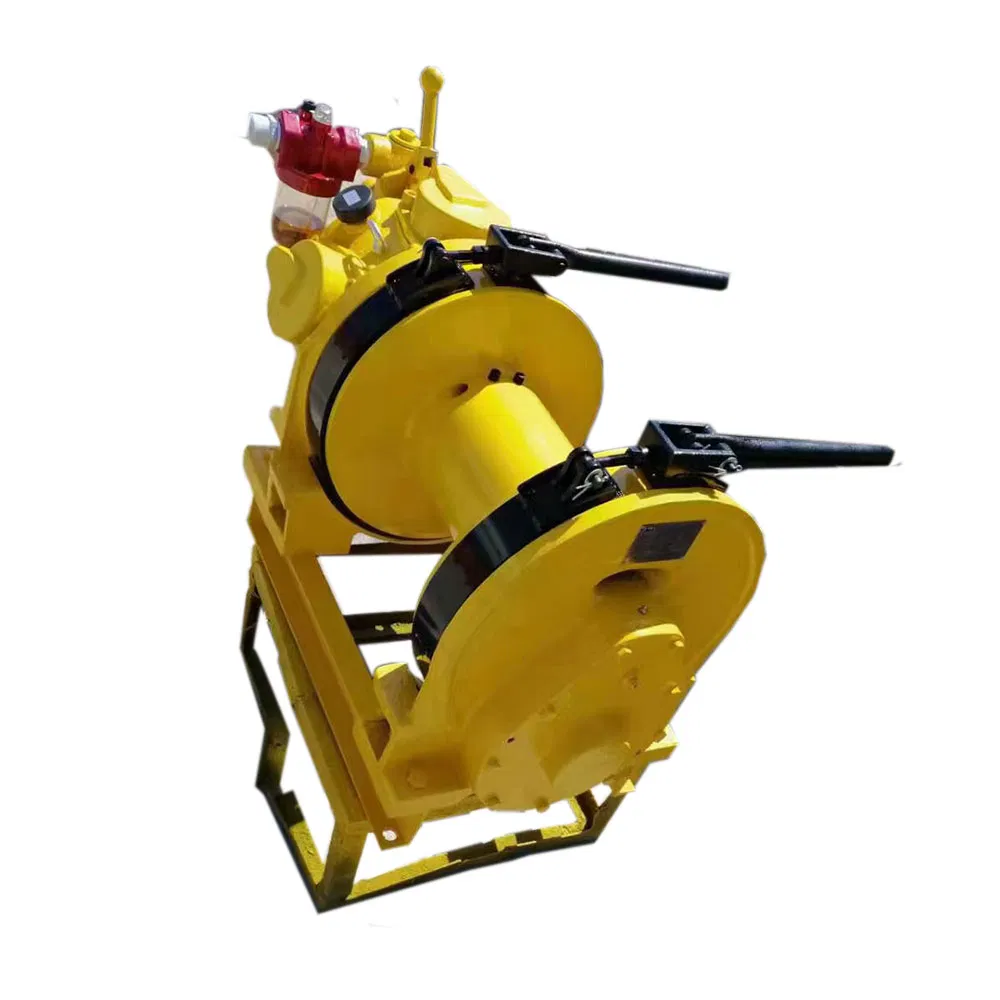

Hydraulic Air Winch with 300 Average Static Tension Capacity

1 / 5

Hydraulic Air Winch with 300 Average Static Tension Capacity

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Type:

Electric Winch

Driven Type:

Hydraulic

Speed:

Slow

Tonnage:

Running Mode:

Moving

Feature:

Antiseptic, Insulating, Explosion-Proof

Certification:

Standard:

National Standards

Static Tension:

300

Motor Power (Kw):

Motor Voltage (V):

380/660

Rotate Speed:

980 R/Min

Specification:

3300*1077*1034 mm

Product Description

Coal Mining Explosion-Proof Electric Small Lifting Hoist Dispatch Winder: Your ultimate heavy-duty winch for underground mining, tunnel lifts, and hydraulic dispatching. Meticulously crafted to endure the rigorous demands of mining operations, this solution provides unrivaled reliability and safety in hazardous environments.

The system is a pivotal instrument for the efficient maneuvering of tramcars underground. Equipped with an advanced explosion-proof electric mechanism, this winch is exceptionally suited for collieries and other gas-prone mines, delivering unmatched safety and optimal performance.

Key Advantages:

Masterfully engineered for explosion-proof safety.
Ideal for both mine and surface mine car loading operations.
Innovative planetary gear drive for compact structure and rigidity.
Simple installation and relocation process.
Smooth braking system and low noise levels for an optimized working environment.

Technical Parameters

Scraper Winch Model	2JPB-7.5	2JPB-15	2JPB-22	2JPB-30	2JPB-55
Average Tension (N)	8000	14000	20000	275000	44000
Main Rope Speed (m/s)	1.0	1.10	1.20	1.20	1.20
Motor Power (KW)	7.5	15	22	30	55
Total Weight (kg)	390	660	980	1155	2125

Dispatching Winch Model	JD-1	JD-1.6	JD-2.5	JD-4
Static Tension (KN)	10	16	25	40
Rope Dia. (mm)	12.5	15	18.5	21.5
Motor Power (KW)	11.4	25	40	55

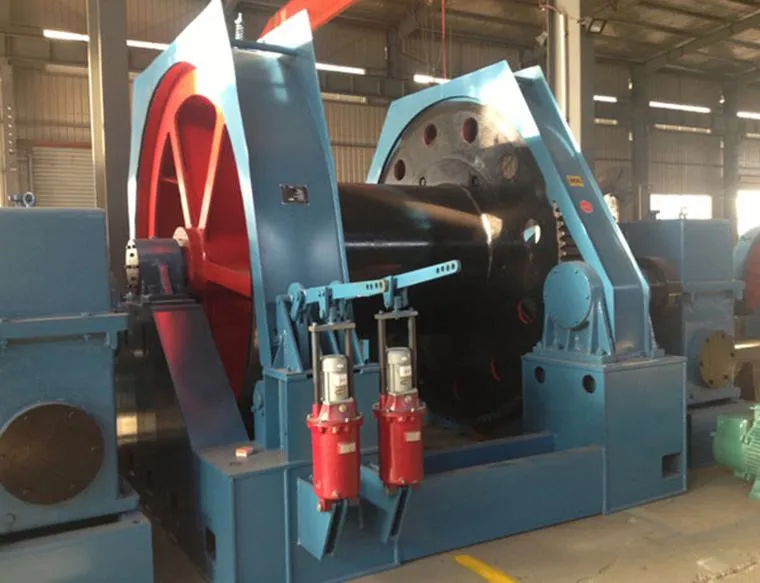

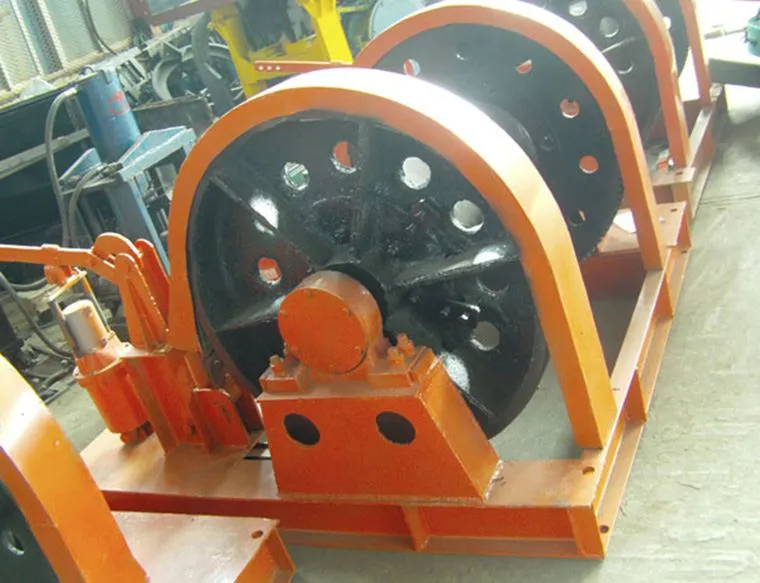

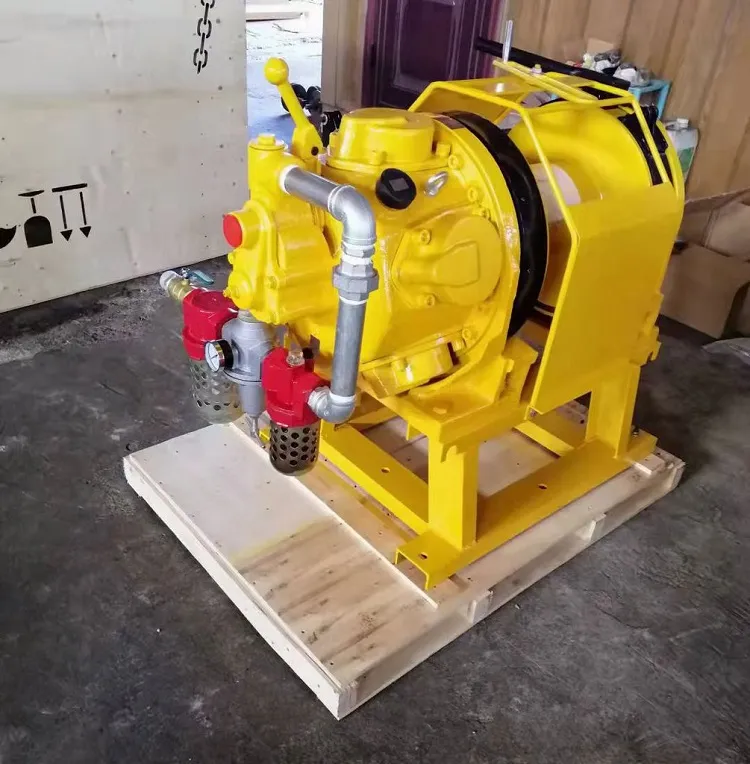

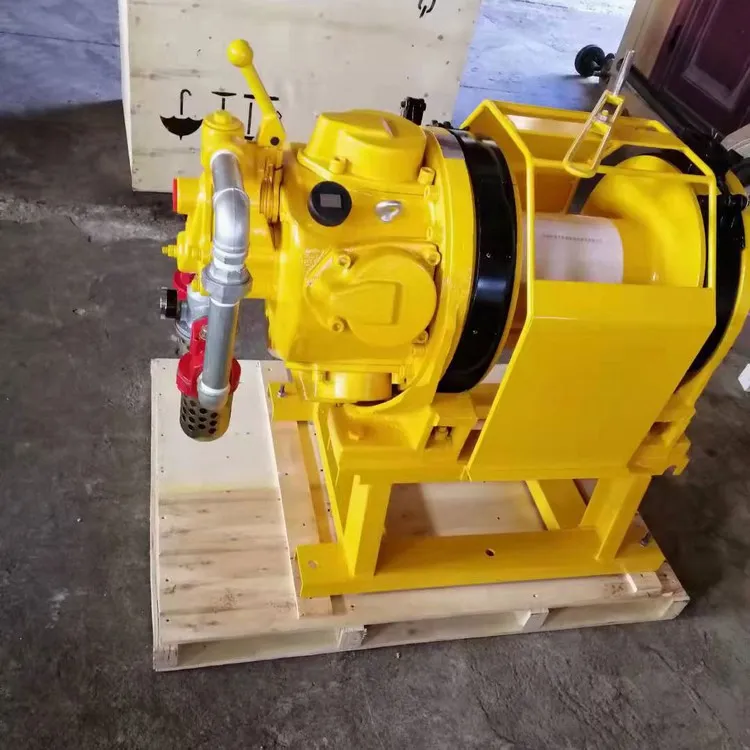

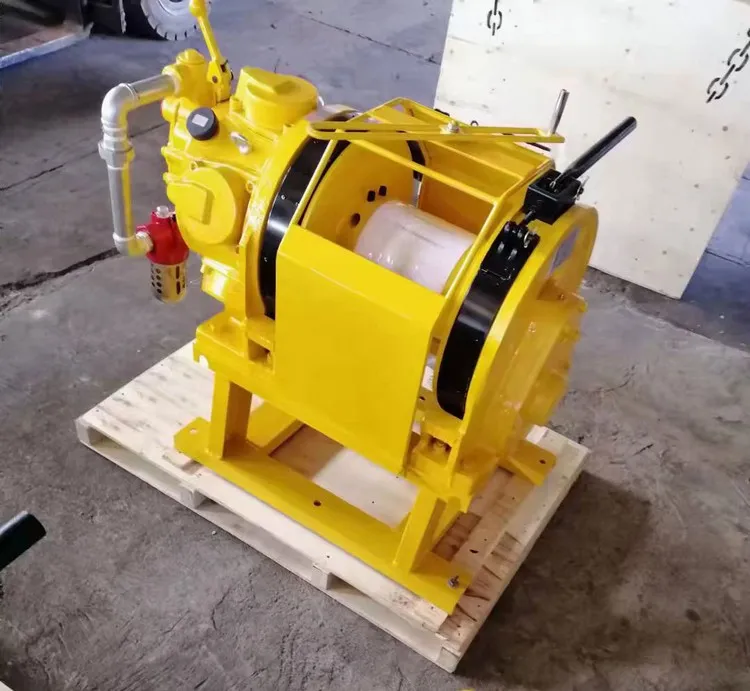

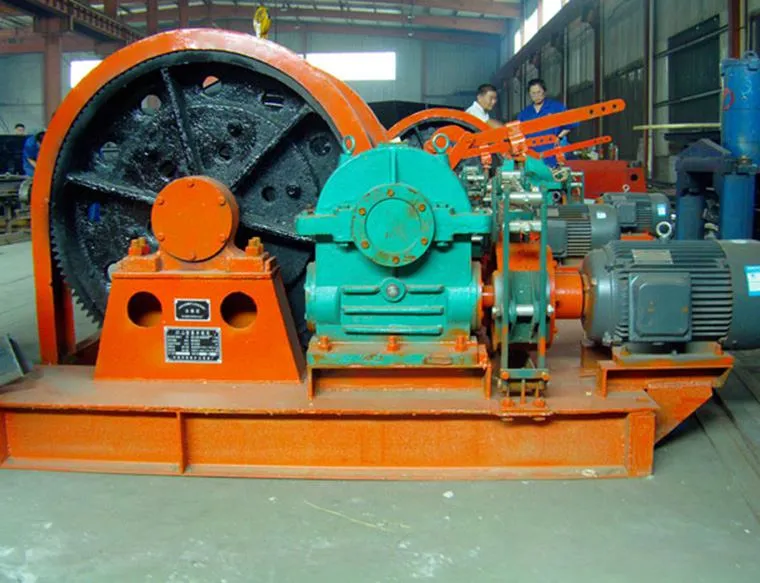

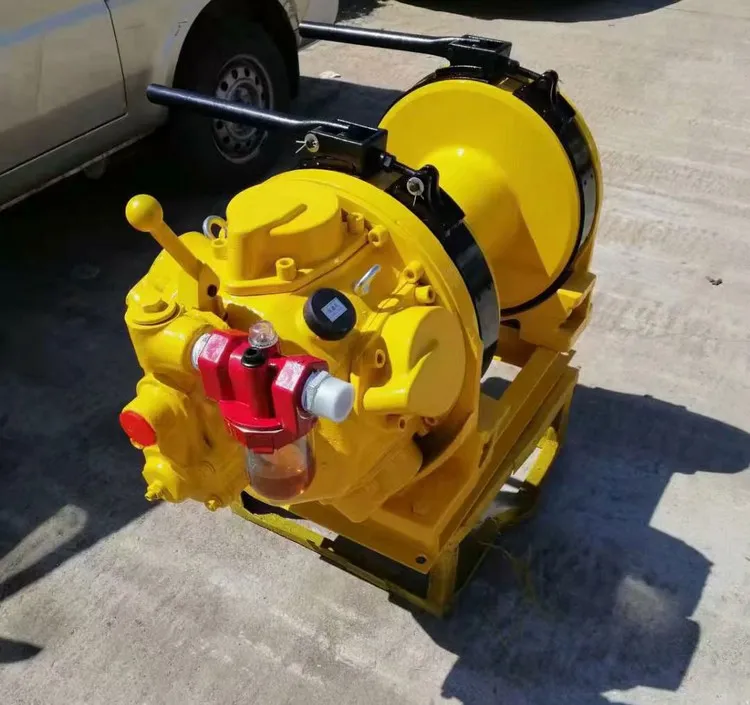

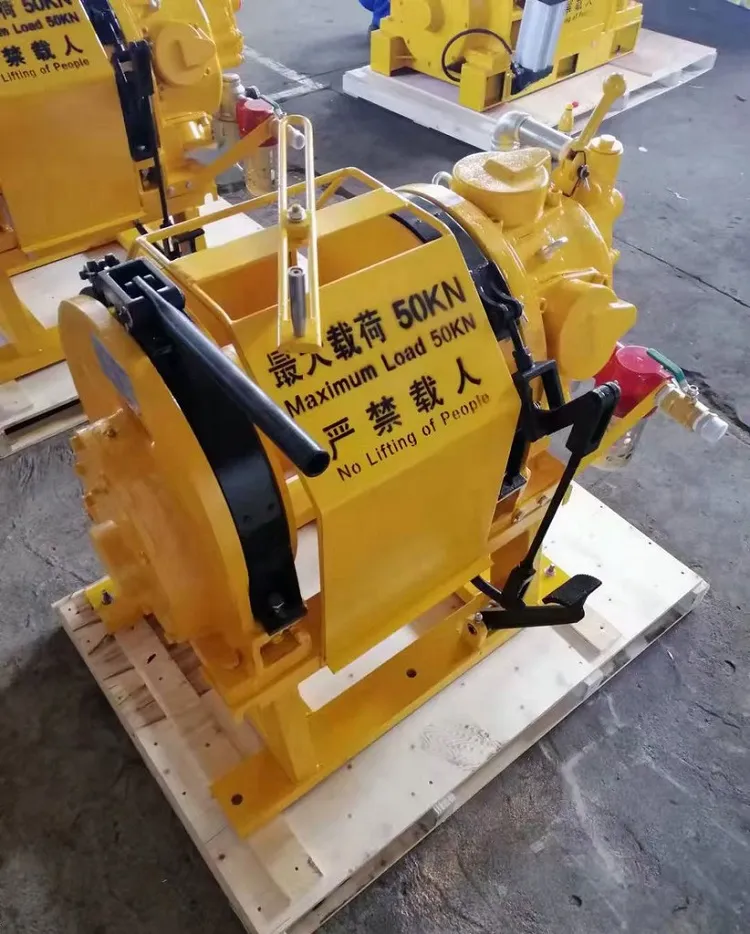

Detailed Photos

Our Advantages

Frequently Asked Questions

What are the primary applications for this explosion-proof winch?

It is primarily used for underground coal mining operations, tunnel lifts, and dispatching tramcars in gas-prone environments.

What are the benefits of the planetary gear drive system?

The planetary gear drive offers a compact structure, high rigidity, improved efficiency, and lower noise levels compared to standard gears.

Does this equipment meet safety certifications for mining?

Yes, the equipment is designed to meet national standards and carries CE certification for safe operation in hazardous mines.

How portable is the dispatching winch?

Thanks to its compact and masterfully engineered structure, the winch allows for effortlessly simple installation and relocation within mining roadways.

What voltage options are available for the motors?

The explosion-proof motors are typically designed for dual voltage support, such as 380V/660V, to accommodate different underground power systems.

What is the average static tension capacity?

Depending on the specific model, the average static tension can reach up to 300 KN, making it suitable for heavy-duty lifting and hauling.
