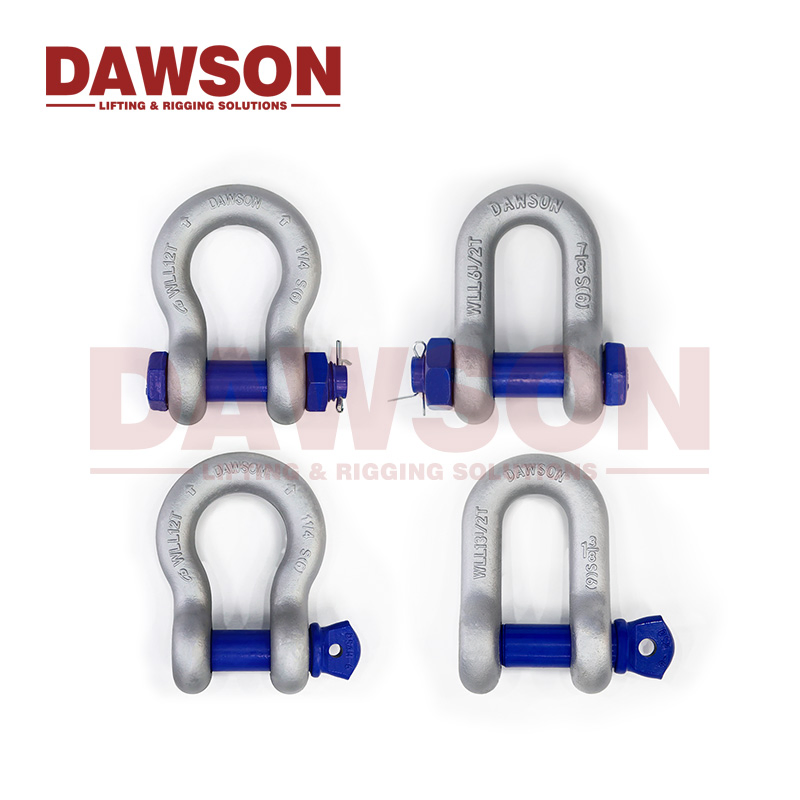

Dawson Hot DIP Galvanized Us Type Screw Pin Bow Shackle for Lifting

1 / 5

Dawson Hot DIP Galvanized Us Type Screw Pin Bow Shackle for Lifting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Product Overview

Model NO.

DG209

Usage

Industrial, Household, Lifting

Condition

New

Surface

Hot DIP Galvanized or Self Colored

Certificates

ISO, SGS, BV, CE

Specification

1/3-55T

Origin

China

HS Code

7326901000

🔍 Product Description

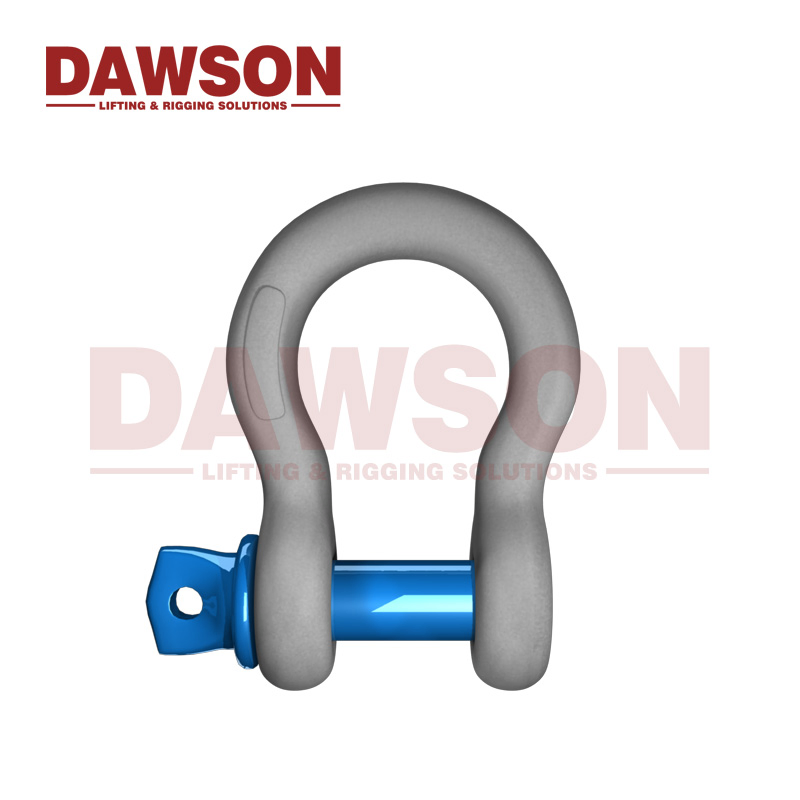

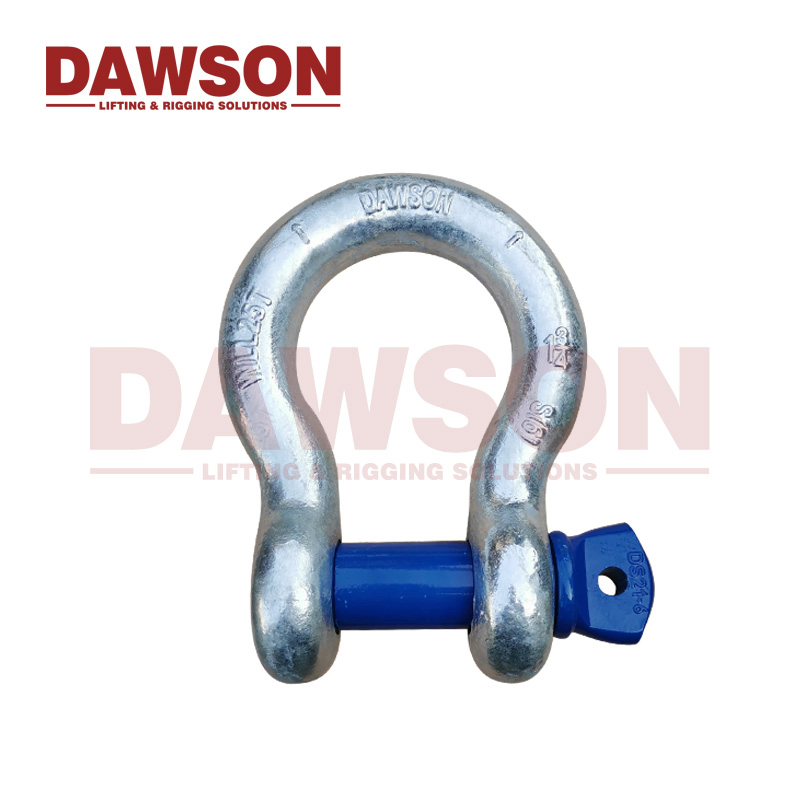

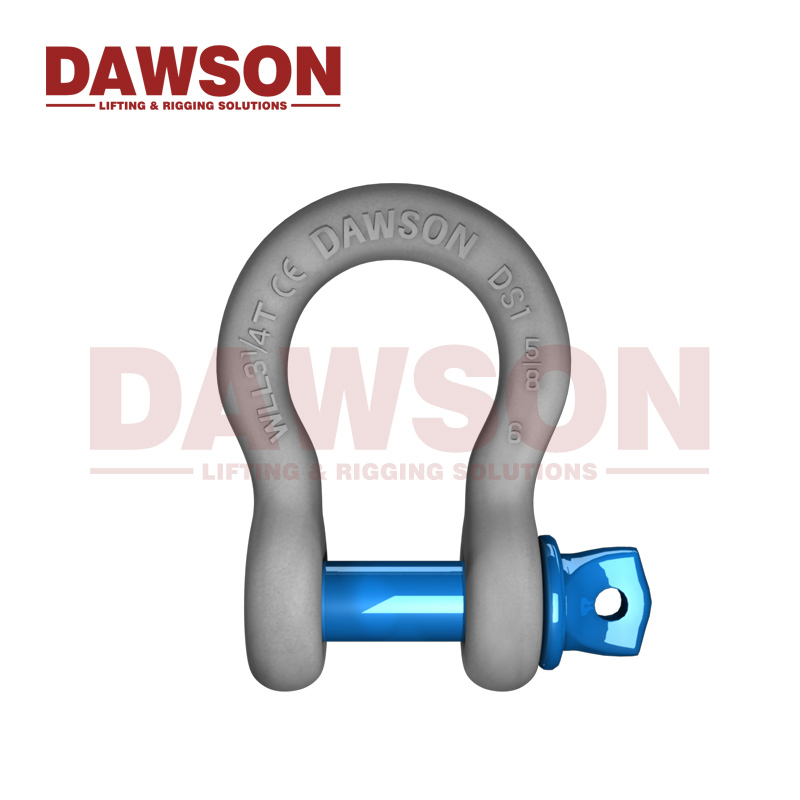

Hot Dip Galvanized US Type Screw Pin Bow Shackle for Lifting

Our anchor shackles feature screw collar pins and are forged from alloy steel for high tensile strength. These components meet US Federal Specifications and EN 13889:2003+A1:2008 standards.

Working Load Limit: Permanently embossed on every shackle.
Material: High tensile steel, Forged - Quenched and Tempered.
Size Range: Capacities from 1/3 thru 120 metric tons.
Rating: Fatigue rated for long-term safety.

📊 Technical Specifications

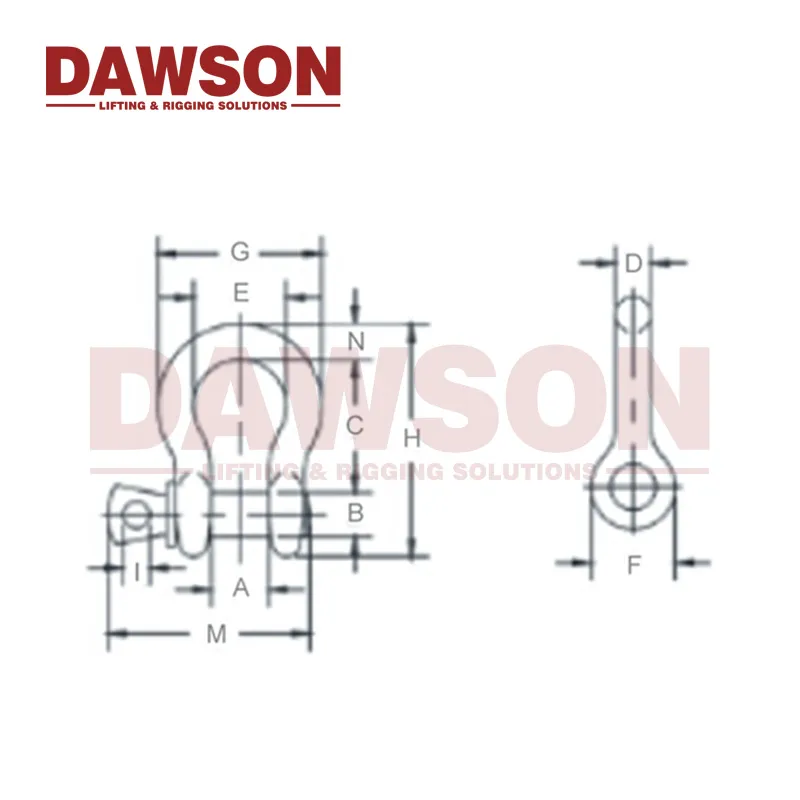

ITEM NO	Nominal Size (in.)	WLL (tons)	Dimensions (mm)					Weight (kg)
ITEM NO	Nominal Size (in.)	WLL (tons)	A	B	C	D	E	Weight (kg)
DG-AS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	0.03
DG-AS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	0.05
DG-AS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	0.09
DG-AS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	0.14
DG-AS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	0.33
DG-AS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	0.62
DG-AS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	1.07
DG-AS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	2.28

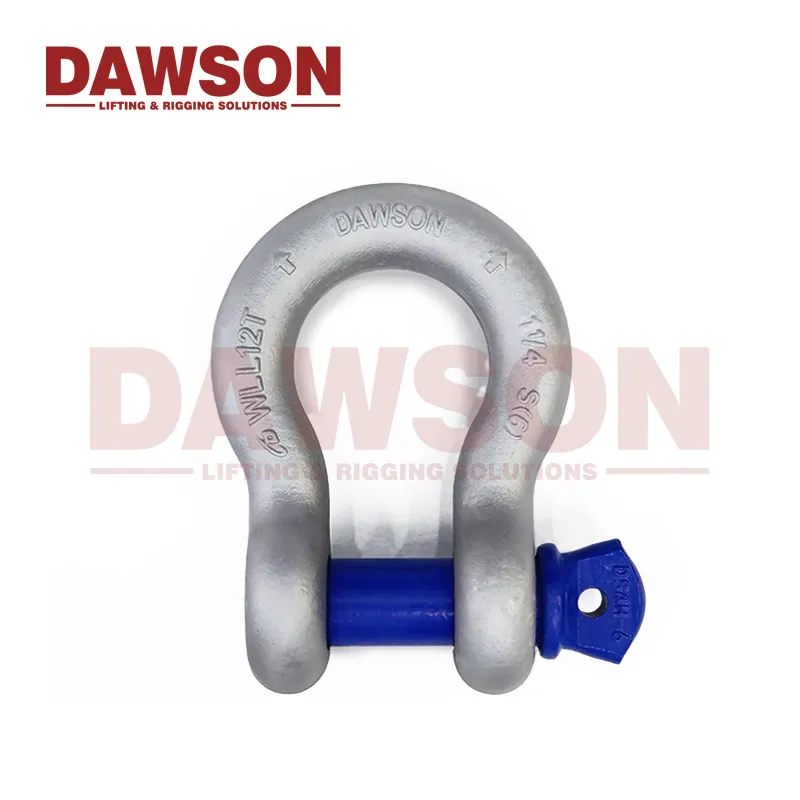

📷 Product Display

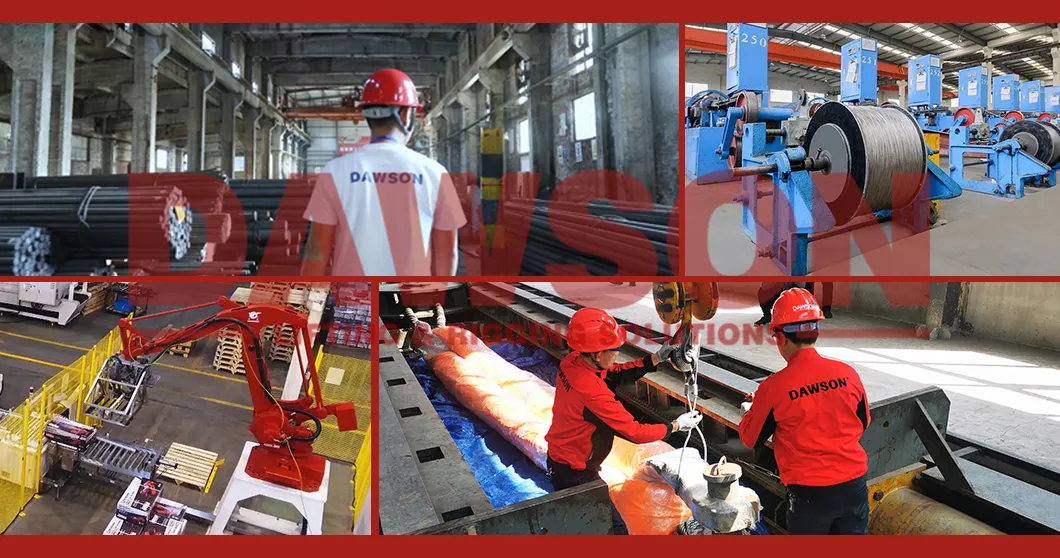

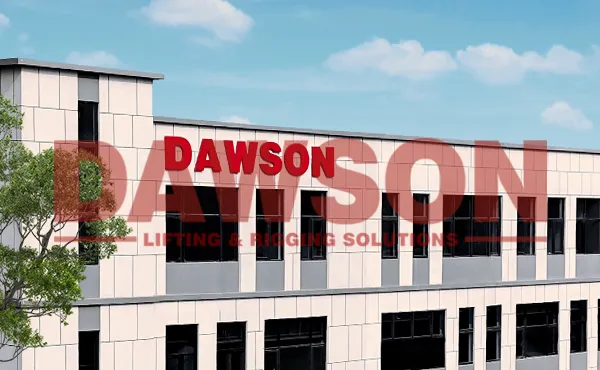

🏭 Production Capability

We are an ISO 9001 certified firm specializing in lifting and hoisting equipment, material handling, rigging hardware, and marine supplies. Our standardized operating procedures ensure high-quality production of wire ropes, chains, polyester slings, and ratchet straps delivered efficiently to global partners.

✔ Quality & Certification

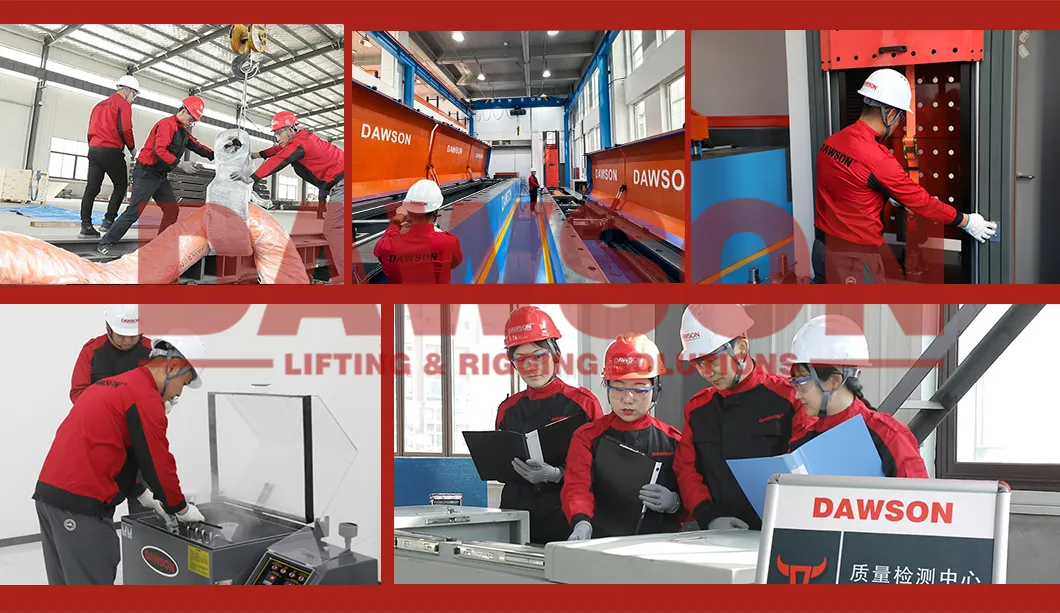

Most products are CE, TUV, and GS certified. Our marine hardware carries approvals from major societies including CCS, ABS, LR, DNV, BV, and GL. Rigorous testing is conducted to ensure compliance with international safety standards.

📦 Packaging & Logistics

❓ Frequently Asked Questions

Can I expect high-quality products?

Yes. All activities are accredited to ISO 9001. Our rigging hardware adheres strictly to US, DIN, JIS, BS, and AS standards, with many items carrying CE, GS, and marine class certifications.

Are free samples available?

Samples are free if the quantity is small or the value is low, provided the buyer covers express charges. For specific items, sample costs can be deducted from the first formal order.

What are the payment terms?

Standard terms are 30% T/T in advance and the balance against the copy of B/L for orders over US$10,000. Orders under US$10,000 require 100% advance payment.

How long is the typical lead time?

Lead time is usually between 15-40 days after the deposit. Shipping from China to Europe or the US West Coast typically takes about 20-22 days by sea.

What is the Minimum Order Quantity (MOQ)?

MOQ varies by product. As we primarily supply distributors with competitive pricing, we generally do not offer retail sales. Please contact us for specific item limits.

What range of products do you supply?

We offer a full range of rigging, marine, lifting, and lashing products, including anchor shackles, chain products, wire rope accessories, webbing slings, and cargo tie-downs.
