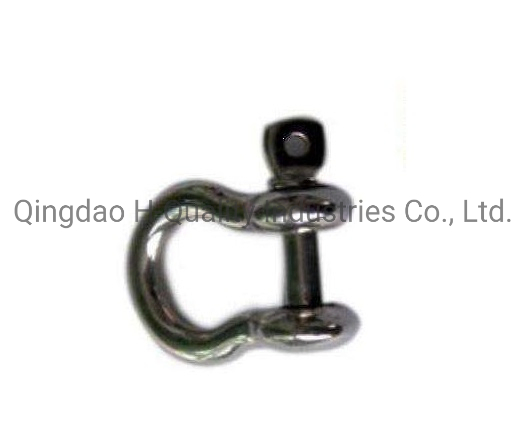

Drop Forged Screw Pin Anchor Shackle with or Without Collar

1 / 5

Drop Forged Screw Pin Anchor Shackle with or Without Collar

Customization:	Available
Material:	Steel
Shape:	Bow Type

Send Inquiry

Product Description

Basic Information

Model NO.

JIS Type

Usage

Marine

Color

Silver

Condition

New

Brand

H-Quality/OEM

Part No.

Rjas0050-Rjas0280

Size

5mm-28mm

WLL

90kgs-2500kgs

I.L.

19mm-115mm

N.W.

0.026kgs-2.65kgs

Transport Package

Packing in Cartons or Bags Then Into Pallet

Specification

ISO

Origin

China Mainland

HS Code

73269090

Capacity

1000t Per Month

Product Description

We provide a comprehensive range of high-quality shackles designed for demanding industrial and marine environments:

Drop forged US type load rated shackle 209, 210, 2130, 2150, 213, 215
Commercial grade US type shackle, screw pin anchor shackle, chain shackle
European type large bow and dee shackle
Trawling chain shackle with square head
Large bow and large dee BS3032 shackle

Inner Packing: Carton

Part No	Size (mm)	W. L. L. (kgs)	I. L. (mm)	N. W. (kg)
RJAS0050	5	90	19	0.026
RJAS0060	6	150	25	0.028
RJAS0080	8	250	32	0.065
RJAS0100	10	400	38	0.080
RJAS0120	12	600	51	0.200
RJAS0160	16	800	64	0.495
RJAS0200	20	1000	76	0.800
RJAS0220	22	1500	89	1.260
RJAS0250	25	2000	100	1.900
RJAS0280	28	2500	115	2.650

Usage	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
Packing	Carton and pallet / by customer requirements
Delivery time	3-20 days after order confirmation
Payment term	T/T, L/C
Business type	Manufacturer, trading
Certifications	ISO9001, CE, BV, SGS
Notes	Special specifications and marks can be made according to customers requirements
Main products	Aluminum Sleeves, Copper Sleeves, Steel Sleeves, Eye bolts, Shackles, Turnbuckles, Wire Rope Clips, Load binders, Lifting Hooks, Connecting Links, Master Links, Swivels and other rigging hardware.

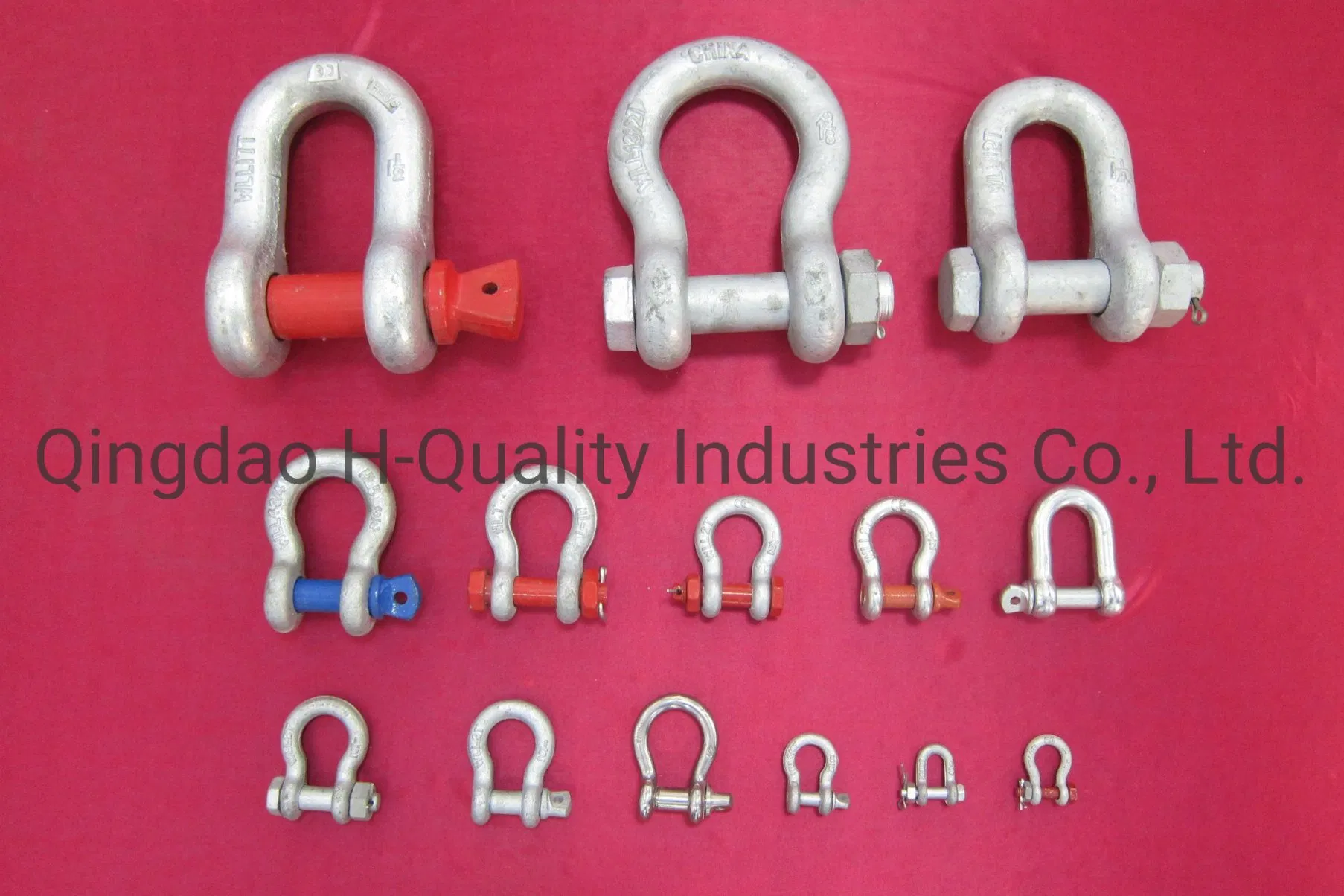

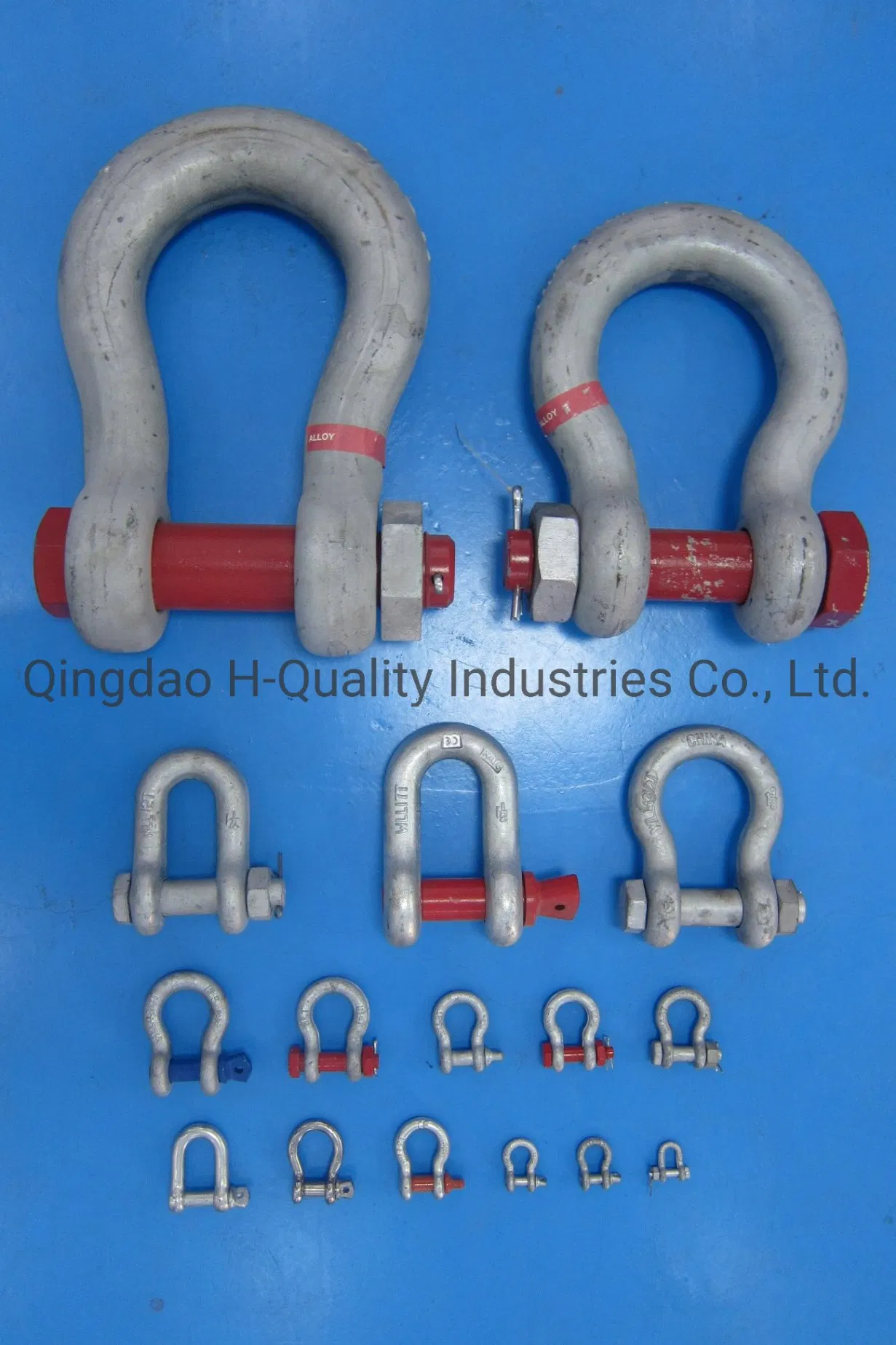

Product Gallery

Frequently Asked Questions

What's your advantage compared to your competitor?

We are very strict in the products quality. We have superior service, competitive price and on-time delivery.

How to place an order?

Please send us your purchase order via our formal contact channels or call our service department directly.

How long can I get the sample?

If we have the product in stock, we can send it to you once we get your contact information. Samples are typically sent via international express like DHL, UPS, TNT, or FEDEX.

How can I order products without import knowledge?

We can send products to you via international express, or our shipping agent can arrange a complete sea/air shipment for you.

Can you provide customized markings on the shackles?

Yes, special specifications and custom marks can be manufactured according to specific customer requirements.

What certifications do your products hold?

Our products are fully certified and compliant with ISO9001, CE, BV, and SGS standards to ensure the highest safety and quality.
