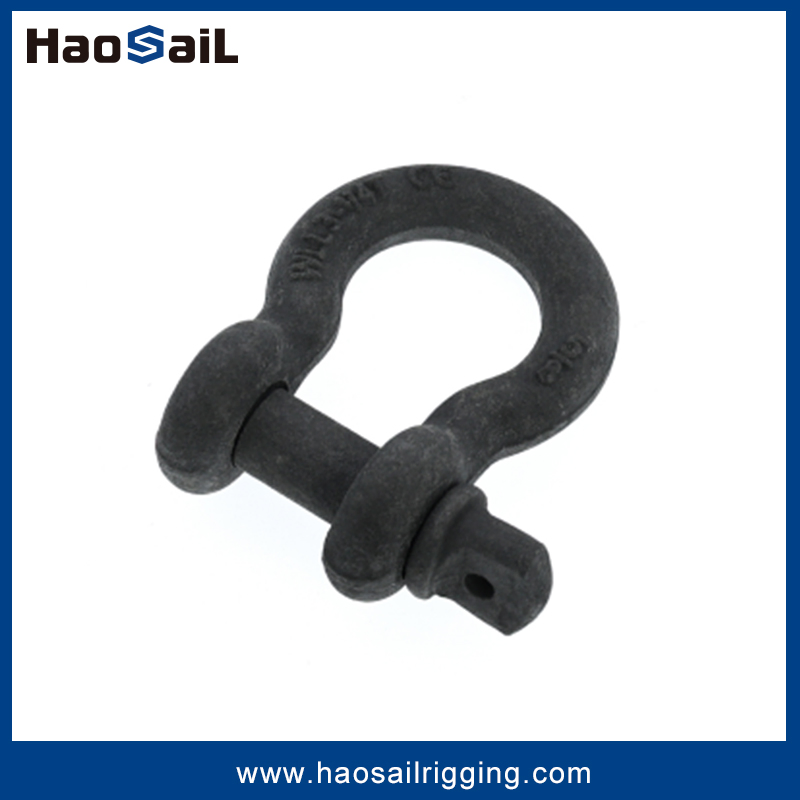

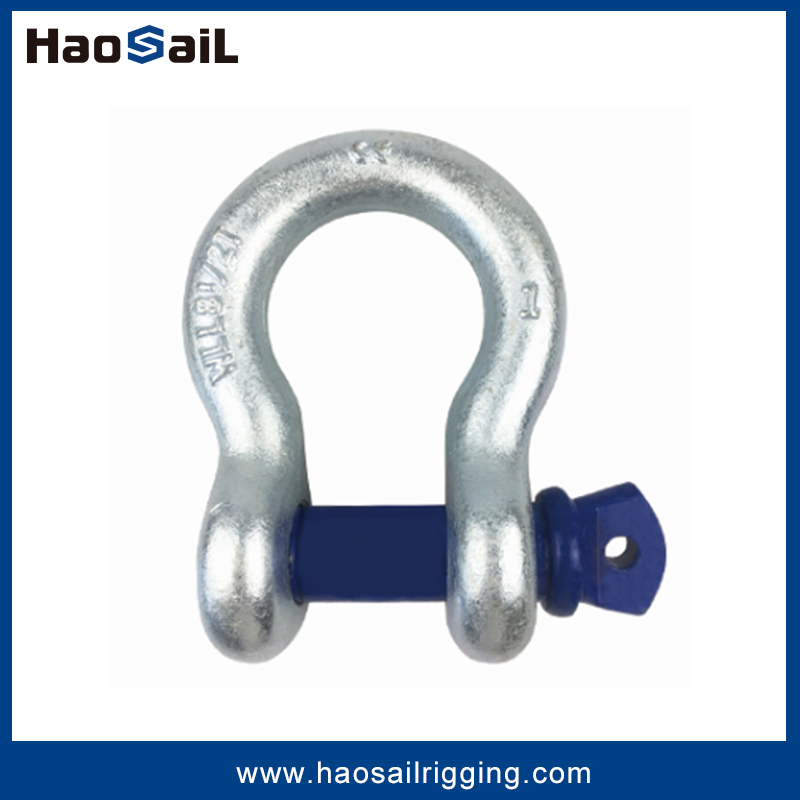

G209 Us Type Bow Shackle with Screw Pin

Overview & Basic Info.

Model NO.

G209 Shackle

Usage

Industrial

Color

Silver or as Requested

Technology

Drop Forged

Surface

Electric Galvanized, Hot DIP Galvanized

WLL

0.5t-120t

Safety Factor

4:1 or 6:1

Trademark

As Requested

HS Code

7326901000

Origin

China

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 20.00cm

Gross Weight

3.000kg

Product Description

The US type bow shackle is a crucial component in various industries, especially in the fields of rigging, lifting, and marine applications. It is designed to connect different parts of a rigging system or to secure objects during lifting and towing operations.

Structure and Design:
• Bow shape: The bow provides a large and smooth surface area for attaching ropes, chains, or other rigging components. This design allows for even distribution of forces.
• Pin or Bolt: Equipped with a pin or bolt that passes through the two ends. Available as screw pins for easy adjustment or bolt pins for heavy-duty applications.

Materials:
• High-Strength Steel: Made of high-strength steel alloys offering excellent tensile strength and durability.
• Alloy Additives: Includes chromium, nickel, and molybdenum to enhance toughness, hardness, and resistance to wear and tear.

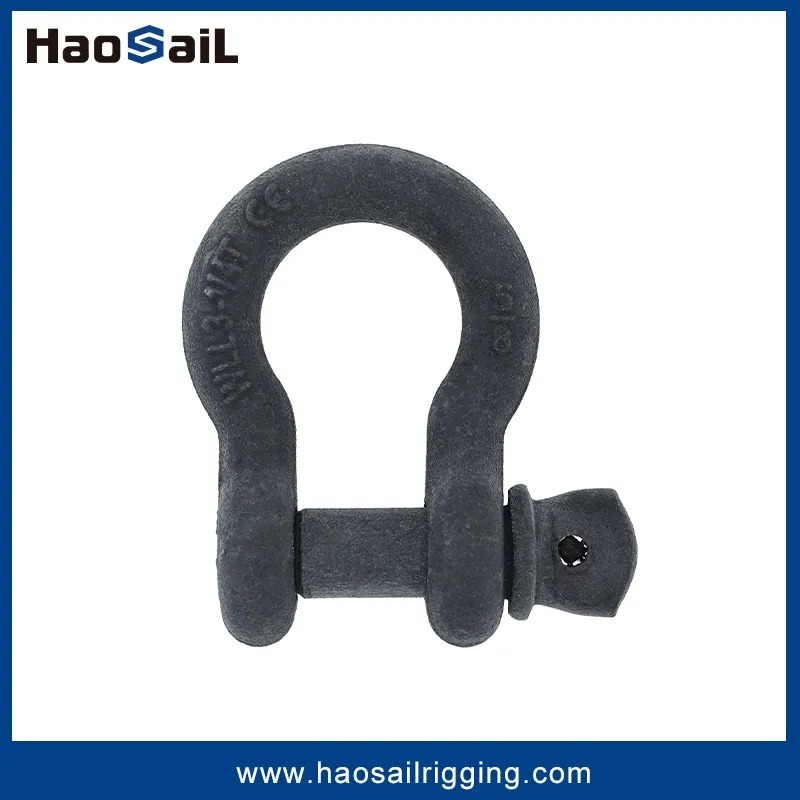

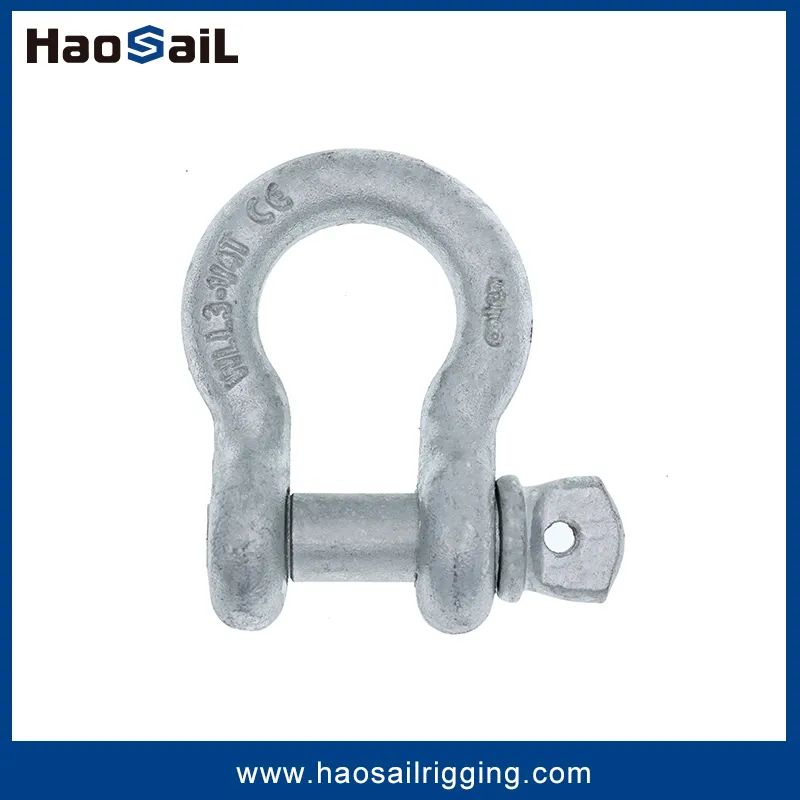

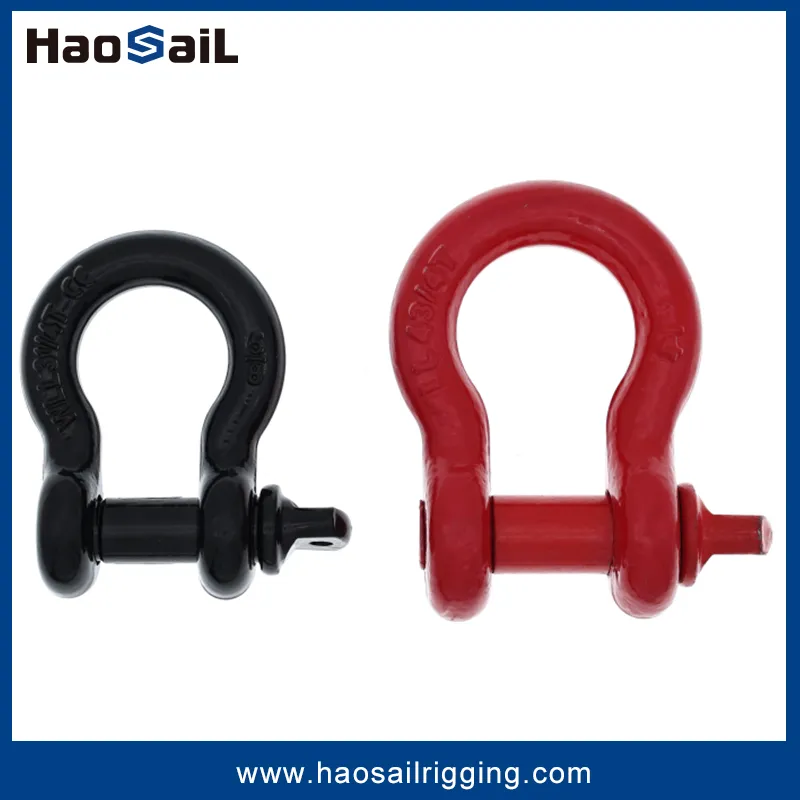

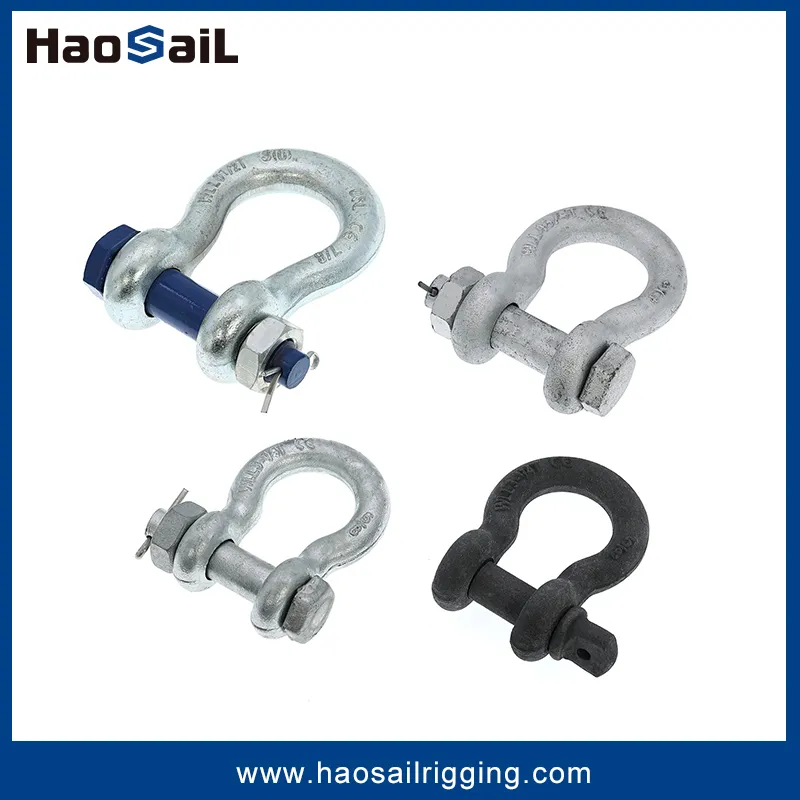

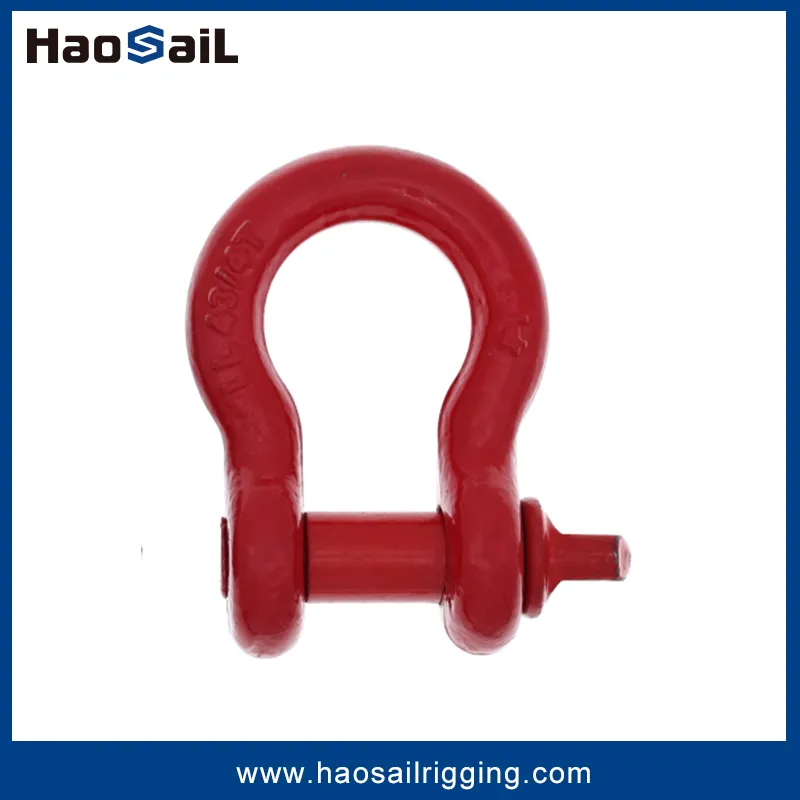

Detailed Photos

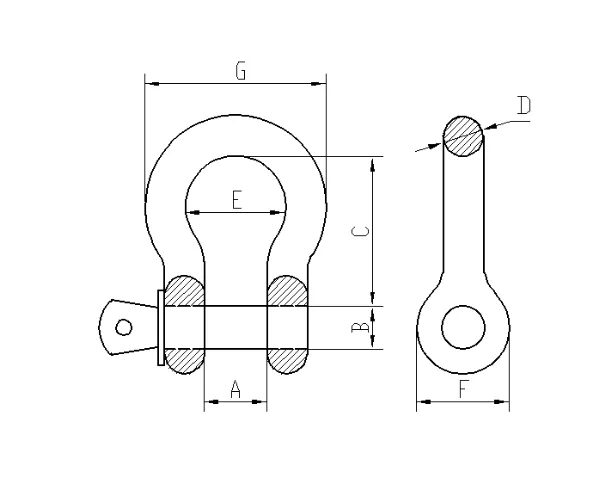

Product Parameters

Stock no.	Size (in)	WLL(t)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)
HS2010101	3/16	0.33	9.65	6.35	22.4	4.85	15.2	14.2	24.9	0.03
HS2010102	1/4	0.5	11.9	7.85	28.7	6.35	19.8	15.5	32.5	0.05
HS2010103	5/16	0.75	13.5	9.65	31	7.85	21.3	19.1	37.3	0.09
HS2010104	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	0.14
HS2010106	1/2	2	20	16	45	12	33	29	58	0.3
HS2010108	3/4	4.75	32	22	71.5	19	51	46	89	1

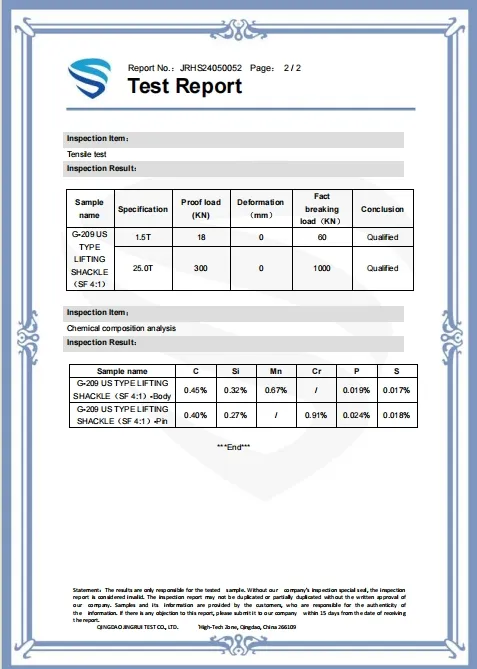

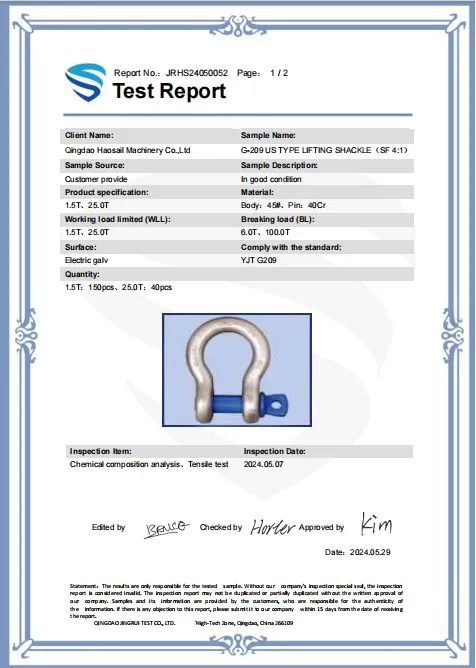

Certifications

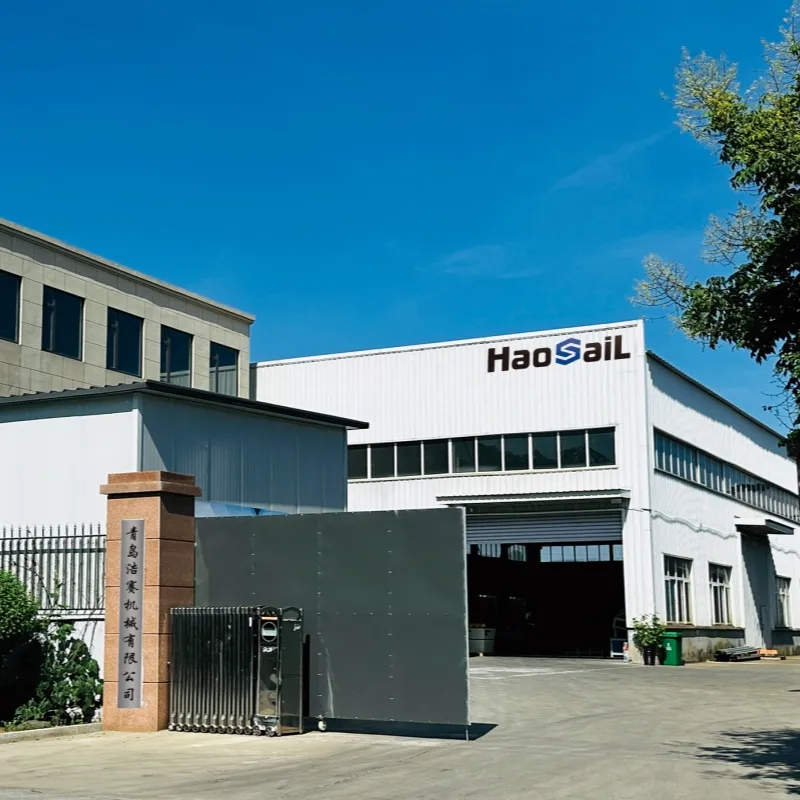

Company Profile

As the leading lifting and rigging hardware supplier, we provide integrated supply chain solutions on superior lifting & rigging products, including technical design, quality testing management and after sales services. Our main products include: Lifting chain and accessories (G80/G100), chain slings, lifting hooks, rigging hardware (shackles, turnbuckles, eye bolts), and lifting equipment.

Our Advantages

🛡️
Leading Manufacture: Over 20 years of production experience in high-quality forged products.
⚙️
Strict Quality Control: Committed to exceeding customer expectations with high-standard testing.
🌐
Supply Chain Management: Optimized quality control and risk management to achieve higher competitiveness.
👨‍🔧
Professional Service: Dedicated support team providing investigations and solutions within 24-48 hours.

Frequently Asked Questions

1. What types of rigging products do you provide? We provide a wide range of rigging products, including wire rope rigging, synthetic fiber lifting belt rigging, chain rigging, hooks, shackles, etc.

2. What materials are the products made of? Our products are made from high-quality materials such as carbon structural steel, alloy steel (G80/G100 standards), and high-strength synthetic fibers.

3. How do you ensure the quality of your rigging products? We have established a complete quality management system, including tensile testing and flaw detection, to ensure reliable product quality.

4. Can you provide customized rigging services? Yes, our professional technical team can tailor products based on your specific requirements and working conditions.

5. How long is the delivery time? Regular inventory items ship within 5 working days. Custom production items generally take 15-30 days depending on raw material supply.

6. How can I get technical support for problems during use? You can reach out to our service team, and our staff will provide technical guidance and answers as soon as possible.
