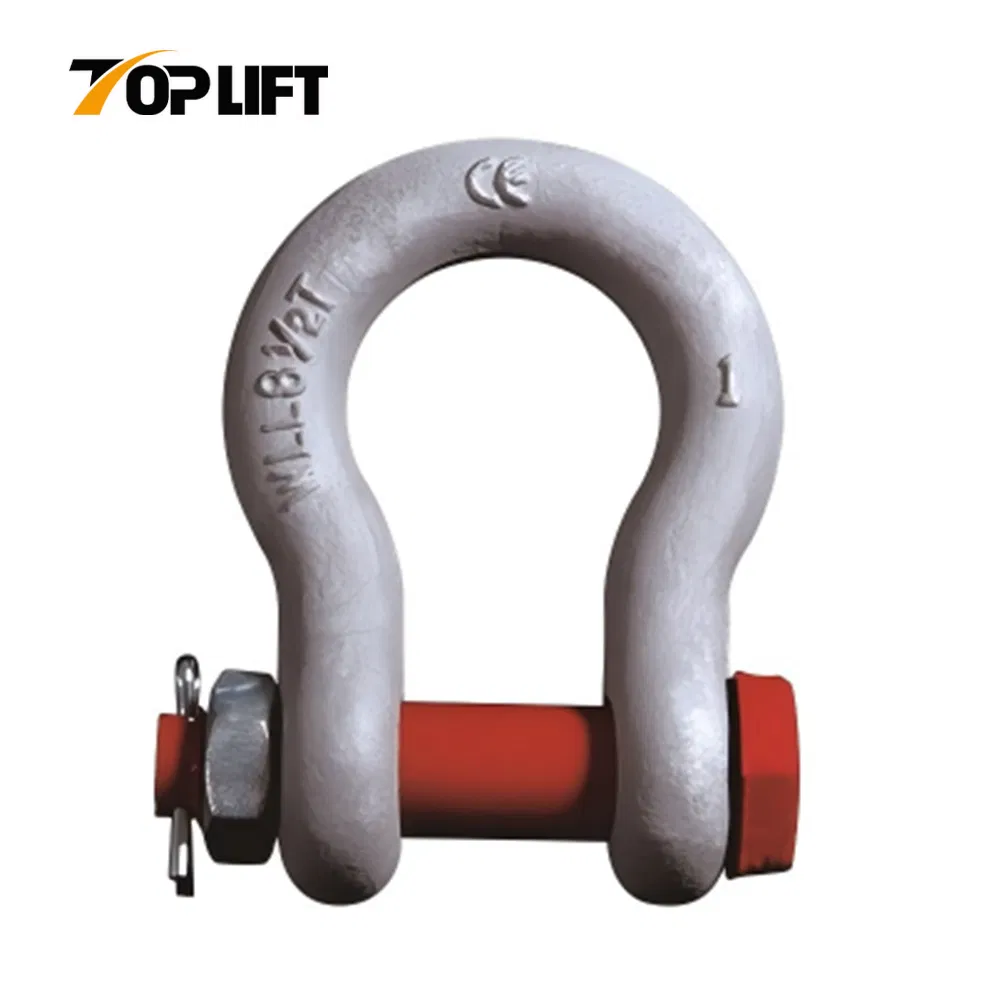

Rigging Hardware G-2130 Forged Alloy Steel High-Strength Bolt Type Bow Shackle

Technical Features:

Forged super alloy steel - Quenched and Tempered
Individually proof tested at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20,000 cycles
Breakage test performed
100% magnaflux crack detection
Available colors: Red, Yellow

Shackle Application

Bolt Type Shackles are designed for permanent or long-term applications. Please note that the working load limit will reduce when used for side loading applications. Ensure the screw pin is tight before each pick. For both Screw Pin Shackles and Bolt Type Shackles, side loading affects the overall capacity.

Specifications Table

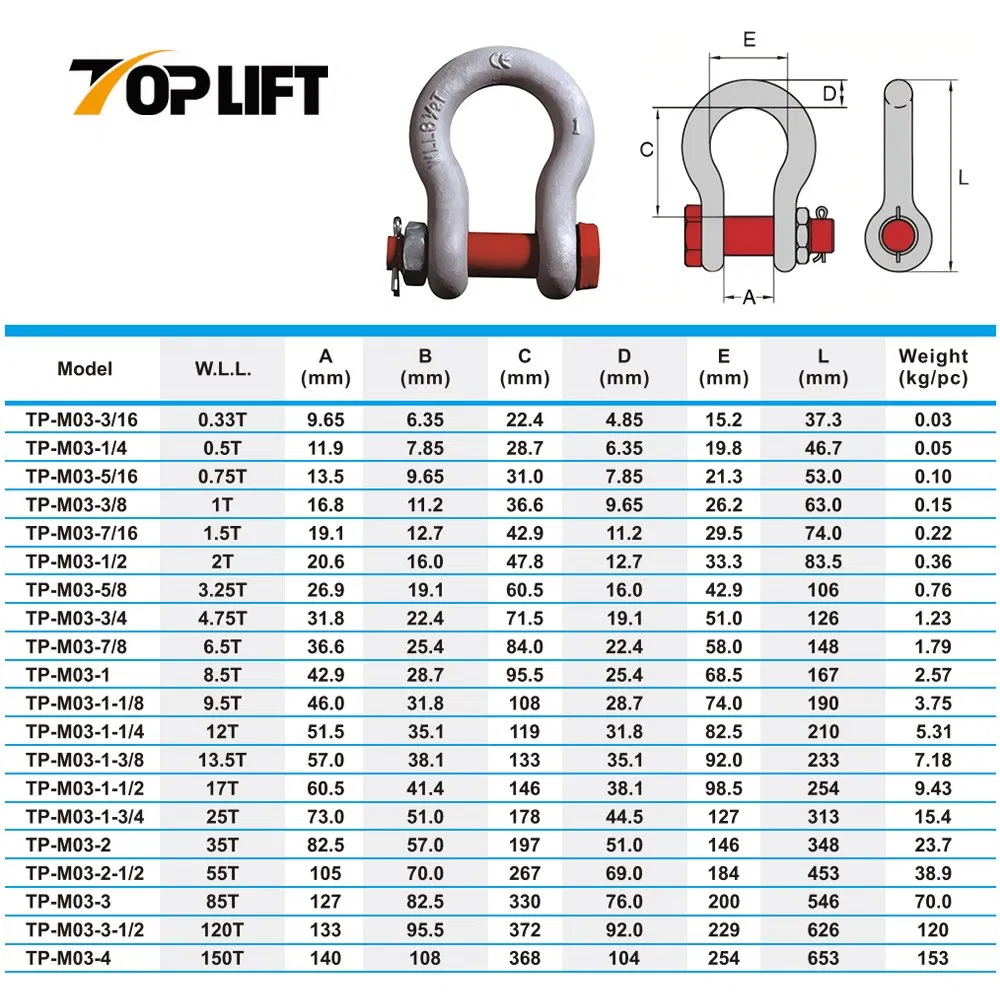

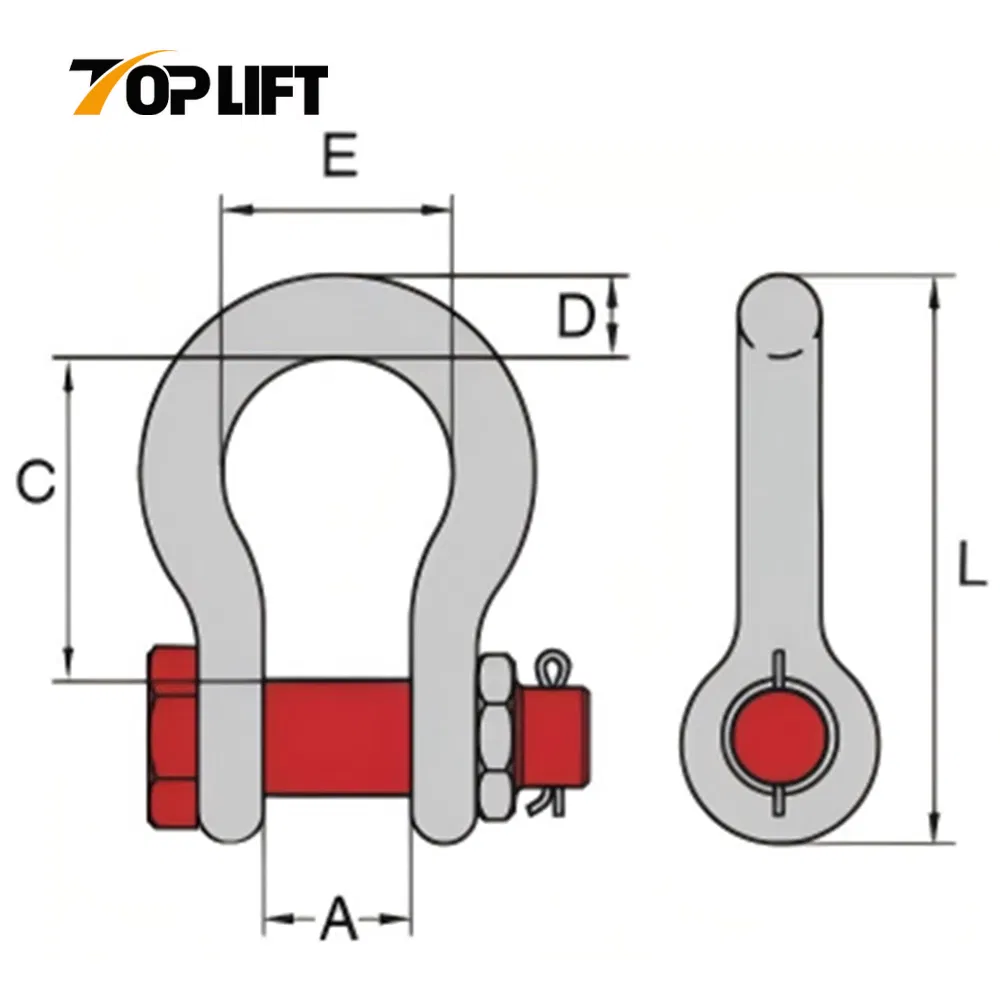

Model	W.L.L (T)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	L (mm)	Weight (kg/pcs)
TP-M02-3/16	0.33	9.65	6.35	-	4.85	19.35	-	0.022
TP-M02-1/4	0.5	11.9	7.85	22.5	6.35	26.4	40.4	0.05
TP-M02-5/16	0.75	13.5	9.65	26.2	7.85	29.5	48.5	0.08
TP-M02-3/8	1	16.8	11.2	31.8	9.65	35.8	58.5	0.13
TP-M02-7/16	1.5	19.1	12.7	36.6	11.2	41.4	67.5	0.20
TP-M02-1/2	2	20.6	16.0	41.4	12.7	46.0	77.0	0.27
TP-M02-5/8	3.25	26.9	19.1	51.0	16.0	58.5	95.5	0.57
TP-M02-3/4	4.75	31.8	22.4	60.5	19.1	70.0	115	1.20
TP-M02-7/8	6.5	36.6	25.4	71.5	22.4	81.0	135	1.43
TP-M02-1	8.5	42.9	28.7	81.0	25.4	93.5	151	2.15
TP-M02-1-1/8	9.5	46.0	31.8	91.0	29.5	103	172	3.06
TP-M02-1-1/4	12	51.5	35.1	100	32.8	115	191	4.11
TP-M02-1-3/8	13.5	57.0	38.1	111	35.1	127	210	5.28
TP-M02-1-1/2	17	60.5	41.4	122	38.1	137	230	7.23
TP-M02-1-3/4	25	73.0	51.0	146	44.5	162	279	12.1
TP-M02-2	35	82.5	57.0	172	51.0	184	312	19.2
TP-M02-2-1/2	55	105	70.0	203	66.5	238	377	32.5

Frequently Asked Questions

What are the primary uses for Bolt Type Shackles?

Bolt Type Shackles are specifically designed for permanent or long-term applications where a more secure connection than a standard screw pin is required.

How is the quality of these rigging products controlled?

Quality is maintained through high-quality steel selection, standardized production processes, 100% finished product testing, and adherence to ISO Quality Management Systems. Third-party inspections are also supported.

What safety tests are performed on the shackles?

Each shackle undergoes a proof test at 2.5 times the Working Load Limit (WLL), fatigue testing at 1.5 times the WLL for 20,000 cycles, breakage tests, and 100% magnaflux crack detection.

Does side loading affect the Working Load Limit?

Yes, when used in side-loading applications, the Working Load Limit of both Screw Pin and Bolt Type Shackles will be reduced.

What materials and finishes are available?

The bodies are made from 45# Carbon Steel and pins from Alloy Steel. Surface finishes include Electro Galvanized and Hot-DIP Galvanized. Shackles are typically available in Red or Yellow colors.

Can you handle custom-shaped rigging hardware?

Yes, with a dedicated technical team and extensive experience in the rigging field, we are proficient in custom-made and shaped products to meet specific lifting requirements.
