G209 Lifting Rigging Marine Hardware High Strength Forged Alloy Steel Screw Pin Bow Chain Anchor Shackle

1 / 5

G209 Lifting Rigging Marine Hardware High Strength Forged Alloy Steel Screw Pin Bow Chain Anchor Shackle

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

SF-M04-3/16

Usage

Industrial, Lifting

Color

Silver

Condition

New

Capacity

0.33 Ton to 55 Ton

Surface

Galvanized / Hot Dipped

Safety Factor

4:1 / 6:1

Pin Color

Red / Yellow / Customized

Package Size

54.00cm * 27.00cm * 33.00cm

Gross Weight

150.000kg

⚙️ Product Description

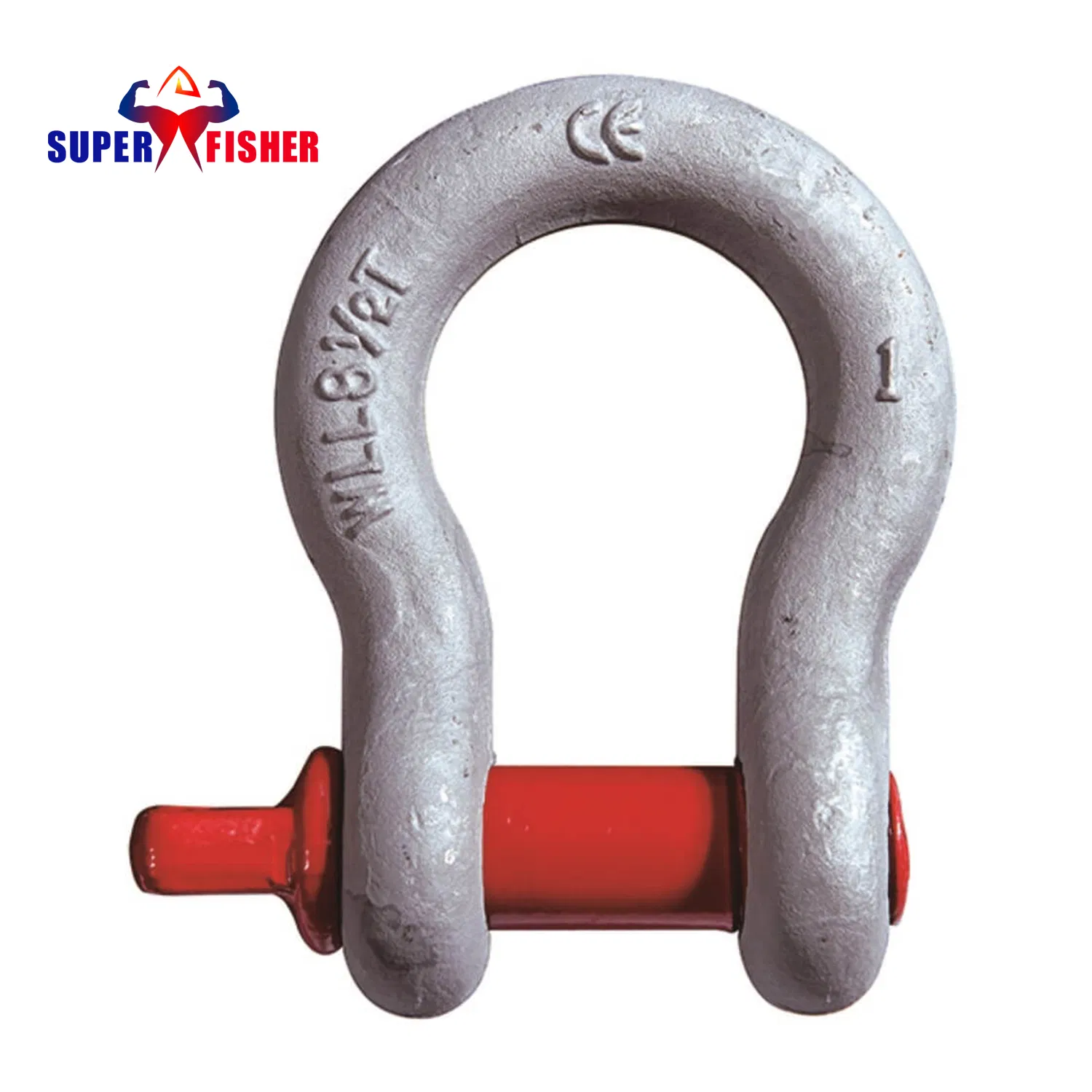

G209 High Strength Screw Pin Bow Shackle

WLL: 0.33 Ton - 55 Ton

Shackles are forged alloy steel with alloy pin.
Size and Working Load Limit permanently shown on each shackle.
OEM embossed Logo is available.
Material: Carbon steel, Alloy steel, SS steel
Surface treatment: Hot dipped galvanized, Electro galvanized, Color painted, Self colour
Technology: Drop forged, Polished
Application: Wire rope slings, Industrial crane rigging onboard large ships, clipping and mountaineering harness.

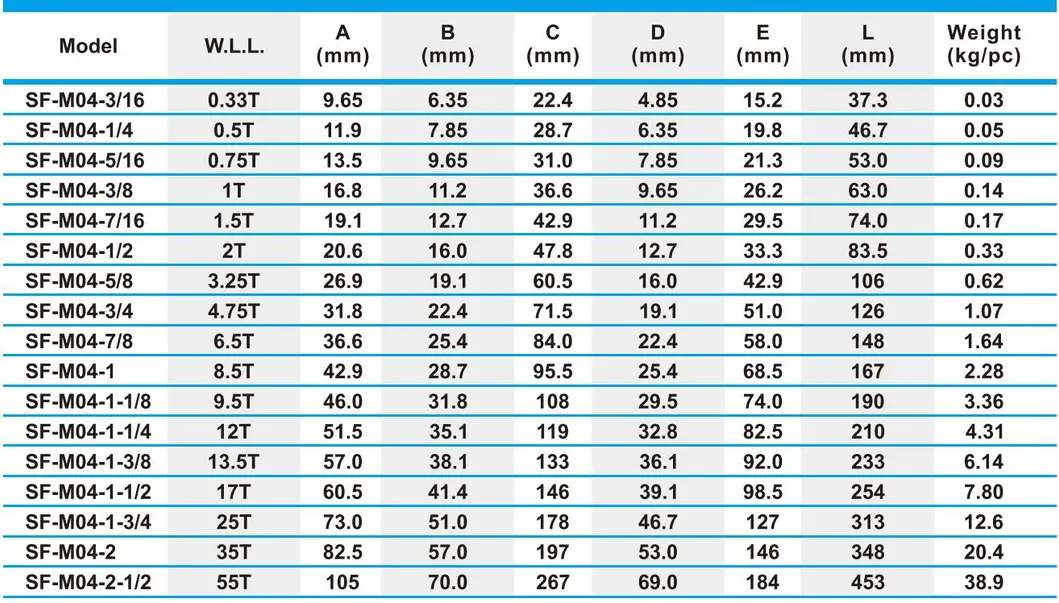

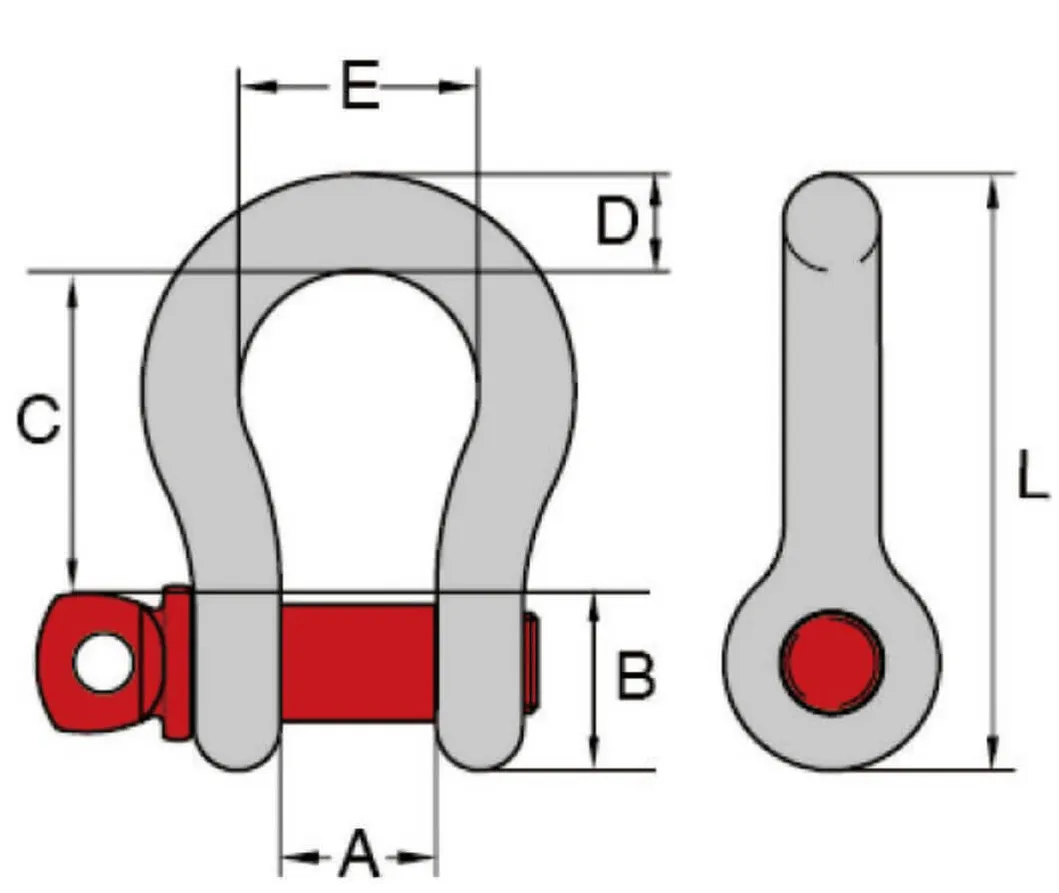

📸 Detailed Photos & Specifications

Note:

* When used for side loading applications, the working load limit will reduce.

* Tight screw pin before each pick.

* Max Proof Load is 2.2 Times the Working Load Limit, Min Break Strength is 6 Times the WLL.

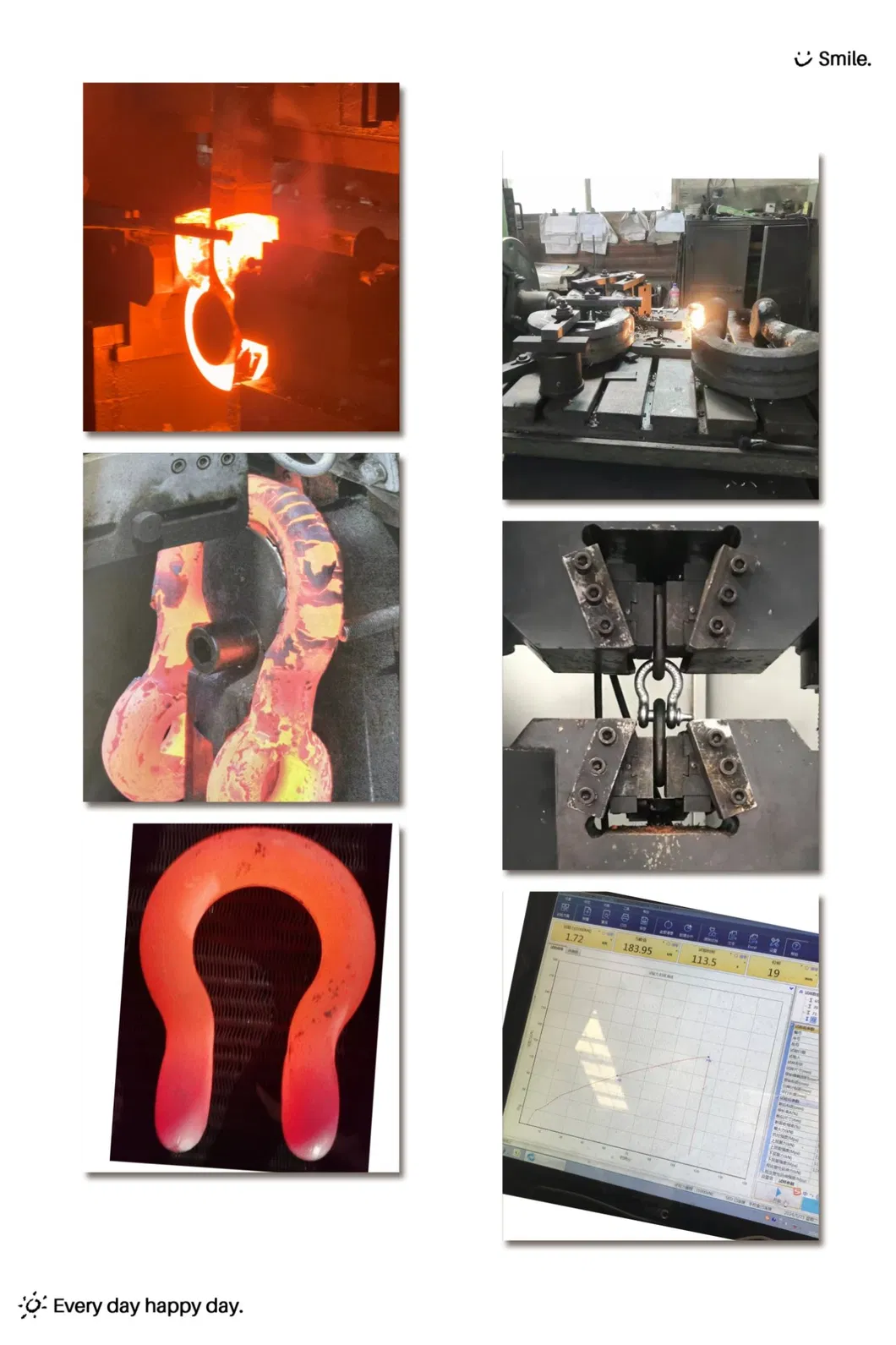

🛠️ Production & Testing

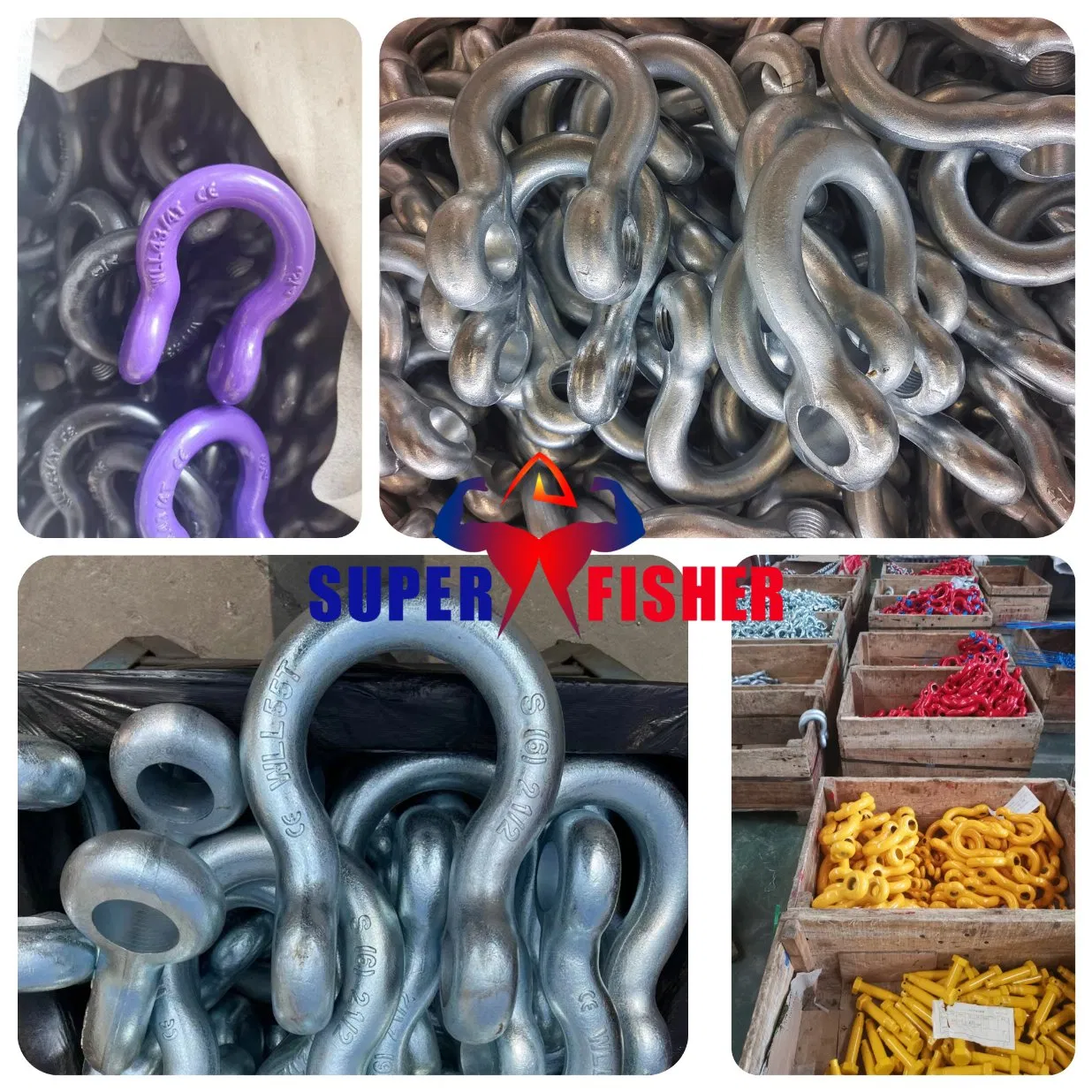

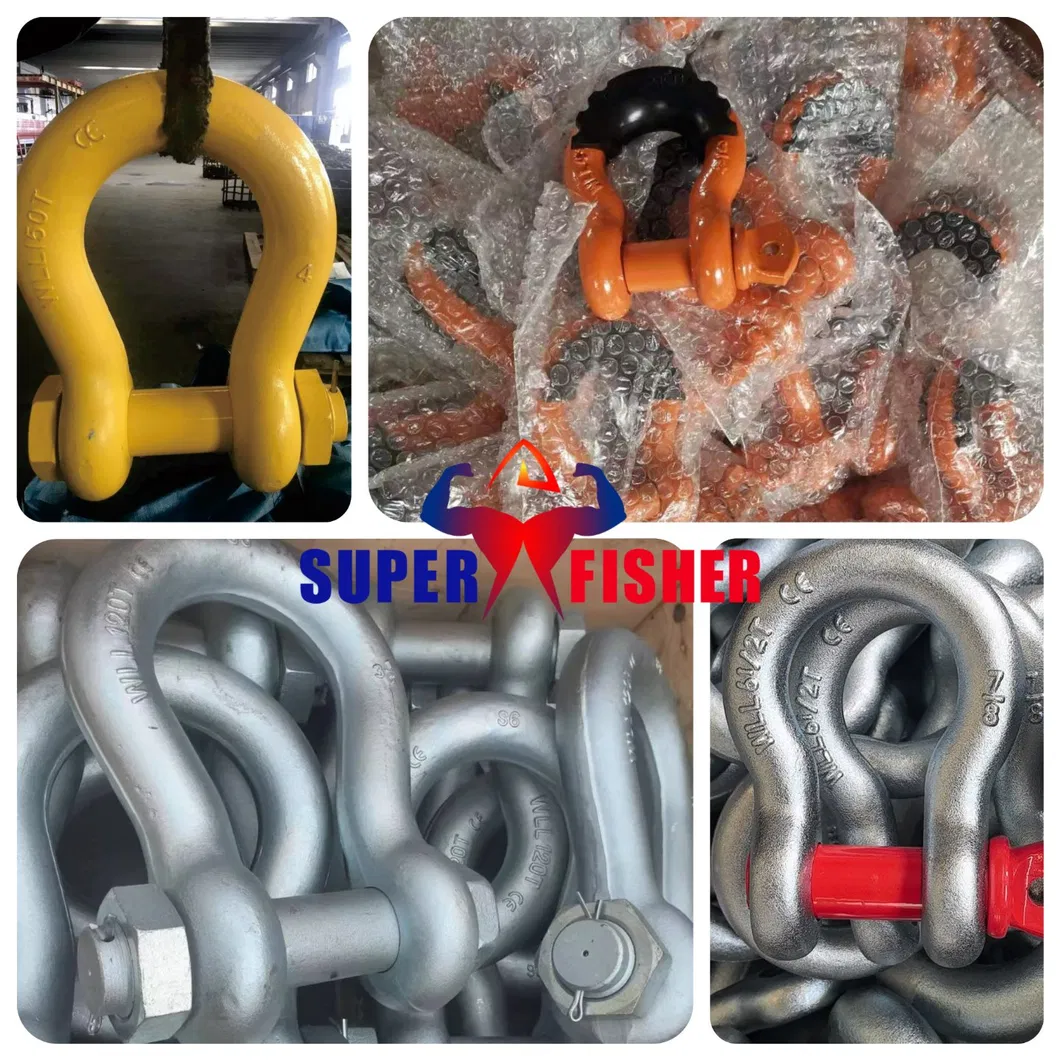

🌟 Our Products Display

📜 Certifications

Frequently Asked Questions

Q1: What is the maximum capacity of the G209 bow shackle? A: The Working Load Limit (WLL) ranges from 0.33 Ton up to 55 Ton, depending on the specific model and size.

Q2: What materials are used in manufacturing these shackles? A: These shackles are manufactured using high-quality Carbon steel, Alloy steel, or Stainless steel, featuring drop-forged technology for maximum strength.

Q3: What surface treatments are available for corrosion resistance? A: We offer Hot Dipped Galvanized, Electro Galvanized, Color Painted, and Self Colour finishes to suit different environmental requirements.

Q4: Does side loading affect the Working Load Limit? A: Yes, when used for side loading applications, the working load limit will be reduced. It is important to consult the safety guidelines for specific reduction factors.

Q5: What is the safety factor of the G209 shackle? A: The shackles are designed with a safety factor of either 4:1 or 6:1. The minimum break strength is 6 times the WLL.

Q6: Are the pins available in different colors? A: Yes, pins are commonly available in Red or Yellow, and we can also provide customized colors upon request.
